Brass Rectangular Tubes
Product Overview

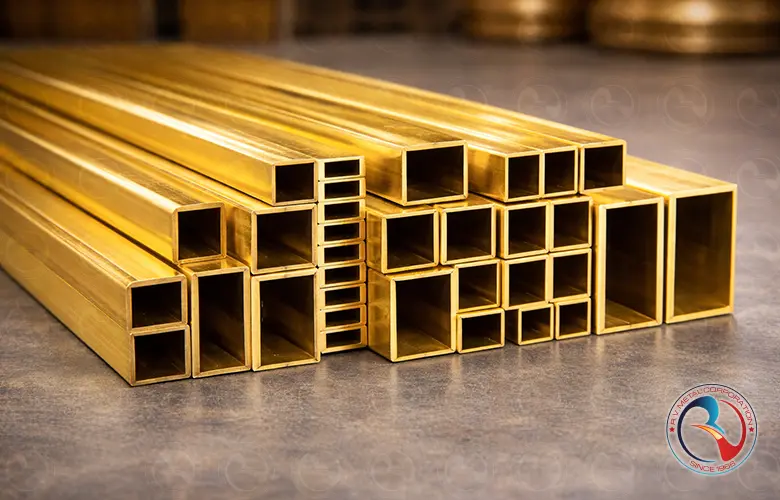

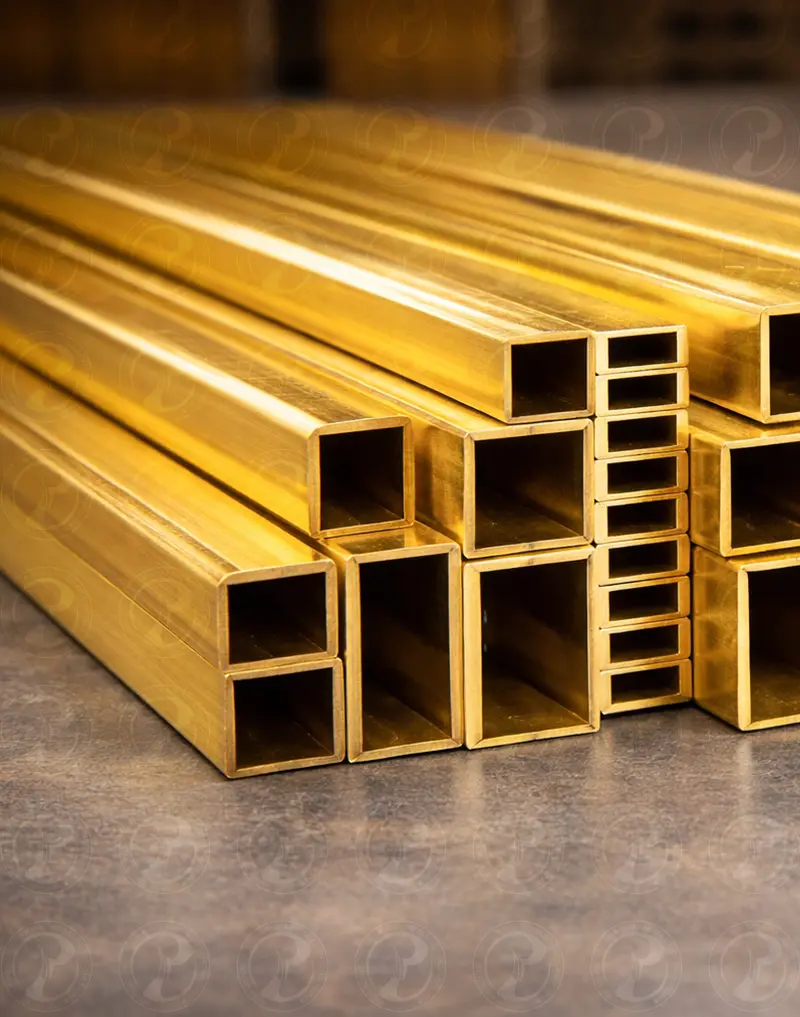

Brass Rectangular Tubes manufactured and supplied by R V Metal Corporation are precision-engineered hollow sections produced from high-quality brass alloys, offering an ideal balance of strength, corrosion resistance, machinability, and aesthetic appeal. These tubes are widely used across architectural, decorative, electrical, plumbing, furniture, automotive, and general engineering applications where dimensional accuracy and surface finish are critical.
Our brass rectangular tubes are available in a wide range of sizes, wall thicknesses, and tempers to suit both structural and functional requirements. Manufactured using controlled extrusion and drawing processes, they ensure uniform wall thickness, tight dimensional tolerances, and consistent mechanical properties throughout the length.
Depending on application needs, the tubes can be supplied in free-cutting, high-strength, or corrosion-resistant brass grades, making them suitable for fabrication operations such as bending, drilling, threading, brazing, soldering, and polishing. Custom lengths, surface finishes, and alloy compositions can be provided on request to meet OEM-specific and project-specific requirements.
With strict quality control, mill test certificates (MTCs), and compliance with international standards, R V Metal Corporation’s brass rectangular tubes deliver reliable performance, long service life, and excellent value for industrial as well as decorative applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Brass Rectangular Tubes |
| Material Grades | Free Cutting Brass, High Tensile Brass, Naval Brass, Custom Brass Alloys |
| Copper Content (Cu) | 58% – 65% (depending on grade) |
| Zinc Content (Zn) | Balance |
| Other Alloying Elements | Pb, Sn, Fe (as per grade requirements) |
| Manufacturing Process | Extruded / Drawn Rectangular Hollow Sections |
| Size Range | Custom rectangular sizes as per customer drawings or standards |
| Wall Thickness | 0.8 mm to 6.0 mm (or as specified) |
| Length | Standard: 3 m, 4 m, 6 m | Cut-to-length available |
| Temper | Soft (Annealed), Half-Hard, Hard / Extruded |
| Surface Finish | Mill Finish, Polished, Brushed, Lacquered (optional) |
| Dimensional Tolerance | As per ASTM / EN / IS or customer specification |
| Straightness | Controlled within industry-standard tolerances |
| Fabrication Compatibility | Bending, Cutting, Drilling, Threading, Brazing, Soldering |
| Applications | Architectural, Decorative, Electrical, Plumbing, Furniture, Automotive, Engineering |
| Quality Documentation | Mill Test Certificate (MTC), Chemical & Mechanical Reports |
| Standards Compliance | ASTM B455, ASTM B36, EN 12165 / EN 12168, IS 407, IS 319 |
| Packing | Bundled, Wooden Crates, Protective Wrapping (Export-worthy) |
Chemical Composition
| Element | CuZn30 (Cartridge Brass) | CuZn37 (Common Brass) | CuZn39Pb3 (Free Cutting Brass) | Naval Brass (CuZn40Sn1) |
|---|---|---|---|---|
| Copper (Cu) | 69.0 – 71.0 % | 62.0 – 65.0 % | 57.0 – 59.0 % | 59.0 – 62.0 % |
| Zinc (Zn) | Balance | Balance | Balance | Balance |
| Lead (Pb) | ≤ 0.05 % | ≤ 0.05 % | 2.5 – 3.5 % | ≤ 0.05 % |
| Tin (Sn) | ≤ 0.05 % | ≤ 0.05 % | ≤ 0.05 % | 0.8 – 1.2 % |
| Iron (Fe) | ≤ 0.05 % | ≤ 0.05 % | ≤ 0.35 % | ≤ 0.10 % |
| Aluminium (Al) | ≤ 0.02 % | ≤ 0.02 % | ≤ 0.02 % | ≤ 0.02 % |
| Nickel (Ni) | ≤ 0.30 % | ≤ 0.30 % | ≤ 0.30 % | ≤ 0.50 % |
| Impurities (Total) | ≤ 0.20 % | ≤ 0.20 % | ≤ 0.50 % | ≤ 0.30 % |
UNS Codes & Grades
| UNS Code | Common Grade Name | EN / DIN Equivalent | IS / BS Equivalent | Typical Composition | Key Characteristics | Typical Applications |
|---|---|---|---|---|---|---|
| C26000 | Cartridge Brass (CuZn30) | EN CW505L | IS 410 / CZ106 | Cu 69–71%, Zn Balance | Excellent cold workability, good corrosion resistance | Architectural sections, decorative rectangular tubes, heat exchanger parts |
| C27000 | Yellow Brass (CuZn33) | EN CW508L | IS 410 / CZ108 | Cu ~67%, Zn Balance | Good strength with improved formability | Rectangular tubes for fabrication, electrical housings, general engineering |
| C27200 | Common Brass (CuZn37) | EN CW508L / CW509L | IS 410 / CZ109 | Cu 62–65%, Zn Balance | Balanced strength and ductility | Structural rectangular sections, frames, furniture tubing |
| C36000 | Free Cutting Brass (CuZn39Pb3) | EN CW614N | IS 319 / CZ121 | Cu ~58%, Zn ~39%, Pb 2.5–3.5% | Excellent machinability, lower ductility | Precision-machined rectangular tubes, fittings, hardware components |
| C38500 | Architectural Brass | EN CW612N | IS 319 | Cu ~57–59%, Zn Balance | High strength, good extrusion quality | Architectural rectangular profiles, decorative sections |
| C46400 | Naval Brass (CuZn40Sn1) | EN CW712R | IS 291 | Cu ~60%, Zn ~39%, Sn ~1% | Excellent seawater and dezincification resistance | Marine-grade rectangular tubes, coastal and offshore structures |
Mechanical, Physical & Fabrication Properties
| Property Category | Property | Typical Value / Range | Remarks for Brass Rectangular Tubes |
|---|---|---|---|
| Mechanical Properties | Tensile Strength | 300 – 550 MPa | Varies by alloy (CuZn30 to CuZn40), temper and cold work |
| Yield Strength (0.2%) | 120 – 350 MPa | Higher values for hard-drawn / extruded sections | |
| Elongation | 10 – 45 % | Excellent ductility in annealed condition | |
| Hardness (HV) | 80 – 180 HV | Controlled through temper (soft, half-hard, hard) | |
| Impact Resistance | Good | Suitable for structural and decorative applications | |
| Fatigue Resistance | Moderate to Good | Improves with optimized cross-section design | |
| Physical Properties | Density | 8.40 – 8.60 g/cm³ | Depends on zinc and alloying elements |
| Melting Range | 900 – 940 °C | Lower than pure copper, aiding extrusion | |
| Thermal Conductivity | 110 – 150 W/m·K | Lower than copper but adequate for heat dissipation | |
| Electrical Conductivity | 20 – 30 % IACS | Not intended for high-current applications | |
| Coefficient of Thermal Expansion | 18 – 21 ×10⁻⁶ /°C | Stable under moderate temperature variation | |
| Corrosion Resistance | Good to Excellent | Excellent in atmospheric and mild marine environments | |
| Fabrication Properties | Extrudability | Excellent | Ideal for precise rectangular and custom profiles |
| Cold Workability | Very Good | Suitable for bending, forming and sizing | |
| Machinability | Good to Excellent | Exceptional for leaded brass grades (e.g., C36000) | |
| Weldability | Fair | Brazing and soldering preferred over fusion welding | |
| Brazability / Solderability | Excellent | Clean joints with standard copper-based fillers | |
| Surface Finish | Excellent | Ideal for polishing, plating and architectural finishes |
Common Names & International Identifiers
| Region / Usage | Common Name | UNS / Alloy Code | Standard / Specification | Remarks |
|---|---|---|---|---|
| India | Brass Rectangular Pipe | C26000 / C28000 | IS 319 (Part 1) | Widely used for architectural, decorative & industrial sections |
| India | Cartridge Brass Rectangular Tube | C26000 | IS 319 / IS 410 | High ductility, excellent forming characteristics |
| USA | Brass Rectangular Tube | C26000 / C27200 | ASTM B135 / ASTM B455 | Common for extrusion-based rectangular profiles |
| USA | Muntz Metal Rectangular Tube | C28000 | ASTM B135 | Higher strength brass for structural applications |
| Europe | Brass Rectangular Hollow Section | CW505L | EN 12167 / EN 12168 | Equivalent to CuZn30, excellent corrosion resistance |
| Europe | Brass Extruded Rectangular Tube | CW508L | EN 12167 | Equivalent to CuZn37, general-purpose brass |
| Germany | Messing Rechteckrohr | CW508L | DIN EN 12167 | Used in engineering and decorative structures |
| UK | Brass Rectangular Section | CZ108 / CZ109 | BS EN 12167 | Common in architectural and fabrication sectors |
| Japan | Brass Rectangular Tube | C2600 / C2801 | JIS H3300 | Used in precision and decorative components |
| International Trade | Extruded Brass Rectangular Tube | CuZn30 / CuZn37 | ISO / EN / ASTM | Globally accepted commercial brass grades |
Standards & International Equivalents
| Region / Country | Standard | Alloy / Grade Designation | Equivalent Standards | Remarks / Usage |
|---|---|---|---|---|
| India | IS 319 (Part 1) | CuZn30, CuZn37 | ASTM B135, EN 12167 | General-purpose brass rectangular tubes for industrial and decorative use |
| India | IS 410 | CuZn30 | ASTM B36 / EN CW505L | High-ductility brass for forming and fabrication |
| USA | ASTM B135 | C26000, C27200, C28000 | EN 12167, JIS H3300 | Extruded brass shapes including rectangular tubes |
| USA | ASTM B455 | C26000, C28000 | EN CW505L / CW508L | Special-purpose extruded brass sections |
| Europe | EN 12167 | CW505L (CuZn30) | ASTM C26000 / IS CuZn30 | High-quality extruded brass for architectural profiles |
| Europe | EN 12168 | CW508L (CuZn37) | ASTM C27200 / IS CuZn37 | Standard brass grade with good strength and machinability |
| Germany | DIN EN 12167 | CW505L / CW508L | ASTM B135 / IS 319 | Precision brass rectangular hollow sections |
| United Kingdom | BS EN 12167 | CZ108 / CZ109 | ASTM C26000 / C27200 | Widely used in architectural and engineering applications |
| Japan | JIS H3300 | C2600 / C2801 | ASTM B135 / EN 12167 | Precision brass extrusions for industrial use |
| International | ISO 426-1 / ISO 431 | CuZn30 / CuZn37 | ASTM / EN / IS | Globally accepted brass grades for rectangular tubes |
Applications
| Industry / Sector | Application Area | Role of Brass Rectangular Tubes | Key Properties Utilized |
|---|---|---|---|
| Architecture & Interior Design | Handrails, frames, trims, partitions | Structural and decorative profiles with premium finish | Attractive appearance, corrosion resistance, formability |
| Furniture Manufacturing | Table frames, chair supports, shelving systems | Load-bearing rectangular sections with elegant aesthetics | High strength-to-weight ratio, machinability |
| Electrical & Electronics | Busbar housings, cable management enclosures | Protective and conductive structural components | Electrical conductivity, dimensional stability |
| Plumbing & Sanitary Systems | Exposed piping covers, support channels | Corrosion-resistant structural tubing for wet environments | Corrosion resistance, durability |
| HVAC & Refrigeration | Support frames, equipment housings | Rigid rectangular sections for system assemblies | Thermal stability, vibration resistance |
| Automotive | Decorative trims, structural brackets | Precision-formed components for interior and exterior use | Good strength, corrosion resistance, ease of forming |
| Industrial Equipment | Machine frames, guards, protective enclosures | Structural tubing for industrial fabrication | Mechanical strength, machinability |
| Marine & Offshore | Cabin fittings, structural supports | Corrosion-resistant tubing for harsh environments | Excellent resistance to seawater corrosion |
| Renewable Energy | Solar panel frames, mounting structures | Long-life structural components for outdoor installations | Weather resistance, structural integrity |
| Custom Fabrication & OEM | Special-purpose profiles and assemblies | Tailor-made rectangular tubes as per drawing/specification | Dimensional accuracy, versatility |
Standard Brass Rectangular Tubes Dimensional Chart
| Tube Size (W×H) mm | Wall t (mm) | Inside (Wi×Hi) mm | Metal Area (mm²) | Theoretical Wt (kg/m) | Theoretical Wt (kg/6m) |
|---|---|---|---|---|---|
| 20×10 | 1.0 | 18.0×8.0 | 56.0 | 0.474 | 2.846 |
| 20×10 | 1.2 | 17.6×7.6 | 66.2 | 0.561 | 3.366 |
| 20×10 | 1.5 | 17.0×7.0 | 81.0 | 0.686 | 4.116 |
| 20×10 | 2.0 | 16.0×6.0 | 104.0 | 0.881 | 5.286 |
| 25×15 | 1.0 | 23.0×13.0 | 76.0 | 0.644 | 3.864 |
| 25×15 | 1.2 | 22.6×12.6 | 89.8 | 0.760 | 4.562 |
| 25×15 | 1.5 | 22.0×12.0 | 110.0 | 0.932 | 5.592 |
| 25×15 | 2.0 | 21.0×11.0 | 141.0 | 1.194 | 7.166 |
| 30×15 | 1.0 | 28.0×13.0 | 86.0 | 0.729 | 4.374 |
| 30×15 | 1.2 | 27.6×12.6 | 101.6 | 0.861 | 5.166 |
| 30×15 | 1.5 | 27.0×12.0 | 124.5 | 1.054 | 6.324 |
| 30×15 | 2.0 | 26.0×11.0 | 160.0 | 1.355 | 8.132 |
| 40×20 | 1.0 | 38.0×18.0 | 116.0 | 0.983 | 5.898 |
| 40×20 | 1.2 | 37.6×17.6 | 137.0 | 1.160 | 6.958 |
| 40×20 | 1.5 | 37.0×17.0 | 168.0 | 1.423 | 8.538 |
| 40×20 | 2.0 | 36.0×16.0 | 216.0 | 1.830 | 10.979 |
| 50×25 | 1.0 | 48.0×23.0 | 146.0 | 1.237 | 7.421 |
| 50×25 | 1.2 | 47.6×22.6 | 172.4 | 1.460 | 8.759 |
| 50×25 | 1.5 | 47.0×22.0 | 211.5 | 1.792 | 10.753 |
| 50×25 | 2.0 | 46.0×21.0 | 272.0 | 2.303 | 13.820 |
| 60×30 | 1.0 | 58.0×28.0 | 176.0 | 1.491 | 8.946 |
| 60×30 | 1.2 | 57.6×27.6 | 207.8 | 1.760 | 10.562 |
| 60×30 | 1.5 | 57.0×27.0 | 255.0 | 2.161 | 12.966 |
| 60×30 | 2.0 | 56.0×26.0 | 328.0 | 2.777 | 16.661 |
| 75×25 | 1.0 | 73.0×23.0 | 196.0 | 1.660 | 9.961 |
| 75×25 | 1.2 | 72.6×22.6 | 231.4 | 1.960 | 11.757 |
| 75×25 | 1.5 | 72.0×22.0 | 283.5 | 2.402 | 14.409 |
| 75×25 | 2.0 | 71.0×21.0 | 364.0 | 3.083 | 18.498 |
| 80×40 | 1.0 | 78.0×38.0 | 236.0 | 1.999 | 11.993 |
| 80×40 | 1.2 | 77.6×37.6 | 278.6 | 2.360 | 14.158 |
| 80×40 | 1.5 | 77.0×37.0 | 342.0 | 2.897 | 17.381 |
| 80×40 | 2.0 | 76.0×36.0 | 440.0 | 3.727 | 22.363 |
| 100×50 | 1.0 | 98.0×48.0 | 296.0 | 2.508 | 15.046 |
| 100×50 | 1.2 | 97.6×47.6 | 349.4 | 2.960 | 17.758 |
| 100×50 | 1.5 | 97.0×47.0 | 429.0 | 3.634 | 21.802 |
| 100×50 | 2.0 | 96.0×46.0 | 552.0 | 4.675 | 28.050 |
| 120×60 | 1.0 | 118.0×58.0 | 356.0 | 3.016 | 18.098 |
| 120×60 | 1.2 | 117.6×57.6 | 420.2 | 3.559 | 21.356 |
| 120×60 | 1.5 | 117.0×57.0 | 516.0 | 4.369 | 26.215 |
| 120×60 | 2.0 | 116.0×56.0 | 664.0 | 5.624 | 33.747 |
Note: Weights are theoretical and calculated using brass density ≈ 8.47 g/cm³.
Actual weight varies with alloy (Cu/Zn%), temper, and dimensional tolerances.
For project-critical take-off, request an MTC + tolerance sheet from R V Metal Corporation.
