Medical Gas Copper Pipe (EN 13348) for MGPS Systems

Product Overview

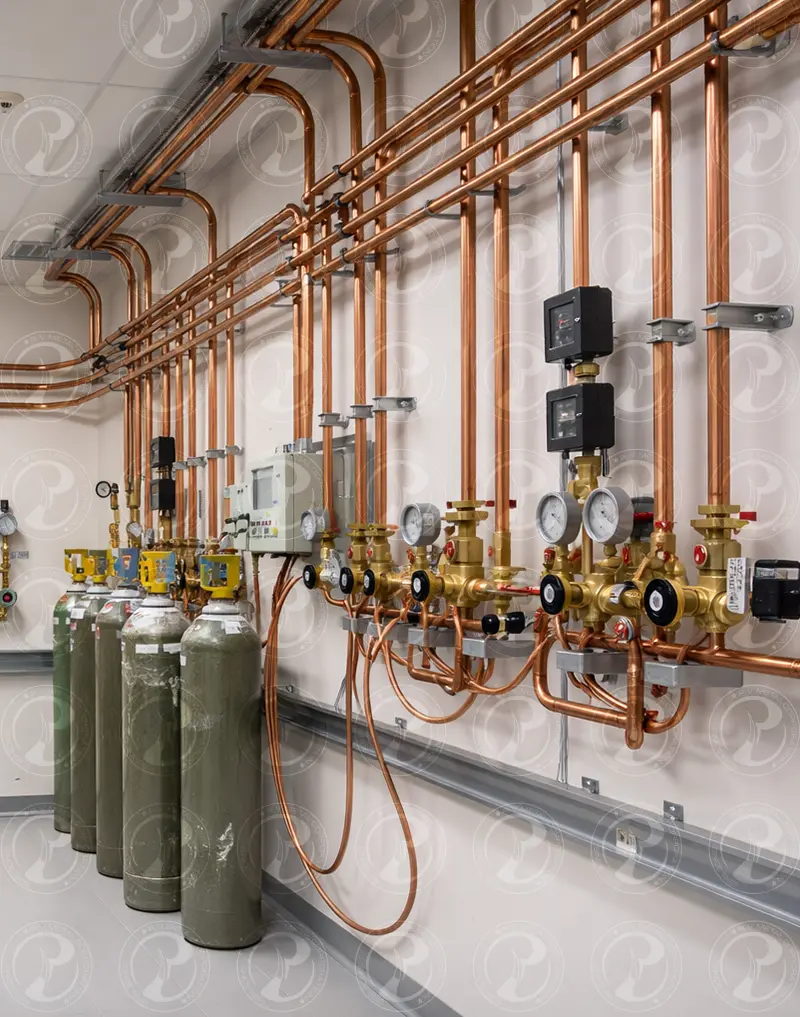

Medical Gas Copper Pipes supplied by R V Metal Corporation are manufactured from high-purity Copper DHP (Deoxidized High Phosphorus) grade, conforming to C12200 / CW024A. These seamless tubes are specifically produced for Medical Gas Pipeline Systems (MGPS) in accordance with EN 13348 and BS EN 1057 standards. Each pipe is degreased, internally cleaned, and capped to ensure ultra-low residual carbon levels, preventing contamination of oxygen, nitrous oxide, vacuum, and medical air systems.

With copper purity exceeding 99.90% and controlled phosphorus content between 0.015% and 0.040%, Copper DHP tubes offer excellent corrosion resistance, weldability, and stability during brazing—ensuring long-term reliability in hospital and healthcare environments. The pipes are available from 6 mm to 108 mm OD in annealed (R220) coils and half-hard (R250) straight lengths, with wall thickness fully aligned to EN 13348 MGPS specifications.

All tubes undergo strict quality checks and are supplied deburred, capped, batch-marked, and color-coded for MGPS identification. Ideal for hospitals, ICUs, operating theatres, laboratories, and central medical gas distribution networks, R V Metal Corporation’s Medical Gas Copper Pipes deliver safe, durable, and globally compliant performance for all critical medical gas applications.

Technical Specifications

Parameter	Specification
Material Grade	Copper DHP – C12200 (ASTM) / CW024A (EN)
Standard	EN 13348 – Copper & Copper Alloys Seamless Round Copper Tubes for Medical Gases
Manufacturing Process	Seamless, Phosphorus Deoxidized Copper Tube (Deoxidized with Phosphorus)
Purity	Cu ≥ 99.90%, P = 0.015 – 0.040%
Outer Diameter Range	6 mm – 108 mm
Wall Thickness Range	According to EN 13348 MGPS Standard (6 mm – 108 mm, coil & straight lengths)
Temper / Condition	R220 – Soft Annealed (for coils) R250 – Half Hard (for straight lengths)
Tensile Strength	R220: 200 – 250 MPa R250: 250 – 310 MPa
Elongation (Min.)	R220: ≥ 40% R250: ≥ 30%
Residual Carbon Limit	< 0.20 mg/dm² (Fully Degreased for MGPS Use)
Internal Cleanliness	Degreased, cleaned, and nitrogen purged; Both ends capped
Surface Finish	Bright, smooth, scratch-free inside and outside
Burst Pressure	As per EN 13348 requirements for respective OD & wall thickness
Markings	Manufacturer Name / Grade / EN 13348 / OD × WT / Batch No. / Production Date / Length
Supply Condition	Straight lengths: 3 m / 5.8 m Coils: 15 m / 30 m / 50 m
Applications	Medical Oxygen, Nitrous Oxide, Vacuum, Medical Air, CO₂, Surgical Air, Anaesthesia Gas Scavenging Systems

Chemical Composition

Note: Chemical values based on ASTM B68, B75, B88, B152 and EN 12449 standards commonly used for copper tubes and lug manufacturing. Final composition is confirmed in the Mill Test Certificate (MTC).

UNS Codes & Grades

Mechanical, Physical & Fabrication Properties

Common Names & International Identifiers

Standards & International Equivalents

Applications

Standard Copper Tube Dimensional Chart
