Name: Aluminium Bronze Alloys
Brand: R V Metal Corporation

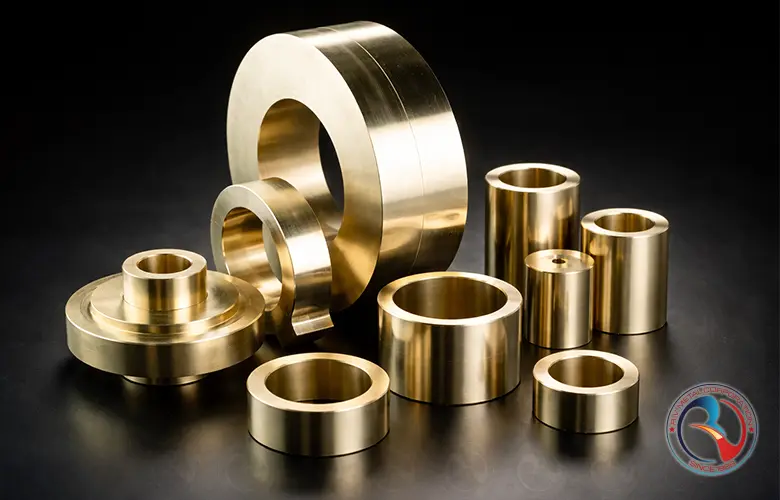

Aluminium Bronze Alloys Sheets, Rods, Bars & Castings

Product Overview

Aluminium Bronze Alloys are high-performance copper-based alloys known for their exceptional strength, corrosion resistance, and durability in aggressive service environments. R V Metal Corporation supplies Aluminium Bronze in multiple product forms including sheets, rods, bars, and castings, engineered to perform reliably in marine, offshore, heavy engineering, power generation, oil & gas, and chemical processing applications. The presence of aluminium enhances resistance to seawater corrosion, oxidation, cavitation, and wear, while also delivering excellent mechanical strength compared to conventional brasses and bronzes.

Our Aluminium Bronze products are available in standard and custom grades, offering a balanced combination of high tensile strength, good fatigue resistance, and excellent machinability for both wrought and cast forms. These alloys maintain structural integrity under high loads, elevated temperatures, and corrosive conditions, making them a preferred material for critical components such as pump parts, valves, bushings, bearings, propeller shafts, fasteners, and structural elements. With strict quality control and compliance to international standards, R V Metal Corporation ensures consistent metallurgy, dimensional accuracy, and long service life across all Aluminium Bronze alloy products.

Technical Specifications

Parameter	Sheets	Rods	Bars	Castings
Material Type	Aluminium Bronze Alloys (Cu–Al based alloys with optional Fe, Ni, Mn additions)
Typical Aluminium Content	8.0% – 12.0%
Available Standards	ASTM B169 / B505, EN 1652 / EN 1982, IS 306, DIN 17665
Common Grades	C63000, C63200, C95400, CuAl8, CuAl10Fe5Ni5
Form / Shape	Flat Sheets / Plates	Round Rods	Square, Flat, Hex Bars	Custom Cast Shapes
Thickness / Size Range	0.5 mm – 100 mm	6 mm – 300 mm dia	10 mm – 250 mm	As per drawing
Tensile Strength	550 – 800 MPa (grade & temper dependent)
Yield Strength	250 – 450 MPa
Elongation	10% – 25%
Hardness	140 – 220 HB
Density	7.5 – 7.7 g/cm³
Corrosion Resistance	Excellent – seawater, chemical, and industrial environments
Wear Resistance	Very High (suitable for heavy-duty and sliding applications)
Machinability	Good	Very Good	Very Good	Moderate
Heat Treatment	Solution treated / Stress relieved / As-cast
Surface Finish	Mill / Polished	Turned / Polished	Machined	As-cast / Machined
Typical Length	1000 – 3000 mm	Up to 6 meters	Up to 6 meters	Custom
Quality Documentation	Mill Test Certificate (EN 10204 3.1), Chemical & Mechanical Reports

Chemical Composition

Element	C63000 (%)	C63200 (%)	C95400 (%)	CuAl10Fe5Ni5 (%)
Copper (Cu)	79.0 – 83.0	78.0 – 82.0	83.0 – 87.0	Balance
Aluminium (Al)	9.0 – 11.0	8.5 – 10.5	10.0 – 11.5	9.0 – 11.0
Iron (Fe)	3.0 – 5.0	2.0 – 4.0	3.0 – 5.0	4.0 – 6.0
Nickel (Ni)	4.0 – 6.0	1.0 – 3.0	0.5 – 2.0	4.0 – 6.0
Manganese (Mn)	≤ 1.0	≤ 1.5	≤ 1.0	≤ 1.5
Zinc (Zn)	≤ 0.5	≤ 0.5	≤ 0.5	≤ 0.5
Silicon (Si)	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Lead (Pb)	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
Others	≤ 0.5 (total impurities)

UNS Codes & Grades

UNS Code	Common Grade Name	Product Forms	Key Alloying Elements	Typical Applications	Equivalent Standards
C60600	Aluminium Bronze (Low Al)	Sheets, Plates	Al 4.5–6.0%	Architectural, Decorative, Corrosion Resistant Panels	EN CW307G, IS 1630 AB1
C60800	Aluminium Bronze	Sheets, Plates	Al 6.5–8.0%	Marine Hardware, Structural Components	EN CW308G
C61000	Aluminium Bronze	Sheets, Plates, Bars	Al 8.0–10.0%	Marine, Chemical Processing, Pressure Components	EN CW309G, IS 1630 AB2
C61300	Aluminium Bronze (Fe-bearing)	Rods, Bars	Al 6.0–8.0%, Fe	Wear Plates, Bushes, Heavy-Duty Components	EN CW310G
C61400	Aluminium Bronze	Rods, Bars	Al 6.0–8.0%	Fasteners, Structural Parts	EN CW311G
C63000	Nickel Aluminium Bronze	Rods, Bars, Plates	Al 9–11%, Ni, Fe	Marine Shafts, Valves, High-Strength Parts	EN CW307G, DEF STAN
C63200	Nickel Aluminium Bronze	Rods, Bars	Al, Ni, Fe, Mn	Offshore, Naval, Pump Components	EN CW308G
C95400	Aluminium Bronze (Cast)	Castings	Al 10–11.5%, Fe	Gears, Bearings, Heavy Marine Castings	ASTM B148, IS 1630 AB3
C95500	Nickel Aluminium Bronze (Cast)	Castings	Al, Ni, Fe	Propellers, Valve Bodies, Pump Housings	ASTM B148 C955
C95800	High-Strength Aluminium Bronze (Cast)	Castings	Al, Ni, Fe, Mn	Seawater, Cavitation-Prone Applications	ASTM B148 C958

Mechanical, Physical & Fabrication Properties

Property	Wrought Aluminium Bronze (Sheets / Rods / Bars)	Cast Aluminium Bronze (Sand / Centrifugal / Continuous Cast)	Remarks
Tensile Strength	550 – 850 MPa	500 – 750 MPa	Nickel Aluminium Bronze grades are on the higher end
Yield Strength (0.2%)	250 – 450 MPa	200 – 400 MPa	Heat treatment significantly increases yield
Elongation	12 – 30 %	8 – 20 %	Cast grades sacrifice ductility for wear resistance
Hardness	140 – 260 HB	160 – 300 HB	Higher aluminium & iron = higher hardness
Density	7.4 – 7.7 g/cm³	7.4 – 7.7 g/cm³	Slightly lighter than standard brass
Melting Range	1020 – 1085 °C	1020 – 1085 °C	Wide range due to alloying additions
Thermal Conductivity	45 – 75 W/m·K	40 – 70 W/m·K	Lower than pure copper but stable at high temps
Electrical Conductivity	6 – 12 % IACS	5 – 10 % IACS	Not used for electrical applications
Corrosion Resistance	Excellent	Excellent	Outstanding in seawater & chloride environments
Cavitation Resistance	Very Good	Excellent	Reason cast NAB is used for propellers
Wear & Galling Resistance	Very Good	Excellent	Superior to brass & phosphor bronze
Machinability	40 – 60 % (Brass = 100%)	30 – 50 %	Requires rigid setup & carbide tooling
Formability	Moderate	Not Applicable	Cold forming limited due to high strength
Hot Workability	Good	Excellent	Preferred forming method
Weldability	Good (Special Procedures)	Good (Preheat Required)	Nickel Aluminium Bronze filler recommended
Brazing & Soldering	Good	Fair	Clean surface preparation critical
Heat Treatment Capability	Yes (Quench & Temper)	Yes	Major advantage over conventional bronzes

Common Names & International Identifiers

Common / Trade Name	UNS Designation	EN / DIN Grade	BS / ISO Grade	Typical Product Form	Notes & Industry Usage
Aluminium Bronze	C60800 / C61000	EN CW307G / CW305G	BS CA102 / ISO CuAl8	Sheets, Plates, Rods, Bars	General-purpose aluminium bronze, good corrosion resistance
High Strength Aluminium Bronze	C61400 / C61500	EN CW306G	BS CA103	Bars, Forgings	Improved strength with iron addition
Nickel Aluminium Bronze (NAB)	C63000	EN CW307G (NAB)	BS CA104	Rods, Bars, Forgings	Marine-grade wrought alloy with high strength
Nickel Aluminium Bronze – Cast	C95500	EN CC333G	BS AB2	Castings	Propellers, pump bodies, valve bodies
High Iron Aluminium Bronze	C95200	EN CC332G	BS AB1	Castings	Excellent wear & cavitation resistance
Manganese Aluminium Bronze	C95700	EN CC334G	BS AB3	Castings	Heavy-duty marine & offshore components
Naval Aluminium Bronze	C95800	EN CC335G	BS AB4	Castings	High shock & seawater resistance
Marine Aluminium Bronze	C63020 (variant)	EN CW307G (variant)	ISO CuAl10Ni5Fe4	Bars, Plates, Forgings	Used where cast NAB is not acceptable
Heat-Treatable Aluminium Bronze	C62400	EN CW308G	ISO CuAl10Fe3	Rods, Bars	Quench & temper capable alloy
Aluminium Bronze Bearing Alloy	C95400	EN CC331G	BS AB1X	Castings	Bearing shells, wear plates

Standards & International Equivalents

Standard / System	Standard No.	Product Form Covered	Typical Aluminium Bronze Grades Referenced	International Equivalent / Notes
ASTM (USA)	ASTM B150 / B150M	Wrought Bars, Rods, Shapes	C60800, C61000, C61400, C63000	Common for wrought NAB / Al-bronze bar stock for machining & forgings
ASTM (USA)	ASTM B169 / B169M	Wrought Plates, Sheets, Strips	C61400, C63000 (selected)	Used for Al-bronze plate/sheet procurement; verify grade availability by mill
ASTM (USA)	ASTM B124 / B124M	Wrought Plates, Sheets, Strips	C61400, C62400, C63000 (selected)	Often referenced for copper alloy plate/strip; confirm exact alloy listing in purchase order
ASTM (USA)	ASTM B171 / B171M	Wrought Plate, Sheet, Strip (general Cu alloys)	Selected Cu-Al alloys (varies by revision)	Used when engineers specify “copper-alloy sheet/plate”; always cross-check UNS listing
ASTM (USA)	ASTM B148	Castings (general copper alloy castings)	C95200, C95300, C95400, C95500, C95800	Most important casting standard for NAB/Al-bronze pump & valve castings
ASTM (USA)	ASTM B584	Castings (general copper alloy)	C95400, C95500 (common), others	Another common casting spec; used heavily in industrial valves & fittings
ASTM (USA)	ASTM B763	Castings (inspection requirements)	All Cu-alloy castings	Defines inspection (NDT/quality requirements) — critical for EPC & marine procurement
EN / BS EN (Europe)	EN 12163	Wrought Rods (general purpose)	CW305G, CW306G, CW307G, CW308G	Primary European standard for Al-bronze rods for machining
EN / BS EN (Europe)	EN 12164	Wrought Rods (free-machining / special)	Selected Cu-Al alloys (varies)	Used when machinability or specific tolerances are specified
EN / BS EN (Europe)	EN 12165	Wrought Forgings / Forging Stock	CW305G, CW306G, CW307G (NAB)	Key reference for forged valves, flanges, marine components
EN / BS EN (Europe)	EN 1652	Wrought Plate, Sheet, Strip	CW305G, CW307G (selected)	Used for Al-bronze sheets/plates/strips in EU procurement
EN / BS EN (Europe)	EN 1982	Castings	CC330G, CC331G, CC332G, CC333G, CC334G, CC335G	European casting standard; mapping to ASTM C95xxx grades required in EPC specs
ISO (International)	ISO 428	Wrought Copper Alloys (designation system)	CuAl, CuAlNi, CuAlFe families	Used for generic alloy naming; purchase specs still need EN/ASTM for dimensions/tolerances
ISO (International)	ISO 1338 / ISO copper alloy designation (varies)	General reference	CuAl8, CuAl10Ni5Fe4, etc.	Common in technical literature; confirm with EN/ASTM equivalent for compliance
BIS (India)	IS 292 (as applicable)	Wrought Copper Alloys (general)	Equivalent composition-based control	Indian procurements often accept ASTM/EN with MTC; state standard explicitly in PO
BIS (India)	IS 318 (Copper, ETP reference)	Base copper reference	N/A (base copper)	Not Al-bronze, but sometimes referenced for electrical copper—avoid mixing with Al-bronze specs
Marine / Classification	ABS / DNV / LR / BV / RINA (project-specific)	Castings / Forgings / Bars	NAB / Al-bronze per ASTM B148 / EN 1982	Approvals depend on foundry/mill; EPCs will demand type approvals & traceability

Applications

Industry / Sector	Application Area	Typical Product Form Used	Why Aluminium Bronze is Preferred	Common Components
Marine & Shipbuilding	Seawater-handling systems	Castings, Rods, Bars	Excellent corrosion resistance in seawater, anti-fouling properties	Pump bodies, impellers, propellers, valves
Oil & Gas	Offshore & onshore fluid handling	Castings, Forged Bars, Plates	High strength, non-sparking, resistance to sour & saline environments	Valve bodies, stems, bushings, wear rings
Power Generation	Thermal, nuclear & renewable plants	Sheets, Plates, Bars	High fatigue strength, thermal stability, corrosion resistance	Turbine components, bearing housings, fasteners
Defense & Naval	Critical naval hardware	Castings, Forgings	High strength-to-weight ratio, seawater durability, low magnetic permeability	Propulsion parts, weapon system components
Aerospace	Structural & wear-resistant parts	Bars, Plates	Excellent strength, fatigue resistance, dimensional stability	Bushings, bearings, structural inserts
Mining & Earthmoving	Heavy-duty wear applications	Rods, Castings	Outstanding wear resistance under high load and abrasive conditions	Gears, sleeves, wear plates
Water Treatment & Desalination	Corrosive fluid systems	Sheets, Castings, Bars	Resistance to chloride attack and biofouling	Pump components, valves, fittings
Chemical Processing	Corrosive & high-temperature environments	Plates, Bars, Castings	Good chemical resistance and mechanical strength	Heat exchanger parts, agitator components
Automotive & Heavy Engineering	High-load mechanical parts	Rods, Bars	High tensile strength, excellent machinability for complex parts	Bearings, bushings, gears
General Engineering	Machined & fabricated components	Sheets, Rods, Bars	Balanced combination of strength, corrosion resistance & machinability	Custom machined parts, structural components

Common Aluminium Bronze Alloys Forms & Dimensions Chart

Product Form	Typical Supply Condition	Standard Supply Range (Indicative)	Common Delivery	Notes
Sheets / Plates	Hot Rolled (HR) / Cold Rolled (CR)	Thickness: 0.5–100 mm Width: 1000–2500 mm Length: 2000–6000 mm	Flat sheets / cut-to-size plates	CR for tighter tolerance & finish; HR for heavy gauges.
Round Rods	Extruded / Drawn / Turned & Polished	Dia: 6–300 mm Standard Length: 3–6 m	Random length / fixed length	Turned & polished for machining-ready OD and straightness.
Bars (Flat / Square)	Hot Rolled / Extruded	Flat: 10×3 to 200×50 mm Square: 8×8 to 150×150 mm	Fixed length / cut lengths	Corner radius & flatness depend on process (HR vs extruded).
Castings	Sand / Centrifugal / Continuous Cast (CC)	Custom as per drawing	Near-net shapes / rough cast	Weights vary by pattern, riser, machining allowance (no “standard”).

Category	Common Sizes (mm)	Common Sizes (inch)	Typical Use
Sheets / Plates (Thickness)	0.8, 1.0, 1.2, 1.6, 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 30, 40, 50	0.032, 0.040, 0.050, 0.063, 1/8, 3/16, 1/4, 3/8, 1/2, 3/4, 1, 1-1/2, 2	Wear plates, marine hardware, fabrication, bases
Round Rods (Diameter)	6, 8, 10, 12, 16, 20, 25, 30, 35, 40, 50, 60, 75, 100, 125, 150, 200	1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 1-1/4, 1-1/2, 2, 3, 4, 5, 6, 8	Bushings, shafts, marine fasteners, machined parts
Flat Bars (Width × Thickness)	20×3, 25×3, 30×5, 40×6, 50×6, 50×10, 65×12, 75×12, 100×12, 100×20, 150×25	1×1/8, 1×1/4, 2×1/4, 3×1/2, 4×1/2, 6×1	Wear strips, guides, brackets, structural components
Square Bars (Across Flats)	10, 12, 16, 20, 25, 30, 40, 50, 60, 75, 100	3/8, 1/2, 5/8, 3/4, 1, 1-1/4, 1-1/2, 2, 3, 4	Keys, blocks, CNC components, marine fittings

Form	Size Example	Theoretical Weight	Unit	Calculation Basis (ρ = 7.70 g/cc)
Sheet / Plate	1.0 mm thick	7.70	kg/m²	kg/m² = thickness(mm) × 7.70
Sheet / Plate	3.0 mm thick	23.10	kg/m²	3 × 7.70 = 23.10
Sheet / Plate	6.0 mm thick	46.20	kg/m²	6 × 7.70 = 46.20
Round Rod	Ø 10 mm	0.60	kg/m	kg/m = (π/4 × d²) × ρ (d in m, ρ in kg/m³)
Round Rod	Ø 20 mm	2.42	kg/m	Scaled by area ratio (20² / 10² = 4)
Round Rod	Ø 50 mm	15.12	kg/m	Higher section modulus; machining allowance may add order weight
Flat Bar	25 × 3 mm	0.58	kg/m	kg/m = (W×T mm²) × 0.00770
Flat Bar	50 × 6 mm	2.31	kg/m	(50×6)×0.00770 = 2.31
Flat Bar	100 × 10 mm	7.70	kg/m	(100×10)×0.00770 = 7.70
Square Bar	20 × 20 mm	3.08	kg/m	(20×20)×0.00770 = 3.08
Square Bar	50 × 50 mm	19.25	kg/m	(50×50)×0.00770 = 19.25
Castings	Custom as per drawing	—	—	Weight depends on casting method, pattern allowances, gating/risers, and machining stock.

Note: Theoretical weights are calculated using an assumed density of 7.70 g/cc. Actual weight can vary by grade chemistry, temper/processing, and dimensional tolerances. For billing/dispatch, always confirm net weight after inspection.

Aluminium Bronze Alloys Sheets, Rods, Bars & Castings
