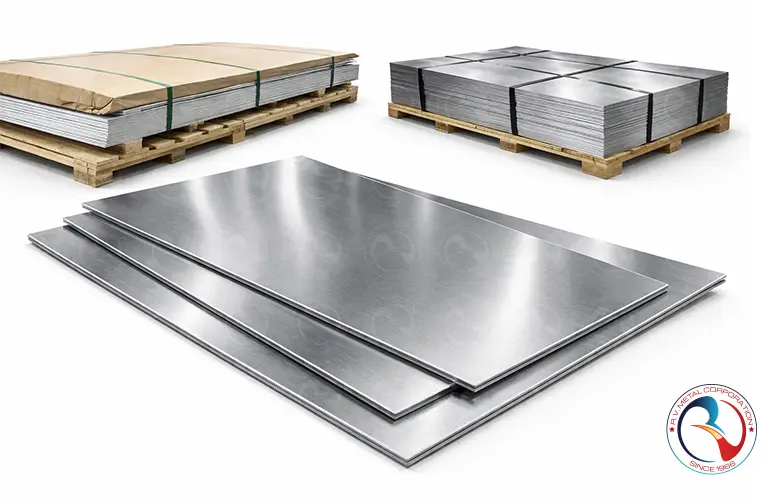

Stainless Steel Sheets & Plates
Product Overview
R V Metal Corporation supplies stainless steel sheets and plates across a broad grade spectrum—economical 200-series (J4, J7, 201, 202), high-strength work-hardening grades (301, 302), the most common austenitic workhorses (304, 304L, 304H, 305), higher corrosion-resistant molybdenum-bearing grades (316, 316L, 316H, 316Ti, 317, 317L), stabilized grades for elevated-temperature service (321, 321H, 347, 347H), heat-resistant grades for oxidation and thermal cycling (308, 309, 309S, 310, 310S), ferritic and martensitic options for cost, magnetism, and wear/strength (409L, 410, 410S, 420, 429, 430, 430Ti, 439, 441, 444), and Duplex S31803 for high strength with excellent chloride stress-corrosion cracking resistance. Sheets are typically selected for fabrication and lighter structures where forming is critical, while plates are preferred for heavy-duty fabrication, pressure parts, base plates, and structural applications where thickness, flatness, and weld stability matter. Available in hot rolled (HR) and cold rolled (CR) conditions and multiple surface finishes, these products are suited to general fabrication, architectural cladding, chemical and process equipment, food and dairy, heat exchangers, tanks, marine service, and industrial OEM requirements—where grade selection is driven by corrosion environment, temperature, weldability, and required mechanical performance.
Technical Specifications
| Parameter | Typical Range / Options | Applicable Grades (from your list) |
|---|---|---|
| Product Form | Sheets & Plates (Cut-to-size / Sheared / Laser / Plasma as required) | All grades listed |
| Manufacturing Route | Cold Rolled (CR) / Hot Rolled (HR) / Quarto Plate (HRQ) / Annealed & Pickled (AP) | All grades (route depends on thickness & finish) |
| Thickness Range |
Sheet: 0.3 mm to 6.0 mm (typ.) Plate: 6 mm to 100 mm (typ.) (Wider thickness ranges available on request) |
All grades listed |
| Width Range | 1000 / 1219 / 1250 / 1500 / 2000 mm (custom widths possible) | All grades listed |
| Length Range | 2000 / 2438 / 2500 / 3000 / 6000 mm (cut lengths available) | All grades listed |
| Standard Sheet Sizes | 4×8 ft, 4×10 ft, 5×10 ft (and metric equivalents) | All grades listed |
| Plate Sizes | 1500×6000 mm, 2000×6000 mm (and custom plates as per mill availability) | All grades listed |
| Surface Finish (Sheets) | 2B, BA, No.1 (HR), No.4 (Brush), Hairline (HL), Mirror (8K), Embossed, Chequered (Pattern) | Primarily J4/J7/201/202/301/302/304/304L/304H/305/316/316L/316H/316Ti/317/317L/321/321H/347/347H |
| Surface Finish (Plates) | No.1 / AP (Annealed & Pickled) / 2B (thin plate) / Shot-blasted (where applicable) | All grades listed |
| Edge Condition | Mill Edge / Slit Edge / Deburred Edge | All grades listed |
| Flatness / Tolerances | As per ASTM / EN / JIS / IS based on supply standard (tight tolerance on request) | All grades listed |
| Supply Condition |
Annealed / Solution Annealed / Skin Passed (CR) / Hot Rolled (HR) Pickled & Passivated (optional) |
All grades listed |
| Temper / Hardness Options | Soft / 1⁄4 Hard / 1⁄2 Hard / 3⁄4 Hard / Full Hard (grade-dependent) | Mostly 301, 302, 304, 304L, 201, 202, J4, J7 (work-hardening grades) |
| Standards (Common) |
ASTM A240 / A480 (plates & sheets), ASTM A666 (austenitic sheet), ASTM A176 (ferritic sheet) EN 10088 (stainless steels), JIS G4304 / G4305, IS equivalents (as applicable) |
All grades listed (mapped by grade family) |
| Duplex Plate Standard | ASTM A240 / A480 (Duplex plate & sheet supply) | S31803 (Duplex) |
| Heat-Resistant / High-Temp Grades | Improved oxidation resistance & creep strength vs standard 304 (selection depends on temperature & cycles) | 308, 309, 309S, 310, 310S, 321/321H, 347/347H, 304H |
| Magnetic Behavior |
Austenitic: generally non-magnetic (may show slight magnetism after cold work) Ferritic/Martensitic: magnetic Duplex: magnetic |
Austenitic: J4, J7, 201, 202, 301, 302, 304/304L/304H, 305, 308, 309/309S, 310/310S, 316/316L/316H/316Ti, 317/317L, 321/321H, 347/347H Ferritic/Martensitic: 409L, 410, 410S, 420, 429, 430, 430Ti, 439, 441, 444 Duplex: S31803 |
| Weldability (General) |
Excellent in most austenitic grades; stabilized grades preferred for high-temp welded parts; Duplex requires controlled heat input; martensitic needs pre/post heat practices. |
All grades listed (procedure depends on family) |
| Certificates / Traceability | Mill Test Certificate (MTC) / EN 10204 3.1 / Heat No. traceability (on request) | All grades listed |
| Typical Services | Shearing, Slitting, Polishing, PVC coating, Laser/Plasma cutting, Fabrication support | All grades listed |
| Packing | Wooden pallets / seaworthy packing / interleaving paper / PVC protected (as required) | All grades listed |
Chemical Composition
| Grade | Type | C (max) | Mn (max) | Si (max) | Cr | Ni | Mo | N | Other Key Elements (typ. / max) |
|---|---|---|---|---|---|---|---|---|---|
| J4 | Austenitic (200-series type) | ≤ 0.15 | ≤ 9.0 | ≤ 1.0 | 15.0–17.0 | 1.0–2.0 | — | — | Cu: 1.5–3.5 (typ.) |
| J7 | Austenitic (200-series type) | ≤ 0.12 | ≤ 8.0 | ≤ 1.0 | 16.0–18.0 | 1.0–2.5 | — | — | Cu: 0.5–2.0 (typ.) |
| 201 | Austenitic | ≤ 0.15 | ≤ 7.50 | ≤ 1.00 | 16.0–18.0 | 3.5–5.5 | — | ≤ 0.25 | — |
| 202 | Austenitic | ≤ 0.15 | ≤ 10.0 | ≤ 1.00 | 17.0–19.0 | 4.0–6.0 | — | ≤ 0.25 | — |
| 301 | Austenitic | ≤ 0.15 | ≤ 2.00 | ≤ 1.00 | 16.0–18.0 | 6.0–8.0 | — | ≤ 0.10 | — |
| 302 | Austenitic | ≤ 0.15 | ≤ 2.00 | ≤ 1.00 | 17.0–19.0 | 8.0–10.0 | — | ≤ 0.10 | — |
| 304 | Austenitic | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 18.0–20.0 | 8.0–10.5 | — | ≤ 0.10 | — |
| 304L | Austenitic (Low C) | ≤ 0.03 | ≤ 2.00 | ≤ 1.00 | 18.0–20.0 | 8.0–12.0 | — | ≤ 0.10 | — |
| 304H | Austenitic (High C) | 0.04–0.10 | ≤ 2.00 | ≤ 1.00 | 18.0–20.0 | 8.0–10.5 | — | ≤ 0.10 | — |
| 305 | Austenitic | ≤ 0.12 | ≤ 2.00 | ≤ 1.00 | 17.0–19.0 | 10.5–13.0 | — | ≤ 0.10 | — |
| 308 | Austenitic (weld filler chemistry range) | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 19.0–21.0 | 9.0–11.0 | — | ≤ 0.10 | Used mainly as filler; sheet/plate availability is limited |
| 309 | Austenitic (Heat resistant) | ≤ 0.20 | ≤ 2.00 | ≤ 1.00 | 22.0–24.0 | 12.0–15.0 | — | ≤ 0.10 | — |
| 309S | Austenitic (Low C) | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 22.0–24.0 | 12.0–15.0 | — | ≤ 0.10 | — |
| 310 | Austenitic (High temp) | ≤ 0.25 | ≤ 2.00 | ≤ 1.50 | 24.0–26.0 | 19.0–22.0 | — | ≤ 0.10 | — |
| 310S | Austenitic (Low C) | ≤ 0.08 | ≤ 2.00 | ≤ 1.50 | 24.0–26.0 | 19.0–22.0 | — | ≤ 0.10 | — |
| 316 | Austenitic (Mo-bearing) | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤ 0.10 | — |
| 316L | Austenitic (Low C) | ≤ 0.03 | ≤ 2.00 | ≤ 1.00 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤ 0.10 | — |
| 316H | Austenitic (High C) | 0.04–0.10 | ≤ 2.00 | ≤ 1.00 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤ 0.10 | — |
| 316Ti | Austenitic (Ti stabilized) | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤ 0.10 | Ti: ~5×C min to 0.70 max (typ.) |
| 317 | Austenitic (higher Mo) | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 18.0–20.0 | 11.0–15.0 | 3.0–4.0 | ≤ 0.10 | — |
| 317L | Austenitic (Low C) | ≤ 0.03 | ≤ 2.00 | ≤ 1.00 | 18.0–20.0 | 11.0–15.0 | 3.0–4.0 | ≤ 0.10 | — |
| 321 | Austenitic (Ti stabilized) | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 17.0–19.0 | 9.0–12.0 | — | ≤ 0.10 | Ti: ~5×C min to 0.70 max (typ.) |
| 321H | Austenitic (High C, Ti stabilized) | 0.04–0.10 | ≤ 2.00 | ≤ 1.00 | 17.0–19.0 | 9.0–12.0 | — | ≤ 0.10 | Ti: ~5×C min to 0.70 max (typ.) |
| 347 | Austenitic (Nb stabilized) | ≤ 0.08 | ≤ 2.00 | ≤ 1.00 | 17.0–19.0 | 9.0–13.0 | — | ≤ 0.10 | Nb+Ta: ~10×C min to 1.0 max (typ.) |
| 347H | Austenitic (High C, Nb stabilized) | 0.04–0.10 | ≤ 2.00 | ≤ 1.00 | 17.0–19.0 | 9.0–13.0 | — | ≤ 0.10 | Nb+Ta: ~10×C min to 1.0 max (typ.) |
| 409L | Ferritic | ≤ 0.03 | ≤ 1.00 | ≤ 1.00 | 10.5–11.75 | ≤ 0.50 | — | — | Ti stabilized (typ.) |
| 410 | Martensitic | ≤ 0.15 | ≤ 1.00 | ≤ 1.00 | 11.5–13.5 | ≤ 0.75 | — | — | — |
| 410S | Ferritic / Low-C 410 | ≤ 0.08 | ≤ 1.00 | ≤ 1.00 | 11.5–13.5 | ≤ 0.75 | — | — | — |
| 420 | Martensitic | 0.15–0.40 | ≤ 1.00 | ≤ 1.00 | 12.0–14.0 | ≤ 1.00 | — | — | High hardenability |
| 429 | Ferritic | ≤ 0.12 | ≤ 1.00 | ≤ 1.00 | 14.0–16.0 | ≤ 0.50 | — | — | — |
| 430 | Ferritic | ≤ 0.12 | ≤ 1.00 | ≤ 1.00 | 16.0–18.0 | ≤ 0.75 | — | — | — |
| 430Ti | Ferritic (Ti stabilized) | ≤ 0.08 | ≤ 1.00 | ≤ 1.00 | 16.0–18.0 | ≤ 0.75 | — | — | Ti: stabilized (typ.) |
| 439 | Ferritic (stabilized) | ≤ 0.03 | ≤ 1.00 | ≤ 1.00 | 17.0–19.0 | ≤ 0.50 | — | — | Ti/Nb stabilized (typ.) |
| 441 | Ferritic (stabilized) | ≤ 0.03 | ≤ 1.00 | ≤ 1.00 | 17.5–18.5 | ≤ 0.50 | — | — | Ti/Nb stabilized (typ.) |
| 444 | Ferritic (Mo-bearing) | ≤ 0.025 | ≤ 1.00 | ≤ 1.00 | 17.5–19.5 | ≤ 1.00 | 1.75–2.50 | — | Ti/Nb stabilized (typ.) |
| S31803 (Duplex) | Duplex | ≤ 0.030 | ≤ 2.00 | ≤ 1.00 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 | 0.08–0.20 | P ≤ 0.030, S ≤ 0.020 (typ.) |
Note: The above chemistry values are typical industry ranges commonly used for datasheet guidance. Actual limits depend on the governing standard (ASTM/EN/JIS/IS) and mill practice. For J4/J7 (trade grades), chemistry may vary by producer; confirm with the Mill Test Certificate (MTC) for project-critical use.
UNS Codes & Grades
| Stainless Steel Grade | UNS Designation | EN / DIN Equivalent | JIS Equivalent | Steel Category | Remarks |
|---|---|---|---|---|---|
| J4 | — (Trade Grade) | 1.4597 (Approx.) | — | Austenitic (200 Series) | Cu-added, cost-optimized grade; varies by mill |
| J7 | — (Trade Grade) | 1.4598 (Approx.) | — | Austenitic (200 Series) | Improved corrosion vs J4; producer-specific |
| 201 | S20100 | 1.4372 | SUS 201 | Austenitic | Low Ni, Mn substituted |
| 202 | S20200 | 1.4373 | SUS 202 | Austenitic | Higher Mn than 201 |
| 301 | S30100 | 1.4310 | SUS 301 | Austenitic | High strength after cold work |
| 302 | S30200 | 1.4310 (Approx.) | SUS 302 | Austenitic | General-purpose austenitic |
| 304 | S30400 | 1.4301 | SUS 304 | Austenitic | Most widely used SS grade |
| 304L | S30403 | 1.4307 | SUS 304L | Austenitic | Low carbon for welding |
| 304H | S30409 | 1.4948 | SUS 304H | Austenitic | High-temperature service |
| 305 | S30500 | 1.4303 | SUS 305 | Austenitic | Low work hardening rate |
| 308 | S30800 | 1.4312 | — | Austenitic | Mainly welding filler chemistry |
| 309 | S30900 | 1.4828 | SUS 309 | Austenitic (Heat Resistant) | High Cr-Ni for heat resistance |
| 309S | S30908 | 1.4833 | SUS 309S | Austenitic | Low carbon version of 309 |
| 310 | S31000 | 1.4841 | SUS 310 | Austenitic | Excellent oxidation resistance |
| 310S | S31008 | 1.4845 | SUS 310S | Austenitic | Low carbon heat-resistant grade |
| 316 | S31600 | 1.4401 | SUS 316 | Austenitic | Mo-added for corrosion resistance |
| 316L | S31603 | 1.4404 | SUS 316L | Austenitic | Preferred for welding & marine use |
| 316H | S31609 | 1.4919 | SUS 316H | Austenitic | High temperature applications |
| 316Ti | S31635 | 1.4571 | SUS 316Ti | Austenitic | Titanium stabilized |
| 317 | S31700 | 1.4449 | SUS 317 | Austenitic | Higher Mo than 316 |
| 317L | S31703 | 1.4438 | SUS 317L | Austenitic | Low carbon, superior pitting resistance |
| 321 | S32100 | 1.4541 | SUS 321 | Austenitic | Ti stabilized against carbide precipitation |
| 321H | S32109 | 1.4878 | SUS 321H | Austenitic | High carbon heat-resistant version |
| 347 | S34700 | 1.4550 | SUS 347 | Austenitic | Nb stabilized for high-temp service |
| 347H | S34709 | 1.4961 | SUS 347H | Austenitic | High carbon stabilized grade |
| 409L | S40900 | 1.4512 | SUS 409L | Ferritic | Automotive exhaust grade |
| 410 | S41000 | 1.4006 | SUS 410 | Martensitic | Hardenable stainless steel |
| 410S | S41008 | 1.4000 | SUS 410S | Ferritic | Low carbon version of 410 |
| 420 | S42000 | 1.4021 / 1.4028 | SUS 420 | Martensitic | High hardness and wear resistance |
| 429 | S42900 | 1.4510 | SUS 429 | Ferritic | Improved corrosion vs 430 |
| 430 | S43000 | 1.4016 | SUS 430 | Ferritic | Good formability and polishability |
| 430Ti | S43035 | 1.4521 | SUS 430Ti | Ferritic | Titanium stabilized |
| 439 | S43900 | 1.4510 | SUS 439 | Ferritic | Stabilized exhaust grade |
| 441 | S44100 | 1.4509 | SUS 441 | Ferritic | Nb/Ti stabilized |
| 444 | S44400 | 1.4521 | SUS 444 | Ferritic | Mo-bearing ferritic SS |
| S31803 | S31803 | 1.4462 | — | Duplex | High strength & chloride resistance |
Mechanical, Physical & Fabrication Properties
| Grade | Category | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) | Density (g/cm³) | Weldability | Formability | Machinability |
|---|---|---|---|---|---|---|---|---|---|
| J4 | Austenitic (200 Series – Trade) | 520–680 | 260–320 | 40–45 | 170–190 | 7.85 | Good | Very Good | Moderate |
| J7 | Austenitic (200 Series – Trade) | 540–700 | 280–340 | 40–45 | 170–190 | 7.85 | Good | Very Good | Moderate |
| 201 / 202 | Austenitic (200 Series) | 515–750 | 275–345 | 40–45 | 170–200 | 7.85 | Good | Good | Moderate |
| 301 / 302 | Austenitic | 515–860 | 205–310 | 35–40 | 180–220 | 7.93 | Excellent | Excellent | Moderate |
| 304 / 304L | Austenitic | 515–720 | 205–240 | 40–45 | 160–190 | 8.00 | Excellent | Excellent | Moderate |
| 304H | Austenitic (Heat Resistant) | 515–740 | 215–260 | 40 | 170–200 | 8.00 | Good | Good | Moderate |
| 305 / 308 | Austenitic | 520–720 | 205–240 | 40–45 | 160–190 | 8.00 | Excellent | Excellent | Moderate |
| 309 / 309S | Austenitic (Heat Resistant) | 515–690 | 205–240 | 35–40 | 170–200 | 7.98 | Good | Good | Moderate |
| 310 / 310S | Austenitic (High Temp) | 515–700 | 205–240 | 35–40 | 170–200 | 7.90 | Good | Good | Moderate |
| 316 / 316L / 316H / 316Ti | Austenitic (Mo Alloyed) | 515–690 | 205–260 | 40–45 | 160–190 | 8.00 | Excellent | Excellent | Moderate |
| 317 / 317L | Austenitic (High Mo) | 515–690 | 205–260 | 40–45 | 160–190 | 8.02 | Excellent | Excellent | Moderate |
| 321 / 321H | Austenitic (Stabilized) | 515–700 | 205–260 | 35–40 | 170–200 | 7.98 | Excellent | Good | Moderate |
| 347 / 347H | Austenitic (Nb Stabilized) | 515–720 | 205–275 | 35–40 | 170–210 | 7.98 | Excellent | Good | Moderate |
| 409L | Ferritic | 380–430 | 170–205 | 20–25 | 140–170 | 7.70 | Good | Moderate | Good |
| 430 / 430Ti / 429 / 439 / 441 / 444 | Ferritic | 430–480 | 205–275 | 20–30 | 150–190 | 7.70 | Good | Moderate | Good |
| 410 / 410S | Martensitic | 450–700 | 275–450 | 15–25 | 170–220 | 7.75 | Limited | Limited | Good |
| 420 | Martensitic | 650–850 | 350–550 | 10–20 | 200–260 | 7.75 | Poor | Poor | Moderate |
| S31803 (Duplex) | Duplex Stainless Steel | 620–800 | 450–550 | 25–30 | 230–260 | 7.80 | Good | Moderate | Moderate |
Common Names & International Identifiers
| Grade | Common / Trade Name | UNS Designation | EN / DIN Equivalent | ISI / AISI Series | International Identifier / Remarks |
|---|---|---|---|---|---|
| J4 | J4 Stainless Steel | UNS S20153* | EN 1.4618* | 200 Series | Low-Nickel Austenitic, Cost-Optimized Decorative Grade |
| J7 | J7 Stainless Steel | UNS S20200* | EN 1.4371* | 200 Series | Enhanced Corrosion Resistance vs J4 |
| 201 | AISI 201 | UNS S20100 | EN 1.4372 | 200 Series | Low Nickel Austenitic Stainless Steel |
| 202 | AISI 202 | UNS S20200 | EN 1.4373 | 200 Series | Improved Formability vs 201 |
| 301 | AISI 301 | UNS S30100 | EN 1.4310 | 300 Series | High Strength Cold Worked Grade |
| 302 | AISI 302 | UNS S30200 | EN 1.4311 | 300 Series | General Purpose Austenitic SS |
| 304 | 18/8 Stainless Steel | UNS S30400 | EN 1.4301 | 300 Series | Most Widely Used Stainless Steel |
| 304L | Low Carbon 304 | UNS S30403 | EN 1.4307 | 300 Series | Improved Weldability |
| 304H | High Carbon 304 | UNS S30409 | EN 1.4948 | 300 Series | High Temperature Applications |
| 305 | AISI 305 | UNS S30500 | EN 1.4303 | 300 Series | Excellent Deep Drawing Grade |
| 308 | AISI 308 | UNS S30800 | EN 1.4308 | 300 Series | Welding Consumable Grade |
| 309 | AISI 309 | UNS S30900 | EN 1.4828 | 300 Series | Heat Resistant Stainless Steel |
| 309S | Low Carbon 309 | UNS S30908 | EN 1.4833 | 300 Series | Improved Oxidation Resistance |
| 310 | AISI 310 | UNS S31000 | EN 1.4845 | 300 Series | High Temperature & Furnace Grade |
| 310S | Low Carbon 310 | UNS S31008 | EN 1.4841 | 300 Series | Superior Oxidation Resistance |
| 316 | Marine Grade Stainless Steel | UNS S31600 | EN 1.4401 | 300 Series | Molybdenum Bearing Austenitic SS |
| 316L | Low Carbon 316 | UNS S31603 | EN 1.4404 | 300 Series | Enhanced Corrosion Resistance |
| 316H | High Carbon 316 | UNS S31609 | EN 1.4919 | 300 Series | High Temperature Strength |
| 316Ti | Titanium Stabilized 316 | UNS S31635 | EN 1.4571 | 300 Series | Improved Intergranular Corrosion Resistance |
| 317 | AISI 317 | UNS S31700 | EN 1.4449 | 300 Series | High Molybdenum Content |
| 317L | Low Carbon 317 | UNS S31703 | EN 1.4438 | 300 Series | Superior Pitting Resistance |
| 321 | Titanium Stabilized 304 | UNS S32100 | EN 1.4541 | 300 Series | High Temperature Stability |
| 321H | High Carbon 321 | UNS S32109 | EN 1.4878 | 300 Series | Creep Resistant Grade |
| 347 | Niobium Stabilized Stainless Steel | UNS S34700 | EN 1.4550 | 300 Series | High Temperature & Pressure Use |
| 347H | High Carbon 347 | UNS S34709 | EN 1.4961 | 300 Series | Enhanced Creep Strength |
| 409L | Automotive Grade SS | UNS S40903 | EN 1.4512 | 400 Series | Exhaust Systems & Structural Use |
| 410 | Martensitic Stainless Steel | UNS S41000 | EN 1.4006 | 400 Series | Hardenable Stainless Steel |
| 410S | Low Carbon 410 | UNS S41008 | EN 1.4000 | 400 Series | Improved Weldability |
| 420 | Cutlery Grade SS | UNS S42000 | EN 1.4021 / 1.4028 | 400 Series | High Hardness Martensitic Steel |
| 429 | Ferritic Stainless Steel | UNS S42900 | EN 1.4510 | 400 Series | Improved Formability Ferritic Grade |
| 430 | Classic Ferritic SS | UNS S43000 | EN 1.4016 | 400 Series | Decorative & Kitchen Applications |
| 430Ti | Titanium Stabilized 430 | UNS S43932 | EN 1.4510 | 400 Series | Improved Weldability |
| 439 | Stabilized Ferritic SS | UNS S43932 | EN 1.4510 | 400 Series | Automotive & Structural Use |
| 441 | Niobium Stabilized Ferritic | UNS S44100 | EN 1.4509 | 400 Series | High Temperature Exhaust Grade |
| 444 | High Chromium Ferritic | UNS S44400 | EN 1.4521 | 400 Series | Excellent Pitting Resistance |
| S31803 | Duplex Stainless Steel 2205 | UNS S31803 | EN 1.4462 | Duplex | High Strength & Chloride Resistance |
Standards & International Equivalents
| Grade | ASTM / ASME | UNS | EN (European) | DIN (Germany) | JIS (Japan) | IS (India) | Remarks / International Usage |
|---|---|---|---|---|---|---|---|
| J4 | ASTM A240* | S20153* | EN 1.4618* | DIN X12CrMnNiN17-7-5* | JIS SUS201J4* | IS 6911* | Trade Grade, Architectural & Decorative Applications |
| J7 | ASTM A240* | S20200* | EN 1.4371* | DIN X12CrMnNiN18-7-5* | JIS SUS202* | IS 6911* | Enhanced Corrosion Resistance vs J4 |
| 201 | ASTM A240 / A480 | S20100 | EN 1.4372 | DIN X12CrMnNiN17-7-5 | JIS SUS201 | IS 6911 | Low Nickel Austenitic Stainless Steel |
| 202 | ASTM A240 / A480 | S20200 | EN 1.4373 | DIN X12CrMnNiN18-7-5 | JIS SUS202 | IS 6911 | Improved Strength & Formability |
| 301 | ASTM A240 | S30100 | EN 1.4310 | DIN X10CrNi18-8 | JIS SUS301 | IS 6911 | High Strength Cold Worked Grade |
| 302 | ASTM A240 | S30200 | EN 1.4311 | DIN X12CrNi18-8 | JIS SUS302 | IS 6911 | General Purpose Austenitic Grade |
| 304 | ASTM A240 / A480 | S30400 | EN 1.4301 | DIN X5CrNi18-10 | JIS SUS304 | IS 6911 | Most Widely Used Stainless Steel |
| 304L | ASTM A240 | S30403 | EN 1.4307 | DIN X2CrNi18-9 | JIS SUS304L | IS 6911 | Low Carbon, Excellent Weldability |
| 304H | ASTM A240 | S30409 | EN 1.4948 | DIN X6CrNi18-11 | JIS SUS304H | IS 6911 | High Temperature Applications |
| 305 | ASTM A240 | S30500 | EN 1.4303 | DIN X8CrNi19-9 | JIS SUS305 | IS 6911 | Excellent Deep Drawing Properties |
| 308 | ASTM A240 | S30800 | EN 1.4308 | DIN X5CrNi19-10 | JIS SUS308 | IS 6911 | Primarily Used in Welding Consumables |
| 309 / 309S | ASTM A240 | S30900 / S30908 | EN 1.4828 / 1.4833 | DIN X15CrNiSi20-12 | JIS SUS309 / SUS309S | IS 6911 | Heat Resistant Stainless Steel |
| 310 / 310S | ASTM A240 | S31000 / S31008 | EN 1.4845 / 1.4841 | DIN X15CrNi25-20 | JIS SUS310 / SUS310S | IS 6911 | High Temperature Furnace Grade |
| 316 / 316L / 316H | ASTM A240 | S31600 / S31603 / S31609 | EN 1.4401 / 1.4404 / 1.4919 | DIN X5CrNiMo17-12-2 | JIS SUS316 / 316L | IS 6911 | Marine & Chemical Grade Stainless Steel |
| 316Ti | ASTM A240 | S31635 | EN 1.4571 | DIN X6CrNiMoTi17-12-2 | JIS SUS316Ti | IS 6911 | Titanium Stabilized Grade |
| 317 / 317L | ASTM A240 | S31700 / S31703 | EN 1.4449 / 1.4438 | DIN X5CrNiMo18-15-4 | JIS SUS317 | IS 6911 | High Molybdenum Content |
| 321 / 321H | ASTM A240 | S32100 / S32109 | EN 1.4541 / 1.4878 | DIN X6CrNiTi18-10 | JIS SUS321 | IS 6911 | Titanium Stabilized Austenitic Steel |
| 347 / 347H | ASTM A240 | S34700 / S34709 | EN 1.4550 / 1.4961 | DIN X6CrNiNb18-10 | JIS SUS347 | IS 6911 | Niobium Stabilized High Temp Grade |
| 409L | ASTM A240 | S40903 | EN 1.4512 | DIN X2CrTi12 | JIS SUS409L | IS 6911 | Automotive Exhaust Grade |
| 410 / 410S | ASTM A240 | S41000 / S41008 | EN 1.4006 / 1.4000 | DIN X12Cr13 | JIS SUS410 | IS 6911 | Hardenable Martensitic Steel |
| 420 | ASTM A240 | S42000 | EN 1.4021 / 1.4028 | DIN X20Cr13 | JIS SUS420 | IS 6911 | Cutlery & Tooling Grade |
| 429 / 430 / 430Ti / 439 / 441 / 444 | ASTM A240 | S42900 / S43000 / S43932 / S44100 / S44400 | EN 1.4016 / 1.4510 / 1.4509 / 1.4521 | DIN X6Cr17 | JIS SUS430 / 439 | IS 6911 | Ferritic Stainless Steel Series |
| S31803 (Duplex) | ASTM A240 | S31803 | EN 1.4462 | DIN X2CrNiMoN22-5-3 | JIS SUS329J3L | IS 7904 | Duplex SS – High Strength & Corrosion Resistance |
Applications
| Stainless Steel Grade | Typical Applications (Sheets & Plates) | Industry Usage |
|---|---|---|
| J4, J7 | Decorative panels, cladding, elevator sheets, furniture, kitchen equipment | Architecture, Interior Design, Consumer Goods |
| 201, 202 | Structural sheets, storage tanks, rail coaches, household appliances | Construction, Railways, Appliances |
| 301, 302 | Cold-worked components, springs, fasteners, precision panels | Automotive, Engineering, Hardware |
| 304 | Food processing equipment, kitchenware, chemical containers, architectural sheets | Food & Beverage, Chemical, Architecture |
| 304L | Welded tanks, pressure vessels, heat exchangers, pharmaceutical equipment | Pharma, Chemical, Process Industries |
| 304H | Boilers, heat treatment equipment, high-temperature structural components | Power Plants, Heat Processing |
| 305 | Deep drawn parts, spinning applications, complex formed components | Metal Forming, Electrical Components |
| 308 | Weld overlay plates, fabrication backing sheets | Welding & Fabrication |
| 309 / 309S | Furnace linings, heat shields, exhaust systems, refractory supports | Heat Treatment, Metallurgy |
| 310 / 310S | High-temperature furnaces, kiln plates, radiant tubes, incinerators | Thermal Processing, Energy |
| 316 | Marine sheets, chemical vessels, food-grade equipment, medical panels | Marine, Chemical, Medical |
| 316L | Pharmaceutical reactors, cleanroom panels, offshore structures | Pharma, Offshore, Biotechnology |
| 316H | High-temperature pressure parts, refinery equipment | Oil & Gas, Power Generation |
| 316Ti | Heat exchangers, exhaust manifolds, chemical processing plates | Chemical, Automotive |
| 317 / 317L | Corrosive chemical tanks, pulp & paper equipment, scrubbers | Chemical, Pulp & Paper |
| 321 | Aircraft exhausts, expansion joints, high-temperature ducting | Aerospace, Heat Equipment |
| 321H | High-pressure steam lines, thermal processing sheets | Power Plants, Refineries |
| 347 / 347H | Petrochemical plants, boiler plates, high-temperature welded structures | Petrochemical, Energy |
| 409L | Automotive exhaust systems, mufflers, catalytic converter shells | Automotive |
| 410 / 410S | Turbine components, wear-resistant plates, structural supports | Engineering, Power |
| 420 | Cutlery blanks, surgical instruments, tooling plates | Medical, Tooling |
| 429, 430 | Appliance panels, automotive trims, architectural sheets | Home Appliances, Architecture |
| 430Ti, 439, 441 | Automotive exhaust components, heat-resistant panels | Automotive, Thermal Systems |
| 444 | Hot water tanks, desalination units, corrosion-resistant structures | Water Treatment, Marine |
| S31803 (Duplex) | Offshore platforms, pressure vessels, desalination plants, bridges | Offshore, Marine, Infrastructure |
Common Stainless Steel Sheets & Plates Dimensions Chart
| Common Stainless Steel Sheets & Plates Size Range (Industry Standard Supply) | |||||
|---|---|---|---|---|---|
| Product Form | Thickness Range (mm) | Standard Width (mm) | Standard Length (mm) | Common Supply Condition | Notes |
| Sheets (Cold Rolled) | 0.30 – 3.00 | 1000 / 1219 / 1250 / 1500 | 2000 / 2438 / 2500 / 3000 | 2B / BA / No.4 / HL / Mirror | Best for surface finish, tight tolerances, laser cutting & fabrication |
| Plates (Hot Rolled) | 3.00 – 80.00 | 1250 / 1500 / 2000 | 2500 / 3000 / 6000 | No.1 / Pickled / Shot Blasted | Heavy fabrication, structural, pressure vessels (as per grade/standard) |
| Coils (CR / HR) | 0.30 – 16.00 | 1000 / 1219 / 1250 / 1500 | Coil form | 2B / BA / No.1 | Ideal for slitting, stamping, roll forming |
| Custom Cut-to-Size | 0.30 – 80.00 | As required | As required | As specified | Plasma / laser / waterjet / shearing available based on thickness |
| Theoretical Weight Chart — Stainless Steel Sheets & Plates (Density = 8.00 g/cm³) | ||||||
|---|---|---|---|---|---|---|
| Thickness (mm) | Weight (kg/m²) | 1000 × 2000 (kg) | 1219 × 2438 (kg) | 1250 × 2500 (kg) | 1500 × 3000 (kg) | Remarks |
| 0.50 | 4.00 | 8.00 | 11.90 | 12.50 | 18.00 | Common CR decorative / fabrication sheet |
| 0.80 | 6.40 | 12.80 | 19.03 | 20.00 | 28.80 | Kitchen equipment / panels |
| 1.00 | 8.00 | 16.00 | 23.80 | 25.00 | 36.00 | General fabrication |
| 1.20 | 9.60 | 19.20 | 28.56 | 30.00 | 43.20 | Popular thickness for enclosures |
| 1.50 | 12.00 | 24.00 | 35.70 | 37.50 | 54.00 | Fabrication / supports |
| 2.00 | 16.00 | 32.00 | 47.61 | 50.00 | 72.00 | General structural & heavy fabrication |
| 2.50 | 20.00 | 40.00 | 59.51 | 62.50 | 90.00 | Machine bases / brackets |
| 3.00 | 24.00 | 48.00 | 71.41 | 75.00 | 108.00 | Transition thickness (sheet → plate) |
| 4.00 | 32.00 | 64.00 | 95.21 | 100.00 | 144.00 | Hot rolled plate commonly stocked |
| 5.00 | 40.00 | 80.00 | 119.02 | 125.00 | 180.00 | Fabrication plate |
| 6.00 | 48.00 | 96.00 | 142.82 | 150.00 | 216.00 | Pressure parts / heavy fabrication |
| 8.00 | 64.00 | 128.00 | 190.43 | 200.00 | 288.00 | Skids / base frames |
| 10.00 | 80.00 | 160.00 | 238.04 | 250.00 | 360.00 | Common heavy plate |
| 12.00 | 96.00 | 192.00 | 285.65 | 300.00 | 432.00 | Structural / vessel supports |
| 16.00 | 128.00 | 256.00 | 380.86 | 400.00 | 576.00 | Very heavy fabrication |
| 20.00 | 160.00 | 320.00 | 476.08 | 500.00 | 720.00 | Base plates / thick sections |
| 25.00 | 200.00 | 400.00 | 595.10 | 625.00 | 900.00 | Heavy duty fabrication |
| 30.00 | 240.00 | 480.00 | 714.12 | 750.00 | 1080.00 | Machine beds / foundations |
| 40.00 | 320.00 | 640.00 | 952.16 | 1000.00 | 1440.00 | Extra heavy plate |
| 50.00 | 400.00 | 800.00 | 1190.20 | 1250.00 | 1800.00 | Extra heavy plate |
| A. Standard Sheet & Plate Sizes (Metric & Imperial) | |||
|---|---|---|---|
| Size (mm) | Size (inches) | Typical Classification | Notes |
| 1000 × 2000 | ≈ 39.37″ × 78.74″ | Sheet / Plate (by thickness) | Common stock size |
| 1220 × 2440 | 4′ × 8′ | Sheet / Plate | Global standard sheet size |
| 1500 × 3000 | ≈ 59.06″ × 118.11″ | Sheet / Plate | Popular for fabrication & laser cutting |
| 2000 × 4000 | ≈ 78.74″ × 157.48″ | Plate (often medium/thick) | For large panels/plates |
| 2500 × 1250 | ≈ 98.43″ × 49.21″ | Sheet / Plate | Wide format for nesting |
| 3000 × 1500 | ≈ 118.11″ × 59.06″ | Sheet / Plate | Common for architectural use |
| 4000 × 2000 | ≈ 157.48″ × 78.74″ | Plate | Large-format plate for heavy-duty projects |
| B. Common Thickness Ranges & Typical Applications | ||
|---|---|---|
| Category | Thickness Range | Typical Uses |
| Thin sheets | 0.1 mm to 6 mm | Cladding, decorative panels, lightweight structures |
| Medium plates | 6 mm to 25 mm | Pressure vessels, kitchen equipment, tanks |
| Thick plates | 25 mm to 60 mm+ | Marine platforms, chemical reactors, heavy machinery |
| C. Common Stock Widths & Lengths | ||
|---|---|---|
| Widths (mm) | Typical Length Range (mm) | Remarks |
| 1000 | 2000 to 6000 | Standard coil/stock width |
| 1250 | 2000 to 6000 | Common sheet width (pairs with 2500 mm length) |
| 1500 | 2500 to 6000 | Popular for 3000 mm length |
| 2000 | 3000 to 6000 | Often used with 4000 mm length plate |
| D. Key Factors Affecting Availability | |
|---|---|
| Factor | Details |
| Supplier & Grade | Size & thickness depend on supplier and grade (e.g., 304, 316, Duplex). |
| Application | Project requirements dictate dimensions; custom cut-to-size is commonly available. |
| Finish | Finishes like 2B, BA, satin/No.4, HL, mirror can influence availability and lead time. |
