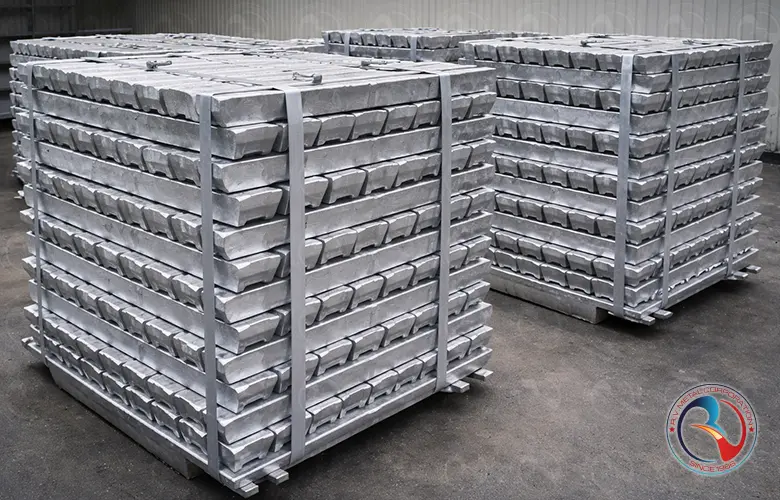

Aluminium Ingots
Product Overview
Aluminium ingots are the primary raw material used for casting, remelting, alloying, and downstream manufacturing across automotive, electrical, construction, engineering, and foundry industries. R V Metal Corporation supplies both primary aluminium ingots produced from virgin aluminium and secondary aluminium ingots manufactured through controlled recycling processes, ensuring consistent chemical composition, clean metallurgy, and reliable performance. Our aluminium ingots are available in commercial purity and alloyed grades suitable for pressure die casting, gravity casting, extrusion billet production, rolling, and general foundry applications. Depending on grade selection, aluminium ingots offer excellent castability, good corrosion resistance, high thermal and electrical conductivity, and a favourable strength-to-weight ratio. All supplies are sourced from approved producers and are supported with material test certificates, heat traceability, and packing suitable for domestic and export requirements.
Technical Specifications
| Parameter | Specification / Details |
|---|---|
| Product Form | Aluminium Ingots (Primary & Secondary) |
| Manufacturing Route | Primary Smelting (Virgin Aluminium) / Controlled Recycling & Remelting (Secondary Aluminium) |
| Alloy Classification | Commercial Purity Aluminium & Alloyed Grades (Casting & Remelting Alloys) |
| Common Alloy Series | 1xxx (Pure Aluminium), 3xxx, 4xxx, 5xxx, 6xxx, 7xxx Series (as per application) |
| Typical Grades | A7 / A8 / A9, ADC12, LM Series, AlSi Alloys, AA 1100, AA 1050, AA 6061 (as applicable) |
| Aluminium Content | 99.7% – 99.9% (Primary) | As per alloy chemistry (Secondary) |
| Ingot Weight | Approx. 6 kg – 25 kg per ingot (custom weights available) |
| Ingot Shape | Trapezoidal / Rectangular / Sows / Notched Ingots |
| Surface Condition | Clean cast surface, free from excessive oxide, cracks, or contamination |
| Density | Approx. 2.70 g/cm³ |
| Melting Range | 660°C (Pure Aluminium) | Varies by alloy composition |
| Impurity Control | Controlled limits for Fe, Si, Cu, Mg, Zn, Pb, Sn (as per grade) |
| Quality Inspection | Chemical Analysis (Spectrometer), Visual Inspection, Weight Check |
| Standards | ASTM B179, ASTM B318, EN 1676, IS 21, ISO 3522 |
| Documentation | Mill Test Certificate (EN 10204 3.1), Heat / Batch Traceability |
| Packing | Bundled / Palletized / Export Seaworthy Packing |
| Typical Applications | Foundries, Die Casting, Extrusion Billet Production, Rolling Mills, Alloying |
Chemical Composition
| Grade / Alloy | Al (%) | Si (%) | Fe (%) | Cu (%) | Mn (%) | Mg (%) | Zn (%) | Pb (%) | Sn (%) | Others (%) |
|---|---|---|---|---|---|---|---|---|---|---|
| A7 (Primary Aluminium) | ≥ 99.70 | ≤ 0.20 | ≤ 0.20 | ≤ 0.02 | ≤ 0.03 | ≤ 0.02 | ≤ 0.03 | ≤ 0.02 | ≤ 0.02 | ≤ 0.03 |
| A8 (Primary Aluminium) | ≥ 99.80 | ≤ 0.15 | ≤ 0.15 | ≤ 0.02 | ≤ 0.02 | ≤ 0.02 | ≤ 0.03 | ≤ 0.02 | ≤ 0.02 | ≤ 0.02 |
| A9 (Primary Aluminium) | ≥ 99.90 | ≤ 0.10 | ≤ 0.10 | ≤ 0.01 | ≤ 0.01 | ≤ 0.01 | ≤ 0.02 | ≤ 0.01 | ≤ 0.01 | ≤ 0.02 |
| AA 1100 | ≥ 99.00 | ≤ 0.95 | ≤ 0.95 | 0.05 – 0.20 | ≤ 0.05 | – | ≤ 0.10 | ≤ 0.05 | ≤ 0.05 | ≤ 0.15 |
| ADC12 (Al–Si–Cu) | Balance | 9.6 – 12.0 | ≤ 1.3 | 1.5 – 3.5 | ≤ 0.50 | ≤ 0.30 | ≤ 1.00 | ≤ 0.30 | ≤ 0.20 | ≤ 0.50 |
| LM6 (Al–Si) | Balance | 10.0 – 13.0 | ≤ 0.60 | ≤ 0.10 | ≤ 0.50 | ≤ 0.10 | ≤ 0.10 | ≤ 0.10 | ≤ 0.05 | ≤ 0.30 |
| LM25 (Al–Si–Mg) | Balance | 6.5 – 7.5 | ≤ 0.50 | ≤ 0.10 | ≤ 0.50 | 0.20 – 0.45 | ≤ 0.10 | ≤ 0.10 | ≤ 0.05 | ≤ 0.30 |
| AlSi7Mg | Balance | 6.5 – 7.5 | ≤ 0.55 | ≤ 0.10 | ≤ 0.45 | 0.25 – 0.45 | ≤ 0.10 | ≤ 0.10 | ≤ 0.05 | ≤ 0.30 |
UNS Codes & Grades
| Aluminium Ingot Type | Common Grade / Name | UNS Designation | AA / ASTM Equivalent | EN / ISO Equivalent | Primary Usage |
|---|---|---|---|---|---|
| Primary Aluminium Ingot | A7 | A99700 | AA 1070 | EN AW-1070 / ISO Al99.7 | Electrical, extrusion billets, remelting |
| Primary Aluminium Ingot | A8 | A99800 | AA 1080 | EN AW-1080 / ISO Al99.8 | High purity casting, foil stock |
| Primary Aluminium Ingot | A9 | A99900 | AA 1090 | EN AW-1090 / ISO Al99.9 | Critical electrical & chemical applications |
| Commercial Pure Aluminium | 1100 | A91100 | AA 1100 | EN AW-1100 / ISO Al99.0 | General fabrication, cookware, chemical tanks |
| Al-Si Casting Alloy | ADC12 | A38300 | AA 383 | EN AC-46000 / ISO AlSi9Cu3 | Automotive & die-casting components |
| Al-Si Casting Alloy | LM6 | A41300 | AA 413 | EN AC-44100 / ISO AlSi12 | Corrosion-resistant castings, marine parts |
| Al-Si-Mg Casting Alloy | LM25 | A35600 | AA 356 | EN AC-42100 / ISO AlSi7Mg | Structural castings, heat-treated parts |
| Al-Si-Mg Casting Alloy | AlSi7Mg | A35600 | AA 356 | EN AC-42100 / ISO AlSi7Mg | Aerospace & high-strength castings |
| Al-Si-Cu Casting Alloy | 380 | A38000 | AA 380 | EN AC-46000 | High-pressure die casting |
| Secondary Aluminium Ingot | Secondary Casting Grade | Varies (Scrap-Based) | Customer-Specified | Customer-Specified | General foundry & remelting applications |
Mechanical, Physical & Fabrication Properties
| Property Category | Property | Typical Value / Range | Applicable Aluminium Ingot Type | Remarks |
|---|---|---|---|---|
| Mechanical Properties | Tensile Strength | 40 – 320 MPa (after casting & processing) | Primary & Casting Alloys | Ingots are remelt stock; strength depends on final product & heat treatment |
| Yield Strength | 20 – 280 MPa | Al-Si / Al-Mg / Al-Cu Alloys | Not a supply-controlled property for ingots | |
| Elongation | 1% – 25% | All aluminium ingots | Determined after casting, not ingot stage | |
| Hardness (Brinell) | 20 – 110 HB | Casting & Alloy Ingots | Depends on alloy chemistry and cooling rate | |
| Impact Resistance | Moderate to Good | Al-Si & Al-Mg Alloys | Enhanced with Mg-bearing alloys | |
| Physical Properties | Density | 2.65 – 2.75 g/cm³ | All aluminium ingots | Varies slightly with alloying elements |
| Melting Range | 580°C – 660°C | All alloys | Pure aluminium melts closer to 660°C | |
| Thermal Conductivity | 120 – 235 W/m·K | Primary aluminium ingots | High conductivity in high-purity grades | |
| Electrical Conductivity | 30 – 65 % IACS | Pure & commercial aluminium | Used for electrical remelt applications | |
| Coefficient of Thermal Expansion | 22 – 24 µm/m·K | All aluminium alloys | Important for casting dimensional stability | |
| Corrosion Resistance | Excellent (natural oxide layer) | Pure & Al-Mg alloys | Reduced slightly in high Cu alloys | |
| Fabrication Properties | Castability | Excellent | Al-Si, Al-Si-Mg Ingots | Silicon improves fluidity & mold filling |
| Machinability | Fair to Good | Al-Si-Cu alloys | Improves after casting & heat treatment | |
| Weldability | Good to Moderate | Al-Mg & Al-Si alloys | High Cu alloys have lower weldability | |
| Heat Treatability | Applicable (Alloy dependent) | Al-Si-Mg, Al-Cu alloys | Common tempers: T5, T6 after casting | |
| Hot Workability | Excellent | Primary aluminium ingots | Used for extrusion billet conversion | |
| Fluidity (Molten State) | High (Al-Si alloys) | LM6, ADC12, A356 | Critical for die & gravity casting | |
| Remelt Efficiency | 92% – 98% | Primary & clean secondary ingots | Loss depends on furnace practice & dross control |
Common Names & International Identifiers
| Common Name | Aluminium Type | Alloy Series | UNS Designation | AA / ASTM Designation | EN / ISO Equivalent | Typical Industry Usage |
|---|---|---|---|---|---|---|
| Primary Aluminium Ingot | High Purity Aluminium | 1xxx | A91100 / A91050 | AA 1100 / AA 1050 | EN AW-1050 / ISO Al99.5 | Electrical conductors, extrusion billets, remelt stock |
| Commercial Aluminium Ingot | Commercial Purity | 1xxx | A91190 | AA 1199 | EN AW-1199 | General foundry use, rolling, extrusion feedstock |
| Aluminium Silicon Ingot | Cast Alloy | 4xxx | A94043 | AA 4043 | EN AC-43000 / ISO AlSi5 | Welding wire, automotive castings, general casting |
| LM6 Aluminium Ingot | High Silicon Casting Alloy | Al-Si | A41300 | AA 413 | EN AC-44100 / ISO AlSi12 | Marine castings, corrosion-resistant components |
| ADC12 Aluminium Ingot | Die Casting Alloy | Al-Si-Cu | A38300 | AA 383 | EN AC-46000 | Automotive & electrical die-cast components |
| A356 Aluminium Ingot | Heat-Treatable Casting Alloy | Al-Si-Mg | A93560 | AA A356 | EN AC-42100 / ISO AlSi7Mg | Automotive, aerospace & structural castings |
| Aluminium Magnesium Ingot | Corrosion-Resistant Alloy | 5xxx | A95052 | AA 5052 | EN AW-5052 / ISO AlMg2.5 | Marine castings, pressure vessels, tanks |
| Aluminium Copper Ingot | High Strength Alloy | 2xxx | A92014 | AA 2014 | EN AW-2014 / ISO AlCu4Mg1 | Automotive, aerospace forgings & castings |
| Secondary Aluminium Ingot | Recycled Aluminium | Mixed Casting Alloys | – | As per buyer chemistry | As per EN / ISO limits | Die casting, general foundry applications |
| Foundry Aluminium Ingot | Custom Casting Chemistry | Al-Si / Al-Si-Cu | Custom | Custom | As agreed | Gravity casting, sand casting, permanent molds |
Standards & International Equivalents
| Aluminium Ingot Category | ASTM / AA Standard (USA) | EN Standard (Europe) | ISO Standard | JIS Standard (Japan) | BS / IS Equivalent | Typical Grade Examples |
|---|---|---|---|---|---|---|
| Primary Aluminium Ingots (High Purity) | ASTM B928 / AA 1050, 1100 | EN 573 / EN 485 | ISO 209-1 | JIS H2100 | BS EN 573 / IS 737 | AA 1050, 1060, 1070, 1100 |
| Commercial Purity Aluminium Ingots | ASTM B179 | EN 576 | ISO 3522 | JIS H2110 | IS 736 | AA 1199, 1200 |
| Aluminium–Silicon Casting Ingots | ASTM B179 / ASTM B26 | EN 1706 | ISO 3522 | JIS H2118 | BS EN 1706 | A356, 4043, LM6 |
| Aluminium Die Casting Ingots | ASTM B85 | EN 1706 | ISO 3522 | JIS H5302 | BS EN 1706 | AA 380, 383, ADC12 |
| Aluminium–Silicon–Magnesium Ingots | ASTM B26 | EN 1706 | ISO 3522 | JIS H5202 | BS EN 1706 | A356, AlSi7Mg |
| Aluminium–Copper Casting Ingots | ASTM B26 | EN 1706 | ISO 3522 | JIS H5202 | BS EN 1706 | AA 2014, AlCu4Mg |
| Aluminium–Magnesium Ingots | ASTM B928 | EN 573 / EN 1706 | ISO 3522 | JIS H2118 | IS 737 | AA 5052, AlMg2.5 |
| Secondary / Recycled Aluminium Ingots | ASTM B179 (Buyer Chemistry) | EN 1706 | ISO 3522 | JIS H2118 | As agreed | Customized foundry alloys |
| Foundry Aluminium Ingots (Custom Chemistry) | ASTM B179 / B26 | EN 1706 | ISO 3522 | JIS H2118 | BS EN 1706 | LM6, LM25, ADC12 |
Applications
| Aluminium Ingot Type | Primary Application Area | Typical End-Use Industries | Manufactured Products | Key Performance Requirements |
|---|---|---|---|---|
| Primary Aluminium Ingots (High Purity) | Rolling, Extrusion, Forging Feedstock | Electrical, Packaging, Construction | Sheets, Foils, Busbars, Conductors | High conductivity, low impurities, uniform grain |
| Commercial Purity Aluminium Ingots | General Fabrication & Forming | HVAC, Appliance, Consumer Goods | Panels, Casings, Heat Exchanger Parts | Formability, corrosion resistance |
| Aluminium–Silicon Casting Ingots | Gravity & Sand Casting | Automotive, Pumps, Marine | Engine Blocks, Housings, Impellers | Good fluidity, low shrinkage, castability |
| Aluminium Die-Casting Ingots | High-Pressure Die Casting (HPDC) | Automotive, Electronics, Electrical | Gear Housings, Motor Covers, Enclosures | Dimensional accuracy, surface finish |
| Aluminium–Silicon–Magnesium Ingots | Structural Casting & Heat-Treated Parts | Aerospace, Automotive, Defense | Suspension Arms, Structural Brackets | High strength-to-weight ratio |
| Aluminium–Copper Casting Ingots | High-Strength Cast Components | Aerospace, Heavy Engineering | Aircraft Components, Load-Bearing Parts | High mechanical strength, fatigue resistance |
| Aluminium–Magnesium Ingots | Corrosion-Resistant Fabrication | Marine, Shipbuilding, Storage Tanks | Deck Panels, Fuel Tanks | Excellent corrosion resistance |
| Foundry Aluminium Ingots | Custom Alloy Casting | OEM Foundries, Industrial Casting | Customized Cast Parts | Controlled chemistry, repeatability |
| Secondary / Recycled Aluminium Ingots | Cost-Effective Casting Applications | Automotive, Construction, General Engineering | Non-Critical Castings, Structural Parts | Cost efficiency, acceptable impurity limits |
Common Aluminium Ingots – Sizes & Theoretical Weight Chart
| Ingot Type | Typical Dimensions (L × W × H) | Approx. Weight per Piece (kg) | Common Shape / Form | Typical Applications | Notes |
|---|---|---|---|---|---|
| P-Ingot (Primary Aluminium Ingot) | 600 × 140 × 80 mm | 22 – 25 kg | Rectangular | Rolling, extrusion, remelting | Most widely traded primary ingot |
| T-Ingot | 700 × 180 × 90 mm | 28 – 32 kg | T-Section | Foundry & casting applications | Easy stacking and handling |
| Sow Ingot (Large Ingot) | 900 × 350 × 200 mm | 700 – 1000 kg | Large block / sow | Large foundries, alloying plants | Broken into smaller charges |
| Notched Bar Ingot | 750 × 150 × 75 mm | 20 – 25 kg | Rectangular with notches | Die casting, alloy preparation | Easy breaking at notch points |
| Foundry Alloy Ingot | 600 × 160 × 90 mm | 18 – 30 kg | Rectangular / trapezoidal | Automotive & industrial castings | Pre-alloyed chemistry |
| Secondary / Recycled Aluminium Ingot | Varies by producer | 20 – 30 kg | Rectangular | Non-critical casting applications | Weight varies with recycling source |
