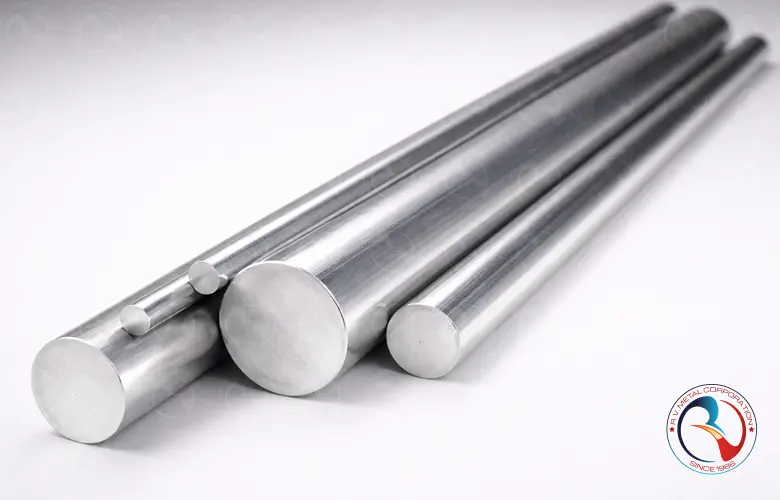

Aluminium Rods
Product Overview
Aluminium rods are solid cylindrical products widely used for precision machining, structural components, and engineering applications where strength, corrosion resistance, and dimensional stability are critical. R V Metal Corporation supplies aluminium rods in a broad range of commercial, heat-treatable, and high-strength alloys, manufactured and sourced in accordance with ASTM, EN, IS, and international standards. Available in extruded and drawn forms, our aluminium rods offer excellent machinability, consistent mechanical properties, and uniform surface finish across the length, making them suitable for CNC machining, forging, fabrication, and general engineering use.
Depending on the alloy and temper, aluminium rods provide an optimal balance of lightweight strength, corrosion resistance, thermal conductivity, and workability. Commonly supplied grades such as 6061, 6082, 7075, 2014, and 5083 cater to industries including automotive, aerospace, electrical, marine, construction, and industrial machinery. R V Metal Corporation offers aluminium rods in standard and cut-to-length sizes with full traceability, Mill Test Certificates, and export-ready packing to meet the demands of domestic and international projects.
Technical Specifications
| Parameter | Specification / Details |
|---|---|
| Product Form | Solid Aluminium Rods / Bars (Round) |
| Manufacturing Process | Extruded / Drawn / Hot Rolled (depending on diameter & alloy) |
| Available Alloy Series | 1xxx, 2xxx, 3xxx, 5xxx, 6xxx, 7xxx Series |
| Common Grades | 1100, 2014, 2024, 3003, 5052, 5083, 6061, 6063, 6082, 7075 |
| Temper Condition | F, O, T4, T5, T6, T651 (as applicable) |
| Diameter Range | 6 mm to 400 mm (custom sizes available on request) |
| Standard Length | 1000 mm, 2000 mm, 3000 mm, 6000 mm & Cut-to-Length |
| Dimensional Tolerance | As per ASTM / EN / IS standards or customer-specified tolerances |
| Straightness | Controlled for machining & precision applications |
| Surface Finish | Mill Finish / Drawn Finish / Machined Finish (on request) |
| Density | Approx. 2.70 g/cm³ (varies slightly by alloy) |
| Mechanical Properties | Alloy & temper dependent (high strength available in 2xxx & 7xxx series) |
| Machinability | Good to Excellent (best in 2xxx, 6xxx & 7xxx series) |
| Weldability | Good in 5xxx & 6xxx series; limited in high-strength 7xxx series |
| Corrosion Resistance | Excellent in 5xxx & 6xxx series; moderate in 2xxx & 7xxx series |
| Heat Treatable | Yes (2xxx, 6xxx, 7xxx) / No (1xxx, 3xxx, 5xxx) |
| Applicable Standards | ASTM B221, ASTM B211, EN 573, EN 755, IS 733 |
| Testing & Inspection | Chemical Analysis, Dimensional Inspection, Mechanical Testing (on request) |
| Certification | Mill Test Certificate (EN 10204 3.1), Heat / Batch Traceability |
| Packing | HDPE Wrapped, Wooden Crates / Pallets, Export Seaworthy Packing |
| Typical Applications | CNC Machining, Shafts, Pins, Fasteners, Structural & Engineering Components |
Chemical Composition
| Alloy / Grade | Aluminium (Al) % | Copper (Cu) % | Magnesium (Mg) % | Silicon (Si) % | Manganese (Mn) % | Zinc (Zn) % | Iron (Fe) % | Chromium (Cr) % | Others % (Each / Total) |
|---|---|---|---|---|---|---|---|---|---|
| 1100 (1xxx Series) | ≥ 99.0 | ≤ 0.05 | ≤ 0.05 | ≤ 0.95 | ≤ 0.05 | ≤ 0.10 | ≤ 0.95 | – | 0.05 / 0.15 |
| 2014 (2xxx Series) | Balance | 3.9 – 5.0 | 0.2 – 0.8 | 0.5 – 1.2 | 0.4 – 1.2 | ≤ 0.25 | ≤ 0.7 | ≤ 0.10 | 0.05 / 0.15 |
| 2024 (2xxx Series) | Balance | 3.8 – 4.9 | 1.2 – 1.8 | ≤ 0.50 | 0.3 – 0.9 | ≤ 0.25 | ≤ 0.50 | ≤ 0.10 | 0.05 / 0.15 |
| 3003 (3xxx Series) | Balance | ≤ 0.20 | ≤ 0.05 | ≤ 0.60 | 1.0 – 1.5 | ≤ 0.10 | ≤ 0.70 | – | 0.05 / 0.15 |
| 5052 (5xxx Series) | Balance | ≤ 0.10 | 2.2 – 2.8 | ≤ 0.25 | ≤ 0.10 | ≤ 0.10 | ≤ 0.40 | 0.15 – 0.35 | 0.05 / 0.15 |
| 5083 (5xxx Series) | Balance | ≤ 0.10 | 4.0 – 4.9 | ≤ 0.40 | 0.4 – 1.0 | ≤ 0.25 | ≤ 0.40 | 0.05 – 0.25 | 0.05 / 0.15 |
| 6061 (6xxx Series) | Balance | 0.15 – 0.40 | 0.8 – 1.2 | 0.4 – 0.8 | ≤ 0.15 | ≤ 0.25 | ≤ 0.70 | 0.04 – 0.35 | 0.05 / 0.15 |
| 6063 (6xxx Series) | Balance | ≤ 0.10 | 0.45 – 0.90 | 0.20 – 0.60 | ≤ 0.10 | ≤ 0.10 | ≤ 0.35 | ≤ 0.10 | 0.05 / 0.15 |
| 6082 (6xxx Series) | Balance | ≤ 0.10 | 0.6 – 1.2 | 0.7 – 1.3 | 0.4 – 1.0 | ≤ 0.20 | ≤ 0.50 | ≤ 0.25 | 0.05 / 0.15 |
| 7075 (7xxx Series) | Balance | 1.2 – 2.0 | 2.1 – 2.9 | ≤ 0.40 | ≤ 0.30 | 5.1 – 6.1 | ≤ 0.50 | 0.18 – 0.28 | 0.05 / 0.15 |
UNS Codes & Grades
| Aluminium Grade | UNS Designation | Series | Primary Alloying Elements | Typical Temper | Common Standards Reference |
|---|---|---|---|---|---|
| 1100 | UNS A91100 | 1xxx | Commercially Pure Aluminium (≥99%) | O, H14 | ASTM B211, EN 573 |
| 2014 | UNS A92014 | 2xxx | Copper | T6, T651 | ASTM B211, EN 573 |
| 2024 | UNS A92024 | 2xxx | Copper, Magnesium | T3, T351, T4 | ASTM B211, EN 573 |
| 3003 | UNS A93003 | 3xxx | Manganese | O, H14 | ASTM B211, EN 573 |
| 5052 | UNS A95052 | 5xxx | Magnesium | O, H32 | ASTM B211, EN 573 |
| 5083 | UNS A95083 | 5xxx | Magnesium, Manganese | O, H116 | ASTM B211, EN 573 |
| 6061 | UNS A96061 | 6xxx | Magnesium, Silicon | T6, T651 | ASTM B211, EN 573 |
| 6063 | UNS A96063 | 6xxx | Magnesium, Silicon | T5, T6 | ASTM B211, EN 573 |
| 6082 | UNS A96082 | 6xxx | Magnesium, Silicon, Manganese | T6, T651 | ASTM B211, EN 573 |
| 7075 | UNS A97075 | 7xxx | Zinc, Magnesium, Copper | T6, T73 | ASTM B211, EN 573 |
Mechanical, Physical & Fabrication Properties
| Property Category | Parameter | Typical Value / Range | Most Relevant Alloys (from your range) | Fabrication / Performance Notes |
|---|---|---|---|---|
| Mechanical | Tensile Strength (UTS) | 90 – 610 MPa | 1100, 3003, 5052, 5083, 6061, 6063, 6082, 2014, 2024, 7075 | Highest in heat-treatable alloys (2xxx/6xxx/7xxx) in T6/T651. |
| Yield Strength (0.2% Proof) | 35 – 540 MPa | Same as above | 7xxx & 2xxx typically lead in yield; 1xxx/3xxx lowest. | |
| Elongation | 5% – 40% | 1100, 3003, 5052, 6063, 6061 | Ductility highest in O temper / low-alloy grades; reduces with strength tempers. | |
| Hardness (Brinell) | 25 – 175 HB | 2014, 2024, 6061, 6082, 7075 | Hardness increases with temper (T6/T651) and alloying (Cu/Zn/Mg). | |
| Shear Strength | 60 – 380 MPa | 6061, 6082, 2024, 7075 | Critical for fastener-type components, pins, keys, and coupling parts. | |
| Fatigue Strength (approx.) | 45 – 200 MPa | 6061, 6082, 2024, 7075 | Highly surface-finish dependent; anodizing/shot-peen can help for select uses. | |
| Impact Toughness | Good to Excellent | 5083, 5052, 6061, 6082 | 5xxx/6xxx typically tougher than high-strength 2xxx/7xxx at equivalent strength. | |
| Physical | Density | 2.66 – 2.85 g/cm³ (typical ~2.70) | All | Varies slightly with alloying (Cu/Zn increase density marginally). |
| Melting Range | 480°C – 660°C | All | Lower in high-alloy systems; important for hot work and welding. | |
| Thermal Conductivity | 120 – 235 W/m·K | 1100, 3003, 6061, 6063 | Pure/low-alloy grades conduct best; higher alloying generally reduces conductivity. | |
| Electrical Conductivity | 25 – 61 % IACS | 1100 (highest), 6063, 6061 | Use 1xxx where conductivity is critical (bus bars, electrical parts). | |
| Coefficient of Thermal Expansion | 22 – 24 ×10⁻⁶ /°C | All | Relevant for tight-tolerance machined parts and assemblies. | |
| Elastic Modulus (E) | 68 – 72 GPa | All | Similar across most Al alloys; stiffness mainly changes with section geometry. | |
| Corrosion Resistance | Moderate to Excellent | 5052, 5083, 6061, 6063 | Best in 5xxx/6xxx; 2xxx can need protection in aggressive environments. | |
| Fabrication | Machinability | Fair to Excellent | 6061 (good), 2014/2024 (good), 7075 (excellent), 1100 (fair) | High strength alloys machine well; soft grades can build-up edge without proper tooling. |
| Weldability | Good to Poor (alloy dependent) | 5052/5083/6061 (good), 2024/7075 (poor) | 2xxx & 7xxx are generally not preferred for fusion welding (cracking risk). | |
| Formability | Good to Excellent | 1100, 3003, 5052 | Best in O temper; higher strength tempers reduce formability. | |
| Hot Workability | Excellent | All | Suitable for forging, upsetting, and hot processing (process window varies). | |
| Cold Workability | Moderate to Good | 1100, 3003, 5052, 6061 | Work hardening significant in 5xxx; avoid excessive cold strain where cracking risk exists. | |
| Heat Treatability | Yes / No (by series) | Heat-treatable: 2xxx/6xxx/7xxx; Non-heat-treatable: 1xxx/3xxx/5xxx | Choose 6xxx for balanced strength + corrosion with good heat-treatment response. | |
| Anodizing Response | Good to Excellent | 6063 (best appearance), 6061 (good), 5xxx (good), 2xxx (limited) | Cu-rich alloys can produce darker/less uniform anodized finishes. | |
| Surface Finish After Machining | Good to Excellent | 6061, 6082, 7075 | Improves with sharp tooling, correct feeds/speeds, and coolant strategy. | |
| Typical Cutting Methods | Saw cutting, band saw, CNC cut, shearing (limited) | All | Specify squareness & burr control for precision applications. | |
| Joining Alternatives (when welding is poor) | Bolting, riveting, bonding, friction stir welding | 2024, 7075 | Recommended where fusion welding is not suitable. |
Common Names & International Identifiers
| Alloy / Grade | Common / Trade Name | UNS Number | EN / European Designation | ISO / DIN Equivalent | JIS Equivalent | Typical Industry Reference |
|---|---|---|---|---|---|---|
| Aluminium 1100 | Commercially Pure Aluminium | A91100 | EN AW-1100 | DIN Al99.0 | A1100 | Electrical, Chemical Equipment |
| Aluminium 2014 | High Strength Copper Aluminium | A92014 | EN AW-2014 | DIN AlCu4SiMg | A2014 | Aerospace, Automotive Forgings |
| Aluminium 2024 | Duralumin | A92024 | EN AW-2024 | DIN AlCu4Mg1 | A2024 | Aerospace Structural Parts |
| Aluminium 3003 | Al-Mn Alloy | A93003 | EN AW-3003 | DIN AlMn1Cu | A3003 | Heat Exchangers, General Fabrication |
| Aluminium 5052 | Marine Grade Aluminium | A95052 | EN AW-5052 | DIN AlMg2.5 | A5052 | Marine, Pressure Vessels |
| Aluminium 5083 | High-Strength Marine Alloy | A95083 | EN AW-5083 | DIN AlMg4.5Mn | A5083 | Shipbuilding, Cryogenic Equipment |
| Aluminium 6061 | Structural Aluminium | A96061 | EN AW-6061 | DIN AlMg1SiCu | A6061 | Machined Parts, Frames |
| Aluminium 6063 | Architectural Aluminium | A96063 | EN AW-6063 | DIN AlMg0.7Si | A6063 | Extrusions, Decorative Uses |
| Aluminium 6082 | High-Strength Structural Alloy | A96082 | EN AW-6082 | DIN AlMgSi1 | A6082 | Structural & Heavy Engineering |
| Aluminium 7005 | High Strength Weldable Alloy | A97005 | EN AW-7005 | DIN AlZn4.5Mg1 | A7005 | Bicycle Frames, Transport |
| Aluminium 7075 | Aerospace Grade Aluminium | A97075 | EN AW-7075 | DIN AlZn5.5MgCu | A7075 | Aerospace, Tooling, High-Stress Parts |
Standards & International Equivalents
| Aluminium Alloy / Grade | ASTM / ASME | UNS | EN (Europe) | DIN (Germany) | ISO | JIS (Japan) | BS (UK) |
|---|---|---|---|---|---|---|---|
| 1100 | ASTM B221 | A91100 | EN AW-1100 | Al99.0 | ISO Al99.0 | A1100 | BS 1100 |
| 2014 | ASTM B221 | A92014 | EN AW-2014 | AlCu4SiMg | ISO AlCu4SiMg | A2014 | BS 2014 |
| 2024 | ASTM B211 / B221 | A92024 | EN AW-2024 | AlCu4Mg1 | ISO AlCu4Mg1 | A2024 | BS 2024 |
| 3003 | ASTM B221 | A93003 | EN AW-3003 | AlMn1Cu | ISO AlMn1Cu | A3003 | BS 3003 |
| 5052 | ASTM B211 / B221 | A95052 | EN AW-5052 | AlMg2.5 | ISO AlMg2.5 | A5052 | BS 5052 |
| 5083 | ASTM B221 | A95083 | EN AW-5083 | AlMg4.5Mn | ISO AlMg4.5Mn | A5083 | BS 5083 |
| 6061 | ASTM B221 / B211 | A96061 | EN AW-6061 | AlMg1SiCu | ISO AlMg1SiCu | A6061 | BS 6061 |
| 6063 | ASTM B221 | A96063 | EN AW-6063 | AlMg0.7Si | ISO AlMg0.7Si | A6063 | BS 6063 |
| 6082 | ASTM B221 | A96082 | EN AW-6082 | AlMgSi1 | ISO AlMgSi1 | A6082 | BS 6082 |
| 7005 | ASTM B221 | A97005 | EN AW-7005 | AlZn4.5Mg1 | ISO AlZn4.5Mg1 | A7005 | BS 7005 |
| 7075 | ASTM B221 / B211 | A97075 | EN AW-7075 | AlZn5.5MgCu | ISO AlZn5.5MgCu | A7075 | BS 7075 |
Applications
| Aluminium Rod Grade / Series | Key Properties | Typical Applications | Industries Served |
|---|---|---|---|
| 1000 Series (1100, 1050) | Excellent corrosion resistance, high electrical conductivity, soft & formable | Electrical conductors, decorative components, chemical equipment parts | Electrical, Chemical, Architecture |
| 2000 Series (2014, 2024) | High strength, good machinability, moderate corrosion resistance | Aerospace fittings, aircraft structural parts, high-strength fasteners | Aerospace, Defense, Automotive |
| 3000 Series (3003) | Good corrosion resistance, moderate strength, easy fabrication | Heat exchangers, radiator rods, HVAC components | HVAC, Automotive, Thermal Systems |
| 5000 Series (5052, 5083) | Excellent marine corrosion resistance, good weldability | Marine shafts, shipbuilding components, pressure vessels | Marine, Offshore, Shipbuilding |
| 6000 Series (6061, 6063, 6082) | Good strength-to-weight ratio, excellent machinability & weldability | Structural rods, machinery parts, frames, automotive components | Construction, Automotive, Industrial Machinery |
| 7000 Series (7005, 7075) | Very high strength, lightweight, fatigue resistant | Aerospace shafts, bicycle components, high-performance engineering parts | Aerospace, Sports Equipment, Defense |
| Precision Ground Aluminium Rods | Tight dimensional tolerance, smooth surface finish | Hydraulic cylinders, pneumatic systems, precision shafts | Hydraulics, Automation, Engineering |
| Anodized Aluminium Rods | Enhanced surface hardness, improved wear & corrosion resistance | Architectural fittings, exposed mechanical components | Architecture, Industrial Design |
Common Aluminium Rods – Sizes & Theoretical Weight Chart
| Nominal Diameter (mm) | Nominal Diameter (inch) | Standard Length Range (mm) | Cross-Sectional Area (mm²) | Theoretical Weight (kg/m) | Approx. Weight @ 3 m (kg) | Approx. Weight @ 6 m (kg) |
|---|---|---|---|---|---|---|
| 10 | 0.39 | 3000 – 6000 | 78.54 | 0.21 | 0.63 | 1.27 |
| 12 | 0.47 | 3000 – 6000 | 113.10 | 0.31 | 0.94 | 1.88 |
| 16 | 0.63 | 3000 – 6000 | 201.06 | 0.54 | 1.63 | 3.26 |
| 20 | 0.79 | 3000 – 6000 | 314.16 | 0.85 | 2.54 | 5.09 |
| 25 | 0.98 | 3000 – 6000 | 490.87 | 1.33 | 3.99 | 7.98 |
| 30 | 1.18 | 3000 – 6000 | 706.86 | 1.91 | 5.73 | 11.46 |
| 40 | 1.57 | 3000 – 6000 | 1256.64 | 3.39 | 10.18 | 20.36 |
| 50 | 1.97 | 3000 – 6000 | 1963.50 | 5.30 | 15.90 | 31.80 |
| 60 | 2.36 | 3000 – 6000 | 2827.43 | 7.64 | 22.92 | 45.84 |
| 75 | 2.95 | 3000 – 6000 | 4417.86 | 11.93 | 35.79 | 71.58 |
| 100 | 3.94 | 3000 – 6000 | 7853.98 | 21.20 | 63.60 | 127.20 |
| 150 | 5.91 | 3000 – 6000 | 17671.46 | 47.71 | 143.13 | 286.26 |
| 200 | 7.87 | 3000 – 6000 | 31415.93 | 84.82 | 254.46 | 508.92 |
Note: The above values are theoretical weights calculated using an aluminium density of 2.70 g/cm³. Actual weights may vary depending on alloy (1xxx–7xxx series), temper, dimensional tolerances, and surface finish.
Weight Formula (Solid Round Rod):
Weight (kg/m) = (π / 4) × D² × ρ / 1000
where D = diameter in mm and ρ = density in g/cm³.
