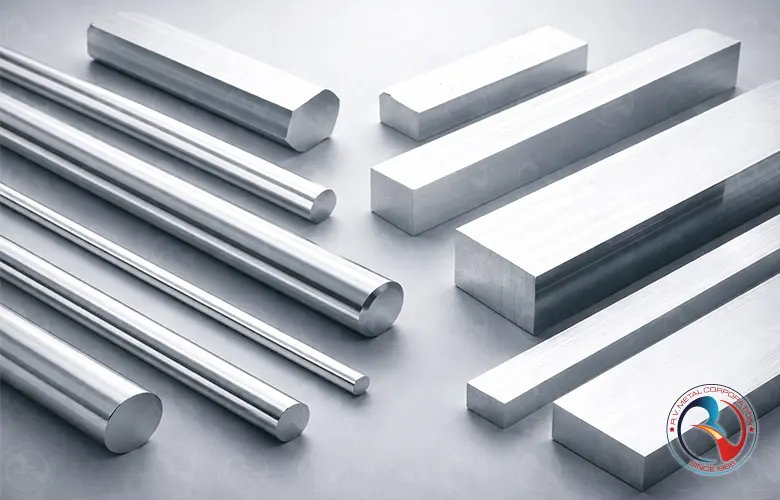

Aluminium Bars
Product Overview
R V Metal Corporation supplies aluminium bars in a wide range of grades and tempers for engineering, fabrication, marine, aerospace, and general industrial use. Our aluminium bar stock is available as round bars, square bars, flat bars, and hex bars in mill finish or with processing options such as precision cutting, peeling/turning, and surface finishing as per requirement. Common alloys include 1xxx (commercially pure), 2xxx (high strength), 5xxx (marine), 6xxx (structural/extrusion), and 7xxx (aerospace-grade strength), selected based on corrosion resistance, machinability, weldability, and strength targets. We support cut-to-length supply, batch traceability, and mill test certificates for consistent quality across domestic and export projects.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Forms | Round Bars, Square Bars, Flat Bars, Hexagonal Bars |
| Alloy Series | 1xxx, 2xxx, 5xxx, 6xxx, 7xxx Series Aluminium Alloys |
| Common Grades | 1100, 2014, 2024, 3003, 5052, 5083, 6061, 6063, 6082, 7075, 7050 |
| Temper Conditions | O, H12, H14, H16, H18, T4, T5, T6, T651, T7351 |
| Diameter / Size Range | Ø 5 mm to Ø 500 mm (larger sizes on request) |
| Standard Length | 3000 mm, 4000 mm, 6000 mm or Cut-to-Length |
| Dimensional Tolerances | As per ASTM B221, ASTM B211, EN 755, EN 573 |
| Surface Finish | Mill Finish, Bright, Polished, Turned, Peeled |
| Manufacturing Process | Extruded, Drawn, Rolled |
| Density (Typical) | ≈ 2.70 g/cm³ (varies slightly by alloy) |
| Machinability | Good to Excellent (Grade dependent) |
| Weldability | Excellent for 5xxx & 6xxx Series, Limited for 2xxx & 7xxx Series |
| Corrosion Resistance | Excellent (especially 5xxx & 6xxx Series) |
| Heat Treatment | Solution Heat Treated & Artificially Aged (T6 / T651) |
| Testing & Certification | Chemical Analysis, Mechanical Testing, Mill Test Certificate (EN 10204 3.1) |
| Packaging | Plastic Wrapped, Wooden Crates, Export Seaworthy Packing |
| Standards | ASTM B221, ASTM B211, EN 573, EN 755, IS 733 |
| Supply Condition | Domestic & Export – Bulk, Project-Based, Cut-to-Size |
Chemical Composition
| Alloy Grade | Al (Aluminium) % | Cu (Copper) % | Mg (Magnesium) % | Si (Silicon) % | Zn (Zinc) % | Mn (Manganese) % | Fe (Iron) % | Cr (Chromium) % |
|---|---|---|---|---|---|---|---|---|
| AA 1100 | ≥ 99.00 | 0.05–0.20 | — | 0.95 max | — | 0.05 max | 1.00 max | — |
| AA 2014 | Balance | 3.9–5.0 | 0.2–0.8 | 0.5–1.2 | 0.25 max | 0.4–1.2 | 0.7 max | 0.10 max |
| AA 2024 | Balance | 3.8–4.9 | 1.2–1.8 | 0.5 max | 0.25 max | 0.3–0.9 | 0.5 max | 0.10 max |
| AA 3003 | Balance | 0.05–0.20 | — | 0.6 max | 0.10 max | 1.0–1.5 | 0.7 max | — |
| AA 5052 | Balance | 0.10 max | 2.2–2.8 | 0.25 max | 0.10 max | 0.10 max | 0.4 max | 0.15–0.35 |
| AA 5083 | Balance | 0.10 max | 4.0–4.9 | 0.40 max | 0.25 max | 0.4–1.0 | 0.4 max | 0.05–0.25 |
| AA 6061 | Balance | 0.15–0.40 | 0.8–1.2 | 0.4–0.8 | 0.25 max | 0.15 max | 0.7 max | 0.04–0.35 |
| AA 6063 | Balance | 0.10 max | 0.45–0.9 | 0.2–0.6 | 0.10 max | 0.10 max | 0.35 max | 0.10 max |
| AA 6082 | Balance | 0.10 max | 0.6–1.2 | 0.7–1.3 | 0.20 max | 0.4–1.0 | 0.5 max | 0.25 max |
| AA 7075 | Balance | 1.2–2.0 | 2.1–2.9 | 0.40 max | 5.1–6.1 | 0.30 max | 0.50 max | 0.18–0.28 |
UNS Codes & Grades
| Aluminium Alloy Grade | UNS Designation | ISO / EN Equivalent | Common Temper | Series | Key Characteristics |
|---|---|---|---|---|---|
| AA 1100 | A91100 | EN AW-1100 | O, H14, H16 | 1xxx | Commercially pure aluminium, excellent corrosion resistance & conductivity |
| AA 2014 | A92014 | EN AW-2014 | T4, T6 | 2xxx | High strength, good machinability, aerospace & structural use |
| AA 2024 | A92024 | EN AW-2024 | T3, T4, T351 | 2xxx | Excellent fatigue resistance, aircraft-grade alloy |
| AA 3003 | A93003 | EN AW-3003 | O, H12, H14 | 3xxx | Good formability, corrosion resistance, general engineering |
| AA 5052 | A95052 | EN AW-5052 | H32, H34 | 5xxx | Excellent marine corrosion resistance, weldable |
| AA 5083 | A95083 | EN AW-5083 | H111, H321 | 5xxx | High strength, marine & offshore applications |
| AA 6061 | A96061 | EN AW-6061 | T6, T651 | 6xxx | Structural alloy, excellent machinability & weldability |
| AA 6063 | A96063 | EN AW-6063 | T5, T6 | 6xxx | Architectural applications, superior surface finish |
| AA 6082 | A96082 | EN AW-6082 | T6, T651 | 6xxx | High strength structural alloy, European standard |
| AA 7075 | A97075 | EN AW-7075 | T6, T73, T7351 | 7xxx | Very high strength, aerospace & high-stress components |
Mechanical, Physical & Fabrication Properties
| Aluminium Grade / Series | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Density (g/cm³) | Thermal Conductivity (W/m·K) | Electrical Conductivity | Machinability | Weldability | Formability | Typical Fabrication Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1xxx Series (AA 1100) | 90 – 110 | 35 – 45 | 30 – 40 | 2.71 | 220 – 235 | Very High | Fair | Excellent | Excellent | Ideal for cold working, bending, and electrical applications |
| 2xxx Series (AA 2014 / 2024) | 425 – 485 | 290 – 345 | 8 – 15 | 2.78 | 120 – 140 | Moderate | Good | Poor | Limited | Often used in machined parts; welding not recommended |
| 3xxx Series (AA 3003) | 130 – 170 | 55 – 75 | 20 – 30 | 2.73 | 160 – 180 | High | Good | Excellent | Excellent | Suitable for spinning, forming, and light machining |
| 5xxx Series (AA 5052 / 5083) | 260 – 340 | 125 – 215 | 12 – 20 | 2.66 – 2.68 | 130 – 150 | Moderate | Fair | Excellent | Good | Excellent corrosion resistance; preferred for marine fabrication |
| 6xxx Series (AA 6061 / 6063 / 6082) | 240 – 310 | 145 – 275 | 10 – 18 | 2.70 | 160 – 180 | Moderate | Excellent | Excellent | Good | Best all-round alloy for machining, welding, and extrusion |
| 7xxx Series (AA 7075) | 520 – 580 | 430 – 505 | 5 – 11 | 2.81 | 130 – 140 | Moderate | Good | Poor | Limited | High-strength alloy; machining preferred over welding |
Common Names & International Identifiers
| Aluminium Series / Grade | Common / Trade Name | AA / ASTM Designation | UNS Identifier | EN / DIN Equivalent | ISO Equivalent | JIS Equivalent | Widely Known As |
|---|---|---|---|---|---|---|---|
| 1xxx Series | Commercially Pure Aluminium | AA 1050 / 1060 / 1100 | A91050 / A91100 | EN AW-1050 / EN AW-1100 | ISO Al 99.5 | A1100 | Electrical / Chemical Aluminium |
| 2xxx Series | Duralumin | AA 2014 / 2024 | A92014 / A92024 | EN AW-2014 / EN AW-2024 | ISO AlCu4Mg1 | A2024 | Aerospace Aluminium |
| 3xxx Series | Manganese Aluminium | AA 3003 / 3004 | A93003 | EN AW-3003 | ISO AlMn1Cu | A3003 | Forming & Heat-Exchanger Aluminium |
| 5xxx Series | Marine Grade Aluminium | AA 5052 / 5083 | A95052 / A95083 | EN AW-5052 / EN AW-5083 | ISO AlMg4.5Mn | A5052 / A5083 | Corrosion-Resistant Aluminium |
| 6xxx Series | Structural Aluminium | AA 6061 / 6063 / 6082 | A96061 / A96063 | EN AW-6061 / EN AW-6063 / EN AW-6082 | ISO AlMgSi1 | A6061 / A6063 | Extrusion & Machining Aluminium |
| 7xxx Series | High-Strength Aluminium | AA 7075 / 7050 | A97075 / A97050 | EN AW-7075 / EN AW-7050 | ISO AlZn5.5MgCu | A7075 | Aerospace & Defense Aluminium |
Standards & International Equivalents
| Aluminium Grade / Series | ASTM / ASME Standard | EN / European Standard | DIN Equivalent | ISO Standard | JIS Standard | BS (British Standard) | IS (Indian Standard) |
|---|---|---|---|---|---|---|---|
| 1xxx Series (1050, 1060, 1100) | ASTM B221 / ASTM B211 | EN 573 / EN 755 | DIN 3.0255 / 3.0205 | ISO 6361 | JIS H4040 | BS EN 573 | IS 737 / IS 733 |
| 2xxx Series (2014, 2024) | ASTM B211 / ASTM B221 | EN 573 / EN 755 | DIN 3.1355 / 3.1354 | ISO 6361 | JIS H4040 | BS EN 755 | IS 737 |
| 3xxx Series (3003, 3004) | ASTM B211 / ASTM B221 | EN 573 / EN 755 | DIN 3.0515 | ISO 6361 | JIS H4040 | BS EN 573 | IS 737 |
| 5xxx Series (5052, 5083) | ASTM B211 / ASTM B221 | EN 573 / EN 755 | DIN 3.3523 / 3.3547 | ISO 6361 | JIS H4040 | BS EN 755 | IS 737 |
| 6xxx Series (6061, 6063, 6082) | ASTM B211 / ASTM B221 | EN 573 / EN 755 | DIN 3.3211 / 3.2315 | ISO 6361 | JIS H4040 | BS EN 755 | IS 733 / IS 1285 |
| 7xxx Series (7075, 7050) | ASTM B211 / ASTM B221 | EN 573 / EN 755 | DIN 3.4365 | ISO 6361 | JIS H4040 | BS EN 755 | IS 737 |
Applications
| Aluminium Grade / Series | Typical Bar Forms | Key Properties Utilized | Common Applications | Industries Served |
|---|---|---|---|---|
| 1xxx Series (1050, 1060, 1100) | Round, Flat, Square | High electrical & thermal conductivity, corrosion resistance | Electrical conductors, bus bars, heat sinks, decorative components | Electrical, Electronics, HVAC, Architecture |
| 2xxx Series (2014, 2024) | Round, Square | High strength, good machinability | Aircraft fittings, aerospace fasteners, high-load structural parts | Aerospace, Defence, Engineering |
| 3xxx Series (3003, 3004) | Round, Flat | Excellent formability, corrosion resistance | Heat exchangers, radiators, fuel tanks, general fabrication | Automotive, HVAC, General Engineering |
| 5xxx Series (5052, 5083) | Round, Flat, Square | High corrosion resistance, good weldability | Marine structures, pressure vessels, storage tanks, ship fittings | Marine, Offshore, Chemical, Shipbuilding |
| 6xxx Series (6061, 6063, 6082) | Round, Square, Hex, Flat | Balanced strength, corrosion resistance, machinability | Structural frames, machined components, automotive & bike parts | Construction, Automotive, Industrial Fabrication |
| 7xxx Series (7075, 7050) | Round, Square | Very high strength, fatigue resistance | Aerospace parts, military equipment, high-performance machinery | Aerospace, Defence, High-Performance Engineering |
Common Aluminium Bars Dimensions Chart
| Bar Shape | Size / Diameter (mm) | Equivalent (inch) | Cross Section | Theoretical Weight (kg/m) | Typical Availability |
|---|---|---|---|---|---|
| Round Bar | 6 | 1/4" | Ø 6 mm | 0.08 | Extruded / Drawn |
| 10 | 3/8" | Ø 10 mm | 0.21 | Extruded / Drawn | |
| 12 | 1/2" | Ø 12 mm | 0.31 | Extruded / Drawn | |
| 16 | 5/8" | Ø 16 mm | 0.54 | Extruded | |
| 20 | 3/4" | Ø 20 mm | 0.85 | Extruded | |
| 25 | 1" | Ø 25 mm | 1.33 | Extruded / Drawn | |
| 30 | 1 1/4" | Ø 30 mm | 1.91 | Extruded | |
| 40 | 1 1/2" | Ø 40 mm | 3.39 | Extruded | |
| Square Bar | 10 × 10 | 3/8" × 3/8" | Square | 0.27 | Extruded |
| 15 × 15 | 5/8" × 5/8" | Square | 0.61 | Extruded | |
| 20 × 20 | 3/4" × 3/4" | Square | 1.08 | Extruded | |
| 25 × 25 | 1" × 1" | Square | 1.69 | Extruded | |
| 40 × 40 | 1 1/2" × 1 1/2" | Square | 4.32 | Extruded | |
| Flat Bar | 20 × 3 | 3/4" × 1/8" | Rectangular | 0.16 | Rolled / Extruded |
| 25 × 5 | 1" × 3/16" | Rectangular | 0.34 | Rolled / Extruded | |
| 40 × 6 | 1 1/2" × 1/4" | Rectangular | 0.65 | Rolled | |
| 50 × 6 | 2" × 1/4" | Rectangular | 0.81 | Rolled | |
| 75 × 10 | 3" × 3/8" | Rectangular | 2.03 | Rolled | |
| Hex Bar | 12 | 1/2" | Across Flats | 0.24 | Extruded |
| 17 | 5/8" | Across Flats | 0.47 | Extruded | |
| 24 | 1" | Across Flats | 0.92 | Extruded |
| Alloy Series | Common Grades | Main Alloying Element | Key Characteristics |
|---|---|---|---|
| 1000 Series | 1050, 1060, 1070 | Pure Aluminium | Excellent conductivity, corrosion resistance |
| 2000 Series | 2014, 2024 | Copper (Cu) | High strength, good machinability |
| 3000 Series | 3003 | Manganese (Mn) | Good formability, moderate strength |
| 5000 Series | 5052, 5083 | Magnesium (Mg) | Excellent marine corrosion resistance |
| 6000 Series | 6061, 6063, 6082 | Magnesium + Silicon | Balanced strength, weldability, machinability |
| 7000 Series | 7075, 7050 | Zinc (Zn) | Aerospace-grade high strength |
| Temper | Description | Typical Use |
|---|---|---|
| O | Annealed | Forming and bending applications |
| H12 / H14 / H18 | Strain hardened | Structural and general fabrication |
| T4 | Solution heat-treated | Aerospace and automotive components |
| T6 | Heat-treated and artificially aged | High strength machining applications |
| T651 / T7351 | Stress-relieved condition | Precision CNC machining |
| Property | Rating | Remarks |
|---|---|---|
| Machinability | Excellent (6061, 2014, 7075) | Ideal for CNC and high-speed machining |
| Weldability | Good (5xxx & 6xxx) | Limited for 2xxx & 7xxx alloys |
| Anodizing | Excellent | Decorative and protective coatings possible |
| Formability | Good to Moderate | Depends on alloy & temper |
| Finish Type | Description |
|---|---|
| Mill Finish | As-extruded surface |
| Bright Drawn | Smooth surface for precision parts |
| Polished | Decorative and architectural use |
| Anodized | Clear or color anodizing available |
| Precision Ground | Tight dimensional tolerance bars |
| Standard | Description |
|---|---|
| ASTM B221 / B211 | Extruded aluminium bars and rods |
| EN 755 / EN 573 | European aluminium bar standards |
| IS 733 / IS 1285 | Indian aluminium specifications |
| Tolerances | Equivalent to H9 / H11 depending on size |
| Parameter | Details |
|---|---|
| Certification | EN 10204 3.1 Mill Test Certificate |
| Testing | Chemical & Mechanical as per standards |
| Supply Length | 3m, 6m, or cut-to-length |
| Packing | Bundled, palletized, export seaworthy |
| Question | Answer |
|---|---|
| Which aluminium bar is best for machining? | 6061-T6 and 2014 offer excellent machinability. |
| Can aluminium bars be welded? | Yes, especially 5xxx and 6xxx series alloys. |
| Do weights vary by alloy? | Yes, due to density differences between alloy series. |
| Are custom sizes available? | Yes, cut-to-length and CNC rough cuts are available. |
