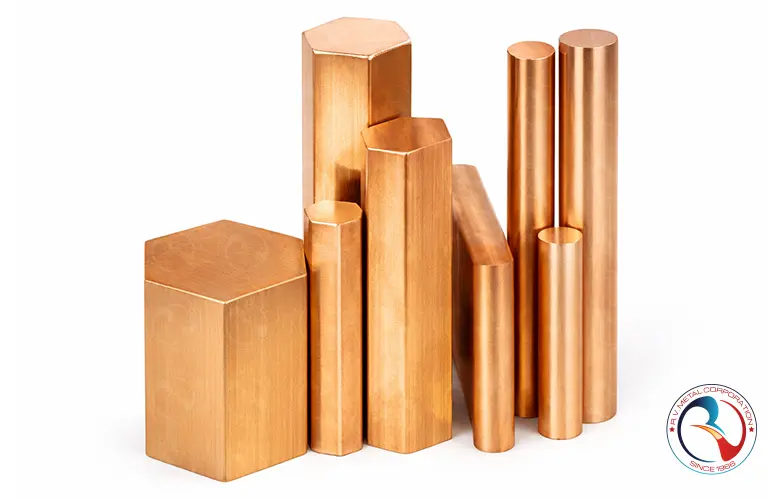

Arsenical Copper Sheets, Rods, Bars & Tubes
Product Overview
Arsenical Copper is a specialized copper alloy containing a controlled addition of arsenic, developed to significantly enhance resistance to corrosion, dezincification, and hydrogen embrittlement, particularly in mildly aggressive and high-temperature environments. R V Metal Corporation supplies premium quality Arsenical Copper Sheets, Rods, Bars, and Tubes manufactured to precise metallurgical standards for demanding industrial applications. The presence of arsenic improves the alloy’s performance in boiler systems, heat exchangers, condensers, and water handling equipment where pure copper may suffer long-term degradation. These products retain excellent thermal and electrical conductivity while offering superior strength, creep resistance, and durability under continuous service conditions. Available in multiple tempers, sizes, and international specifications, Arsenical Copper products from R V Metal Corporation are trusted across power generation, marine, chemical processing, and heavy engineering industries for their consistent quality, reliability, and extended service life.
Technical Specifications
| Parameter | Specification / Details |
|---|---|
| Material Type | Arsenical Copper (Copper with controlled Arsenic addition) |
| Typical Arsenic Content | 0.02% – 0.06% |
| Product Forms | Sheets, Plates, Rods, Bars, Tubes & Pipes |
| Manufacturing Process | Hot Rolled, Cold Rolled, Extruded, Drawn, Annealed |
| Available Tempers | Soft (Annealed), Half Hard, Hard |
| Thickness / Diameter Range | Sheets: 0.3 mm to 50 mm Rods/Bars: 5 mm to 150 mm Tubes: OD 6 mm to 150 mm |
| Length / Width | Standard & Cut-to-Length as per customer requirement |
| Electrical Conductivity | ≈ 80–90% IACS |
| Thermal Conductivity | High – Suitable for heat transfer applications |
| Tensile Strength | 220 – 320 MPa (depending on temper) |
| Yield Strength | 70 – 250 MPa (depending on temper) |
| Elongation | 15% – 40% |
| Density | ≈ 8.94 g/cm³ |
| Corrosion Resistance | Excellent resistance to hydrogen embrittlement and steam corrosion |
| Fabrication Properties | Excellent formability, bendability, brazing & welding characteristics |
| Surface Finish | Mill Finish, Bright Finish, Polished (as required) |
| Standards | ASTM, EN, IS, BS, DIN, JIS, UNS |
| Typical UNS Grades | C11000 (with As), C12200, C12300 |
| Quality Documentation | Mill Test Certificate (EN 10204 3.1), Chemical & Mechanical Test Reports |
| Applications | Boilers, Heat Exchangers, Condensers, Plumbing, Marine & Industrial Heat Transfer Systems |
Chemical Composition
| Element | Composition (% by Weight) | Role / Significance |
|---|---|---|
| Copper (Cu) | ≥ 99.90 | Base metal providing high electrical & thermal conductivity |
| Arsenic (As) | 0.02 – 0.06 | Improves resistance to hydrogen embrittlement and dezincification in steam/boiler service |
| Oxygen (O) | ≤ 0.04 | Controlled to maintain good weldability and corrosion resistance |
| Phosphorus (P) | ≤ 0.015 | Residual element; improves deoxidation during melting |
| Iron (Fe) | ≤ 0.05 | Residual impurity, kept low to preserve conductivity |
| Lead (Pb) | ≤ 0.02 | Trace element, controlled for environmental and mechanical performance |
| Zinc (Zn) | ≤ 0.05 | Residual element, does not affect core copper properties at low levels |
| Nickel (Ni) | ≤ 0.02 | Trace impurity, controlled for consistency |
| Other Elements | ≤ 0.10 (total) | Combined impurities as per ASTM / EN / IS limits |
UNS Codes & Grades
| UNS No. | Common Grade / Designation | Equivalent Standards | Typical Product Forms | Key Characteristics |
|---|---|---|---|---|
| C10200 | Oxygen-Free Copper (OF) | ASTM B152 / B187, EN CW008A | Sheets, Rods, Bars | High purity copper with controlled oxygen, suitable for arsenic modification |
| C10300 | Oxygen-Free, High Conductivity Copper (OFHC) | ASTM B170, EN CW009A | Sheets, Rods, Bars, Tubes | Very high conductivity with trace arsenic for hydrogen resistance |
| C12000 | Phosphorus-Deoxidized Copper, Low Residual P | ASTM B187 / B88, EN CW011A | Tubes, Rods | Often produced with small arsenic addition for steam and boiler service |
| C12200 | Phosphorus-Deoxidized Copper, High Residual P | ASTM B75 / B88, EN CW024A | Tubes, Pipes | Most common arsenical copper grade for condenser & heat exchanger tubes |
| C12300 | Arsenical Phosphorus-Deoxidized Copper | ASTM B88 (Arsenical Variant) | Tubes, Pipes | Enhanced resistance to hydrogen embrittlement in high-temperature service |
| C12500 | Arsenical Copper (Low Oxygen) | ASTM B152 / B187 | Sheets, Bars, Rods | Specialty arsenic-bearing copper for boiler and pressure applications |
| C14500 | Tellurium-Arsenical Copper (Special Applications) | ASTM B301 | Rods, Bars | Improved machinability with retained thermal and corrosion performance |
Mechanical, Physical & Fabrication Properties
| Property Category | Property | Typical Values / Characteristics | Remarks for Arsenical Copper |
|---|---|---|---|
| Mechanical Properties | Tensile Strength | 210 – 260 MPa (Annealed to Hard) | Comparable to DHP copper; slightly improved high-temperature stability |
| Yield Strength | 70 – 120 MPa | Depends on temper (O, H02, H04, H08) | |
| Elongation | 20 – 45 % | High ductility retained despite arsenic addition | |
| Hardness | HV 45 – 95 | Increases with cold work; suitable for forming & bending | |
| Physical Properties | Density | 8.92 – 8.94 g/cm³ | Essentially same as pure copper |
| Electrical Conductivity | 80 – 95 % IACS | Slightly reduced due to arsenic, still excellent | |
| Thermal Conductivity | 310 – 360 W/m·K | Ideal for heat exchangers and boiler tubes | |
| Melting Point | 1080 – 1083 °C | Negligible effect of arsenic at low percentages | |
| Coefficient of Thermal Expansion | 16.5 – 17 ×10⁻⁶ /°C | Stable under thermal cycling | |
| Fabrication Properties | Formability | Excellent | Suitable for deep drawing, bending & rolling |
| Machinability | Fair | Better than pure copper; not free-cutting | |
| Weldability | Excellent | Gas, TIG, MIG welding suitable | |
| Brazing / Soldering | Excellent | No cracking or embrittlement issues | |
| Hot Working | Good (650 – 850 °C) | Preferred for thick sections and bars | |
| Resistance to Hydrogen Embrittlement | Excellent | Primary reason for arsenic addition; ideal for steam service |
Common Names & International Identifiers
| Category | Identifier / Name | Standard / Region | Description / Notes |
|---|---|---|---|
| Common Names | Arsenical Copper | Industry / Global | Copper alloyed with small arsenic content for hydrogen embrittlement resistance |
| Arsenic Bearing Copper | Industry / Global | Used for boiler tubes, heat exchangers, steam lines | |
| Deoxidized Arsenical Copper | Industry / Europe | Improved hot working and welding characteristics | |
| Boiler Grade Copper | Power & Marine Industry | Preferred for high-temperature steam environments | |
| Heat Exchanger Copper | HVAC / Process Industry | Used in condenser & heat transfer applications | |
| Steam Service Copper | Industrial Usage | Resistant to hydrogen attack and oxidation | |
| International Identifiers | UNS C10300 | ASTM / UNS (USA) | Oxygen-free arsenical copper |
| UNS C10200 (As-modified) | ASTM / UNS (USA) | High conductivity copper with arsenic addition | |
| CW004A | EN (Europe) | Arsenical copper for tubes and sheets | |
| Cu-As | EN / ISO | Generic designation for arsenic-bearing copper | |
| BS C103 | British Standard | Arsenical copper for boiler and condenser use | |
| IS 191 / IS 1545 (Cu-As) | Indian Standard | Arsenical copper sheets, rods & tubes | |
| DIN Cu-As | DIN (Germany) | High-purity copper with arsenic for thermal applications |
Standards & International Equivalents
| Region / Country | Standard | Grade / Designation | Equivalent / Notes |
|---|---|---|---|
| USA | ASTM B152 / B187 / B75 / B42 | UNS C10300 | Arsenical copper sheets, rods, bars & tubes for boiler and heat exchanger service |
| USA | ASTM B170 | UNS C10300 | Plate and sheet specification for arsenical copper |
| Europe | EN 1652 | CW004A (Cu-As) | Wrought arsenical copper sheets and strips |
| Europe | EN 13601 | CW004A | Arsenical copper tubes for heat exchangers and condensers |
| Europe | EN 12163 / EN 12164 | CW004A | Arsenical copper rods and bars |
| International | ISO 431 | Cu-As | International designation for arsenic-bearing copper alloys |
| UK | BS 2870 / BS 2871 | C103 | Arsenical copper sheets, tubes & general engineering products |
| Germany | DIN 17660 | Cu-As | Wrought arsenical copper for thermal applications |
| India | IS 191 | Cu-As | Arsenical copper sheets and strips |
| India | IS 1545 | Cu-As | Arsenical copper tubes for boilers and heat exchangers |
| Japan | JIS H3100 / H3300 | C1030 | Arsenical copper plates, sheets and tubes |
| China | GB/T 5231 | TU1-As | High-purity arsenical copper for industrial use |
Applications
| Product Form | Application Area | Typical End Use | Why Arsenical Copper is Used |
|---|---|---|---|
| Sheets | Heat Exchangers & Boilers | Tube sheets, boiler plates, condenser plates | Excellent resistance to hydrogen embrittlement and corrosion in high-temperature wet steam environments |
| Sheets | Power Generation | Thermal power plant heat transfer components | Maintains mechanical integrity under cyclic thermal stress and steam exposure |
| Rods | Industrial Engineering | Machined components, fasteners, bushings | Good machinability combined with superior corrosion resistance compared to pure copper |
| Rods | Marine & Offshore | Shaft sleeves, structural fittings | Improved resistance to dezincification and seawater corrosion |
| Bars | Mechanical Fabrication | Structural parts, support components | High ductility with enhanced resistance to stress corrosion cracking |
| Bars | Oil & Gas Industry | Heat-exposed structural and machined components | Performs reliably in high-temperature, moisture-laden process environments |
| Tubes | Boilers & Condensers | Boiler tubes, condenser tubes, evaporators | Prevents hydrogen attack and copper embrittlement in steam service |
| Tubes | Heat Transfer Systems | Heat exchanger tubes, cooling coils | Superior thermal conductivity with enhanced corrosion resistance |
| Tubes | Desalination Plants | Brine heaters, condenser tubing | Excellent performance in saline and high-temperature water conditions |
| Sheets, Rods & Tubes | HVAC & Industrial Cooling | Heat transfer and fluid handling components | Long service life under continuous heat and moisture exposure |
Common Arsenical Copper Forms & Dimensions Chart
| Product Form | Manufacturing Process | Typical Condition | Supply Standard |
|---|---|---|---|
| Sheets | Hot Rolled / Cold Rolled | Annealed / Half Hard | ASTM / EN / IS |
| Plates | Hot Rolled | Annealed | ASTM / EN |
| Rods | Extruded / Drawn | Annealed / Hard Drawn | ASTM / EN |
| Bars | Hot Rolled / Extruded | Annealed | ASTM / EN |
| Tubes | Seamless Drawn | Annealed | ASTM B111 / EN 12451 |
| Thickness (mm) | Width (mm) | Length (mm) | Typical Use |
|---|---|---|---|
| 0.8 – 3.0 | 600 – 1250 | 1000 – 3000 | Heat exchanger plates |
| 3.0 – 6.0 | 600 – 1500 | 2000 – 6000 | Boiler & condenser plates |
| 6.0 – 25.0 | 1000 – 2000 | 2000 – 6000 | Tube sheets & pressure components |
| Shape | Size Range | Standard Length | Application |
|---|---|---|---|
| Round Rods | Ø 6 mm – Ø 150 mm | 3000 – 6000 mm | Machined industrial components |
| Square Bars | 10 × 10 – 100 × 100 mm | 3000 – 6000 mm | Structural & support parts |
| Flat Bars | 20 × 5 – 150 × 25 mm | 3000 – 6000 mm | Fabricated assemblies |
| Outer Diameter (mm) | Wall Thickness (mm) | Length | Typical Service |
|---|---|---|---|
| 12.7 – 25.4 | 1.2 – 2.5 | Up to 6000 mm | Boiler & condenser tubing |
| 25.4 – 50.8 | 1.6 – 3.5 | Up to 6000 mm | Heat exchangers |
| 50.8 – 114.3 | 2.5 – 6.0 | Up to 6000 mm | Power plant piping |
| Product Form | Weight Formula | Unit |
|---|---|---|
| Sheets / Plates | Thickness (mm) × Width (m) × Length (m) × 8.90 | kg / piece |
| Round Rods | Diameter² × Length × 0.00698 | kg |
| Flat Bars | Width × Thickness × Length × 0.0089 | kg |
| Tubes | (OD − WT) × WT × Length × 0.028 | kg |
