Copper Nickel Pipes & Tubes Sub-Categories
Seawater-grade CuNi tubing for marine, offshore, heat exchangers and condenser systems — engineered for corrosion resistance and reliable service.

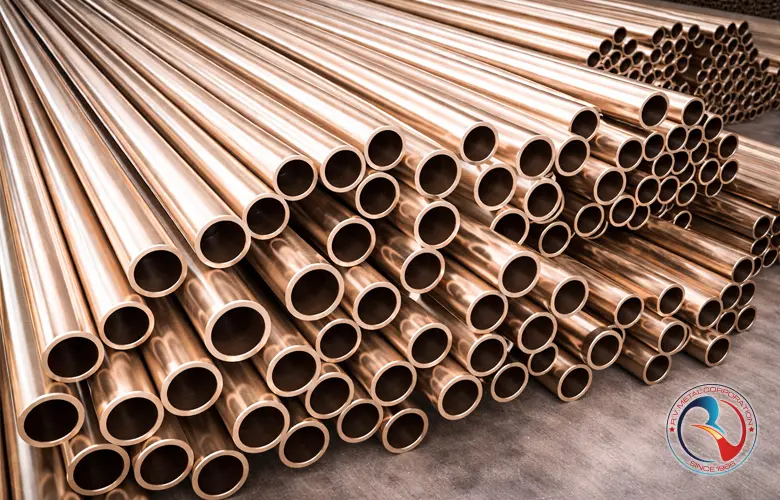

R V Metal Corporation supplies Copper Nickel (Cu-Ni) pipes and tubes in seamless and welded forms (as applicable by size and specification) for seawater cooling, shipbuilding, offshore platforms, desalination, condensers, heat exchangers and general marine engineering. Cu-Ni alloys are selected based on seawater velocity, temperature, erosion-corrosion risk, biofouling tendency, strength requirements, and fabrication needs (bending, flaring, expanding). CuNi 90/10 (UNS C70600) is widely used for seawater service with excellent corrosion resistance and workability. CuNi 70/30 (UNS C71500) offers higher strength and improved resistance in more demanding seawater conditions (higher velocities / higher erosion risk). Special Cu-Ni families (e.g., 95/5 or iron/manganese modified grades) are supplied as per customer standard and application requirements.
| Parameter | Specification |
|---|---|
| Grades (Common) |
CuNi 90/10 – UNS C70600 (seawater cooling, condensers, marine piping) CuNi 70/30 – UNS C71500 (higher strength; demanding seawater service) Also supplied: special Cu-Ni grades (e.g., 95/5 or modified Cu-Ni alloys) as per customer standard and service conditions. |
| Standards | ASTM / EN / IS supported (as applicable). Share your drawing/spec to lock chemistry, tolerances, temper and test plan. Typical ASTM families (as applicable): condenser/heat exchanger tubing and Cu-Ni pipe/tube standards. |
| Temper / Condition | Annealed (O) • Stress Relieved (SR) • As per ordered standard (availability depends on grade + size) |
| Size Range (OD) | As per order — round tubes and pipes supported. Provide OD/WT in inches (in) or millimetres (mm) and length in m/ft. |
| Units | All dimensions supported in mm and inches on drawings, MTC and packing lists |
| Testing (on request) | Dimensional checks • Eddy current (where required) • Hydro/pressure test (where specified) • Visual/surface checks • MTC |
| Element | Typical (guide) |
|---|---|
| Cu | Balance |

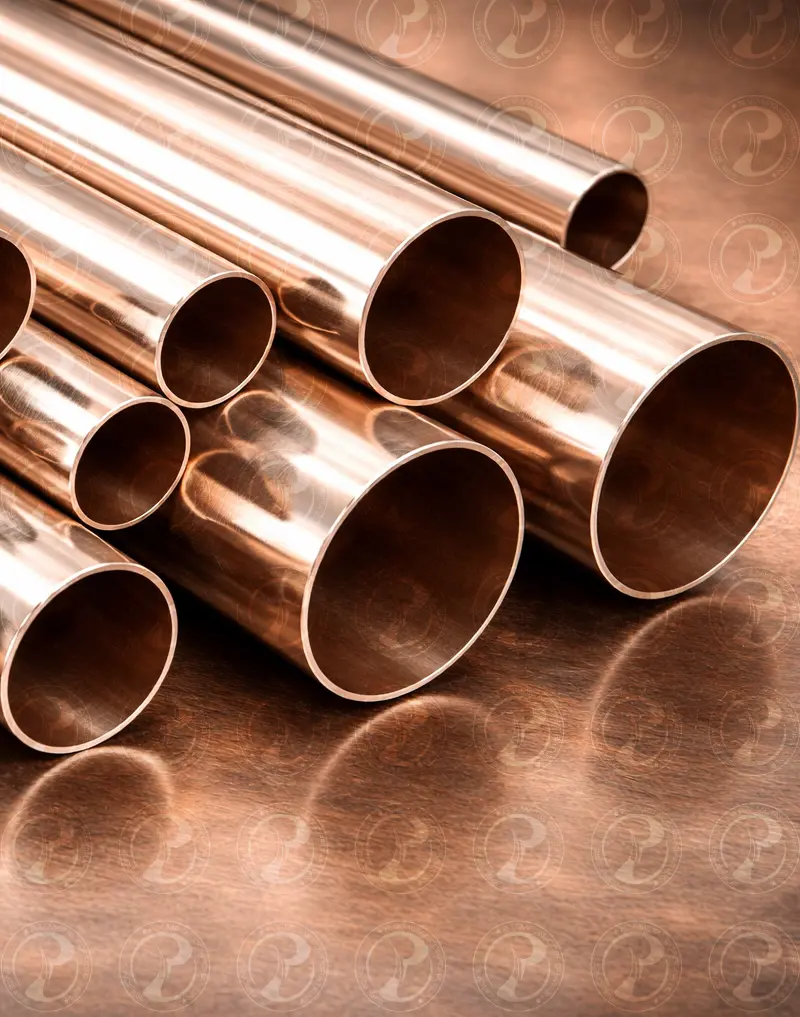

| Ni | ~ 10% |
| Fe / Mn | Small additions (grade dependent) |
| Notes | Excellent seawater corrosion resistance; widely used for marine cooling and heat exchangers. |
| Element | Typical (guide) |
|---|---|
| Cu | Balance |
| Ni | ~ 30% |
| Fe / Mn | Small additions (grade dependent) |
| Notes | Higher strength than 90/10; preferred for more demanding seawater conditions and erosion risk. |
| Type | Typical (guide) |
|---|---|
| CuNi 95/5 | Ni ~ 5% (application-specific) |
| Modified Cu-Ni | Fe/Mn tailored to service water & velocity requirements |
| Notes | Share your governing standard and service media so we can propose the correct grade and documentation. |
توفر آر ڤي ميتال كوربوريشن مجموعة متكاملة من منتجات النحاس والنحاس الأصفر والكوبرونيكل وسبائك النحاس والألمنيوم والفولاذ المقاوم للصدأ — يتم تصنيعها وتوريدها وفقًا للمعايير العالمية ASTM وEN وBS وIS.
سواء كنت تحتاج إلى أنابيب نحاس لأنظمة التكييف HVAC، أو أنظمة الغازات الطبية MGPS، أو التبريد، أو المبادلات الحرارية، أو حلول سبائك النحاس المُصممة حسب الطلب — فريقنا يرد بسرعة، ويشارك البيانات الفنية، ويقدم تسعيراً تنافسياً للتصدير إلى دول الخليج.
توريد وتصدير إلى: السعودية، الإمارات، قطر، الكويت، البحرين، عُمان.
