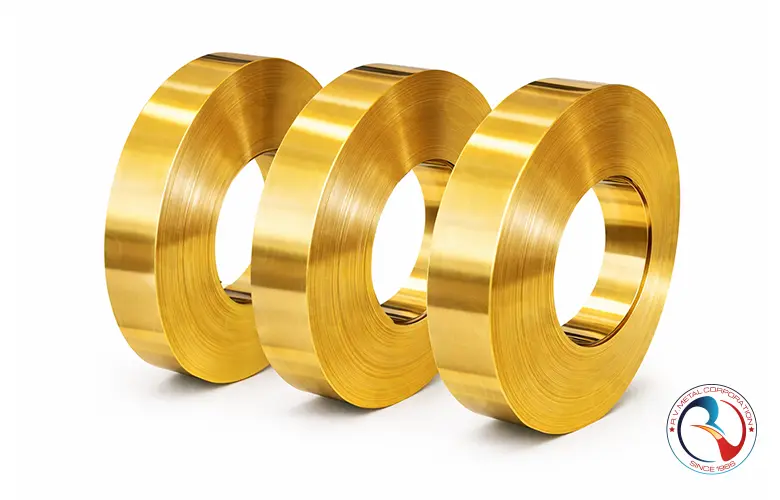

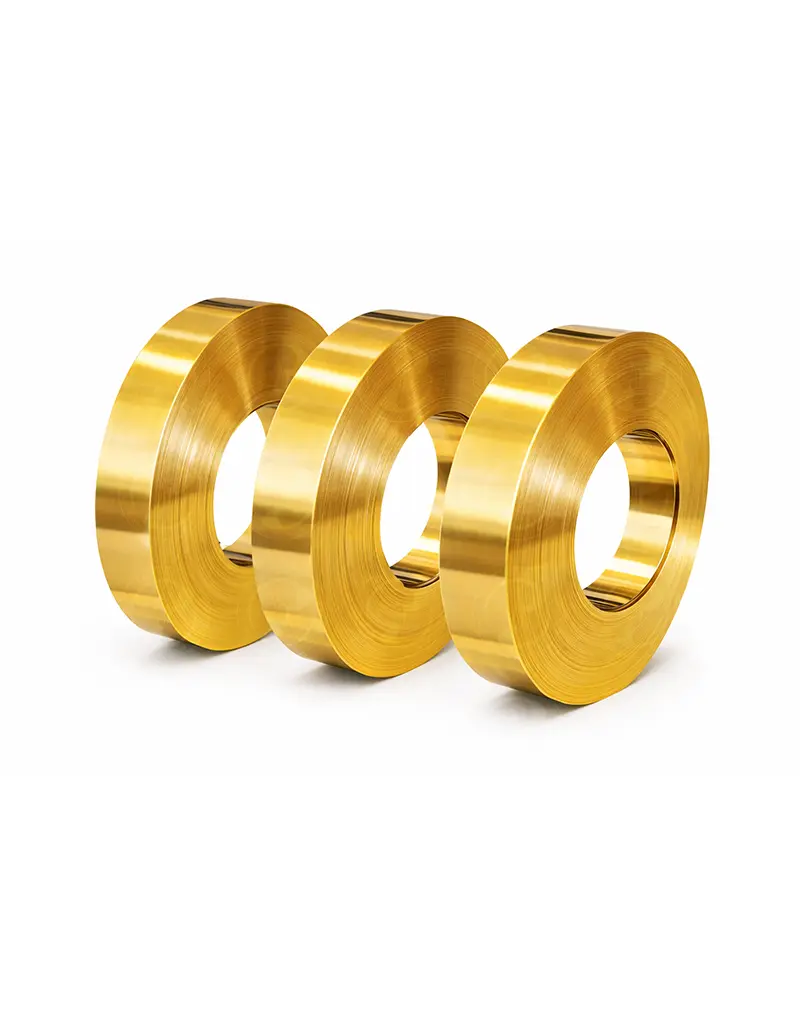

Brass Strips
Product Overview
Brass Strips manufactured and supplied by R V Metal Corporation are precision-engineered flat-rolled products available across a wide range of brass grades, thicknesses, widths, and tempers to meet diverse electrical, mechanical, decorative, and industrial requirements. Produced using high-purity copper and zinc alloys, these strips offer an excellent balance of electrical conductivity, corrosion resistance, formability, and machinability. Our brass strips are supplied in soft (annealed), half-hard, hard, and extra-hard tempers, making them suitable for deep drawing, stamping, bending, and high-strength applications. Widely used in electrical connectors, terminals, radiator fins, spring components, decorative panels, nameplates, and precision engineering parts, R V Metal Corporation’s brass strips conform to major international standards such as ASTM, EN, IS, DIN, and JIS. Consistent thickness control, smooth surface finish, tight dimensional tolerances, and reliable mechanical performance make our brass strips a trusted choice for OEMs, EPC contractors, and industrial fabricators worldwide.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Grades | CuZn30 (Cartridge Brass), CuZn37 (Common Brass), CuZn39Pb3 (Free Cutting Brass), CuZn36Pb3, CuZn40, Lead-Free Brass, DZR Brass (CW602N), Naval Brass (CuZn39Sn1) |
| Copper Content (Cu %) | 60% – 70% (Grade dependent) |
| Zinc Content (Zn %) | Balance |
| Lead Content (Pb %) | 0 – 3.5% (As per grade; Lead-free variants available) |
| Temper / Condition | Annealed (O), Half-Hard (H02), Hard (H04), Extra Hard (H08) |
| Thickness Range | 0.05 mm to 6.00 mm |
| Width Range | 10 mm to 600 mm (Slit or Full Width) |
| Form | Coils, Cut-to-Length Strips |
| Surface Finish | Mill Finish, Bright Finish, Matte Finish, Polished |
| Edge Condition | Slit Edge, Deburred Edge, Rounded Edge |
| Density | ~8.4 – 8.7 g/cm³ (Grade dependent) |
| Electrical Conductivity | 20 – 30 % IACS (Approx., Grade dependent) |
| Tensile Strength | 300 – 600 MPa (As per grade and temper) |
| Elongation | 5% – 45% (Annealed to Hard condition) |
| Standards | ASTM B36 / B134, EN 1652, EN 12163, IS 410, DIN, JIS |
| Manufacturing Process | Hot Rolled → Cold Rolled → Annealed / Temper Rolled |
| Applications Suitability | Stamping, Deep Drawing, Electrical Components, Decorative & Industrial Use |
| Customisation | Thickness, Width, Temper, Finish & Packaging as per customer requirement |
Chemical Composition
| Brass Grade | UNS / EN Designation | Copper (Cu) % | Zinc (Zn) % | Lead (Pb) % | Iron (Fe) % | Tin (Sn) % | Arsenic (As) % | Others % |
|---|---|---|---|---|---|---|---|---|
| Cartridge Brass | C26000 / CW505L | 68.5 – 71.5 | Balance | ≤ 0.07 | ≤ 0.05 | — | — | ≤ 0.10 |
| Common Brass | C27200 / CW607N | 62.0 – 65.0 | Balance | ≤ 0.10 | ≤ 0.05 | — | — | ≤ 0.10 |
| Free Cutting Brass | C36000 / CW614N | 60.5 – 63.5 | Balance | 2.5 – 3.7 | ≤ 0.35 | — | — | ≤ 0.20 |
| Low Lead Brass | C69300 / CW724R | 73.0 – 77.0 | Balance | ≤ 0.25 | ≤ 0.10 | — | — | ≤ 0.15 |
| DZR Brass | C35200 / CW602N | 60.0 – 63.0 | Balance | ≤ 0.20 | ≤ 0.10 | — | 0.02 – 0.15 | ≤ 0.20 |
| Naval Brass | C46400 / CW712R | 59.0 – 62.0 | Balance | ≤ 0.20 | ≤ 0.10 | 0.5 – 1.0 | — | ≤ 0.20 |
| Arsenic Brass | C23000 / CW502L | 84.0 – 86.0 | Balance | ≤ 0.05 | ≤ 0.05 | — | 0.02 – 0.06 | ≤ 0.10 |
| Red Brass (Low Zinc) | C23000 Variant | 85.0 – 90.0 | Balance | ≤ 0.05 | ≤ 0.05 | — | — | ≤ 0.10 |
UNS Codes & Grades
| Brass Strip Type | UNS Code | EN / DIN Grade | Common Name | Lead Content | Key Characteristics |
|---|---|---|---|---|---|
| Cartridge Brass Strip | C26000 | CW505L | 70/30 Brass | ≤ 0.07% | Excellent cold formability, deep drawing, stamping |
| Common Brass Strip | C27200 | CW607N | 63/37 Brass | ≤ 0.10% | Good strength, general-purpose forming |
| High Copper Brass Strip | C23000 | CW502L | Red Brass / 85-15 | ≤ 0.05% | High corrosion resistance, decorative finish |
| Free Cutting Brass Strip | C36000 | CW614N | Leaded Brass | 2.5 – 3.7% | Excellent machinability, electrical components |
| Low Lead Brass Strip | C69300 | CW724R | Eco / Lead-Free Brass | ≤ 0.25% | Complies with RoHS & drinking water standards |
| DZR Brass Strip | C35200 | CW602N | Dezincification Resistant Brass | ≤ 0.20% | High resistance to dezincification in water systems |
| Naval Brass Strip | C46400 | CW712R | Naval Brass | ≤ 0.20% | Seawater resistance, marine & condenser use |
| Arsenic Brass Strip | C23000 (As) | CW502L (As) | Arsenical Brass | ≤ 0.05% | Improved corrosion resistance in potable water |
Mechanical, Physical & Fabrication Properties
| Brass Grade | Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
Hardness (HV) |
Electrical Conductivity (% IACS) |
Formability | Machinability | Fabrication Notes |
|---|---|---|---|---|---|---|---|---|
| Cartridge Brass (C26000 / CW505L) | 300 – 500 | 90 – 200 | 30 – 65 | 70 – 140 | 28 | Excellent | Fair | Ideal for deep drawing, stamping, bending |
| Common Brass (C27200 / CW607N) | 350 – 550 | 120 – 250 | 25 – 50 | 90 – 160 | 26 | Very Good | Good | General-purpose forming and pressing |
| High Copper Brass (C23000 / CW502L) | 280 – 450 | 80 – 180 | 35 – 70 | 65 – 130 | 30 | Excellent | Fair | Superior corrosion resistance, decorative parts |
| Free Cutting Brass (C36000 / CW614N) | 380 – 600 | 150 – 300 | 10 – 30 | 100 – 180 | 26 | Limited | Excellent | Best for machining, not recommended for deep forming |
| Low Lead / Lead-Free Brass (C69300 / CW724R) | 400 – 650 | 200 – 350 | 15 – 35 | 110 – 190 | 25 | Good | Very Good | Used for potable water & RoHS-compliant parts |
| DZR Brass (C35200 / CW602N) | 450 – 650 | 220 – 380 | 12 – 30 | 120 – 200 | 24 | Moderate | Good | Resistant to dezincification in hot water systems |
| Naval Brass (C46400 / CW712R) | 480 – 680 | 250 – 400 | 10 – 25 | 130 – 210 | 23 | Moderate | Good | Excellent seawater and marine corrosion resistance |
Common Names & International Identifiers
| Brass Strip Grade / Family | Common / Trade Names | UNS / ASTM (USA) | EN / DIN (Europe) | ISO / International Designation | JIS (Japan) | IS (India) Reference | Typical Market Identification |
|---|---|---|---|---|---|---|---|
| Cartridge Brass (70/30) | Cartridge Brass, 70/30 Brass, Deep Drawing Brass | C26000 | CW505L (CuZn30) | CuZn30 | C2600 | IS 410 (CuZn30 / CuZn31 equivalent used) | Stamped parts, drawn cups, electrical connectors |
| Common Brass (63/37) | Common Brass, 63/37 Brass, Yellow Brass, General Purpose Brass | C27200 | CW508L (CuZn37) | CuZn37 | C2720 | IS 410 / IS 407 (CuZn37 equivalent family) | Architectural strips, general fabrication, hardware |
| High Copper Brass (85/15) | Red Brass Strip (trade usage), Gilding Metal (high-Cu family), 85/15 Brass | C23000 | CW502L (CuZn15) | CuZn15 | C2300 | IS 410 (high copper brass family equivalence) | Decorative strip, corrosion-resistant strip, forming |
| Gilding Metal (95/5) | Gilding Metal, 95/5 Brass, Decorative Brass | C21000 | CW501L (CuZn5) | CuZn5 | C2100 | IS 410 (CuZn5 family usage) | Decor, name plates, medallions, fine stamping |
| Free Cutting Brass (Lead Brass) | Free Cutting Brass, Machining Brass, Screw Machine Brass | C36000 | CW614N (CuZn39Pb3) | CuZn39Pb3 | C3604 | IS 319 (Leaded Brass) | Precision machined parts, inserts, turned components |
| Leaded Brass (Higher Lead Family) | Leaded Brass, Turning Brass, High Machinability Brass | C35300 / C35400 (family) | CW617N (CuZn40Pb2) | CuZn40Pb2 | C3771 / C3501 (family) | IS 319 (Leaded Brass family) | Machined valve parts, plumbing components (non-RoHS) |
| Lead-Free Brass (Eco / RoHS) | Lead-Free Brass, Eco Brass, Low-Lead Brass | C69300 | CW724R (CuZn21Si3P) | CuZn21Si3P | — (varies by maker) | IS references vary (low-lead / lead-free compliance driven) | Potable water parts, RoHS/REACH compliant fittings |
| DZR Brass (Dezincification Resistant) | DZR Brass, DR Brass, Anti-Dezinc Brass | (Commonly specified by EN grade) | CW602N (CuZn36Pb2As) | CuZn36Pb2As | — | (Used where dezinc resistance is required) | Hot water plumbing, valves, aggressive water zones |
| Naval Brass | Naval Brass, Marine Brass | C46400 | CW712R (CuZn39Sn1) | CuZn39Sn1 | — | (Marine brass family references) | Marine hardware, seawater corrosion resistant strip |
| Admiralty Brass | Admiralty Brass, Condenser Brass | C44300 | CW103 (CuZn28Sn1As) / nearest EN family usage | CuZn28Sn1As | — | (Condenser brass family references) | Heat exchangers, condenser plates, seawater systems |
Standards & International Equivalents
| Brass Strip Grade / Family | UNS (Copper Alloy) | ASTM (USA) Common Product Standards | EN (Europe) Alloy | EN (Europe) Product Standard | DIN / Legacy Reference | JIS (Japan) | IS (India) Typical Reference | Notes (Selection Guidance) |
|---|---|---|---|---|---|---|---|---|
| Gilding Metal (CuZn5) | C21000 | ASTM B36/B36M (Brass Plate, Sheet, Strip, Rolled Bar) | CW501L (CuZn5) | EN 1652 (Copper & copper alloys – Plate, sheet, strip for general purposes) | DIN 17660 / DIN 17671 (legacy reference) | JIS H 3100 (C2100) | IS 410 (Brass plate/sheet/strip – alloy family reference) | High copper; best for decorative strip & fine stamping. |
| High Copper Brass (CuZn15) | C23000 | ASTM B36/B36M | CW502L (CuZn15) | EN 1652 | DIN legacy reference | JIS H 3100 (C2300) | IS 410 (alloy family reference) | Good corrosion resistance + formability; common for decorative/industrial strip. |
| Cartridge Brass (CuZn30 / 70-30) | C26000 | ASTM B36/B36M | CW505L (CuZn30) | EN 1652 | DIN 17660/17671 (legacy) | JIS H 3100 (C2600) | IS 410 (alloy family reference) | Deep drawing / stamping grade. Standard choice for electrical & press parts. |
| Common Brass (CuZn37 / 63-37) | C27200 | ASTM B36/B36M | CW508L (CuZn37) | EN 1652 | DIN 17660/17671 (legacy) | JIS H 3100 (C2720) | IS 410 / IS 407 (application dependent) | General purpose strip for fabrication, architectural and hardware. |
| Free Cutting / Leaded Brass (CuZn39Pb3) | C36000 | ASTM B36/B36M (strip/rolled forms) / ASTM B16 (free-cutting brass rod, bar & shapes) | CW614N (CuZn39Pb3) | EN 1652 (strip) / EN 12164/12167 (bars/rods, when applicable) | DIN 17660/17671 (legacy) / DIN 17671 | JIS H 3250 / JIS H 3100 (family) | IS 319 (Leaded brass) + product standard as per supply form | Used mainly for machining; confirm lead limits for RoHS/REACH projects. |
| Leaded Brass (CuZn40Pb2 family) | C35300 / C35400 (family) | ASTM B36/B36M (strip) / ASTM B16 (bars/rods/shapes) | CW617N (CuZn40Pb2) | EN 1652 (strip) / EN 12164/12167 (where applicable) | DIN legacy reference | JIS alloy family reference | IS 319 (Leaded brass family) | Good machinability; not preferred for potable water compliance markets. |
| DZR Brass (Dezincification Resistant) | (Commonly specified by EN grade) | (Often project-specified; verify by application & form) | CW602N (CuZn36Pb2As) | EN 1652 (strip, if supplied) / Application-driven approvals | DIN legacy reference | (Project-specific) | (Project-specific; plumbing/water authorities) | DZR is performance-driven; insist on DZR test requirement in PO. |
| Lead-Free / Eco Brass (Si-brass) | C69300 | (Commonly specified by alloy + compliance; verify product standard per form) | CW724R (CuZn21Si3P) | EN 1652 (strip, where applicable) + compliance requirements | DIN legacy reference | (Varies) | (Compliance-driven; specify max Pb as required) | Use for RoHS/REACH & potable-water requirements; confirm certification needs. |
| Naval Brass (CuZn39Sn1) | C46400 | ASTM B36/B36M (sheet/strip family) / ASTM B171 (naval brass plate, sheet & strip) | CW712R (CuZn39Sn1) | EN 1652 | DIN legacy reference | (Marine-grade equivalents, project-based) | (Marine/defence specs as required) | Use for marine corrosion resistance; confirm seawater exposure requirements. |
| Admiralty Brass (Condenser Brass) | C44300 | ASTM B111 (condenser tubes) / ASTM B171 (plate, sheet & strip where applicable) | (Commonly specified by condenser/brass family; EN alloy varies by buyer) | EN 1652 (strip, where applicable) | DIN legacy reference | (Project-specific) | (Project-specific) | Admiralty is often purchased for heat-transfer duty; verify end-use form and spec. |
Applications
| Brass Strip Grade / Alloy Family | Typical Applications | Why This Grade Is Chosen | Notes (Engineer / EPC Checklist) |
|---|---|---|---|
| Gilding Metal (CuZn5) – UNS C21000 / EN CW501L | Decorative trims, nameplates, medals/badges, fine stampings, luxury hardware covers, architectural inlays, embossing & engraving sheets/strips | Highest copper content → excellent formability, deep embossing response, superior surface finish. | Best for appearance-critical parts; specify finish/temper to avoid waviness during stamping. |
| High Copper Brass (CuZn15) – UNS C23000 / EN CW502L | Electrical connectors (non-high-current), terminals & clips, lamp parts, radiator & HVAC accessories, general presswork, decorative-industrial hybrid components | Good corrosion resistance + better strength than CuZn5 while retaining strong formability. | Good “balanced” grade for stamping; confirm conductivity requirement if electrical use is critical. |
| Cartridge Brass (CuZn30 / 70-30) – UNS C26000 / EN CW505L | Deep-drawn components, electrical terminals, switchgear parts, transformer & motor accessories, ammunition components, press-fit parts, washers & spacers, HVAC fittings stampings | Industry standard for deep drawing and stamping with reliable ductility and consistent grain structure. | Specify grain/temper for deep draw (Earing control); confirm surface condition for plating. |
| Common Brass (CuZn37 / 63-37) – UNS C27200 / EN CW508L | General-purpose strip for fabrication, hinges, brackets, clips, architectural strips, ornamental fittings, low-stress mechanical parts, general hardware & fastener components | Cost-effective general brass with good workability and moderate strength. | Not a “deep-draw specialist” like CuZn30; for tight forming radii specify annealed temper. |
| Free Cutting / Leaded Brass (CuZn39Pb3) – UNS C36000 / EN CW614N | Machined components from strip blanks, precision parts requiring turning, inserts, threaded electrical/mechanical parts, watch/clock hardware, instrument parts | Lead improves machinability, chip break, tool life → faster cycle time on CNC. | Lead is a compliance risk (RoHS/REACH / potable water). Do not use unless allowed in project specs. |
| Leaded Brass (CuZn40Pb2 family) – EN CW617N / UNS family | Plumbing & sanitary component blanks (where lead is permitted), valve parts, machined fittings, general turned parts, industrial connectors | High machinability + good hot workability for fitting/valve manufacturing routes. | Prefer lead-free alternatives for export plumbing; specify lead max limits if required. |
| DZR Brass (Dezincification Resistant) – EN CW602N (common) | Potable water / plumbing parts in aggressive water, valve & faucet components, plumbing connectors, marine plumbing fittings, heat/corrosion exposed water systems | Designed to resist dezincification in chloride/low-alkalinity water → longer service life. | DZR is not just “chemistry” — specify DZR test/acceptance requirement in PO (critical for consultants). |
| Lead-Free / Eco Brass (Si-brass) – UNS C69300 / EN CW724R | RoHS/REACH compliant plumbing & water-contact parts, EV/energy connector components, sustainable hardware, premium sanitary parts, export-grade fittings & connectors | Low/near-zero lead + good strength/corrosion performance; compliance-friendly for global projects. | Confirm certification requirements (potable-water approvals are project/region specific). |
| Naval Brass (CuZn39Sn1) – UNS C46400 / EN CW712R | Marine hardware strip parts, shipbuilding components, corrosion-resistant fittings, offshore equipment components, marine electrical/mechanical parts | Tin addition improves seawater corrosion resistance and dezincification resistance vs standard brass. | Specify service environment (seawater/splash zone) and temper to control stress cracking risk. |
| Admiralty Brass (Condenser Brass) – UNS C44300 (common condenser family) | Heat exchanger & condenser-related strip components, tube-sheet accessories, marine/industrial heat-transfer support parts, cooling-water system components | Traditionally used for heat-transfer duties with improved corrosion resistance in certain waters. | Often specified by end-use standard; confirm whether buyer needs tube spec (B111) or strip spec. |
Standard Brass Strips Dimensional Chart
| Brass Strips – Standard Dimensional Range (Supply Capability) | ||||
|---|---|---|---|---|
| Parameter | Standard Range | Typical Options | Form | Notes (EPC / Consultant Grade) |
| Thickness (t) | 0.05 mm to 5.00 mm | 0.10, 0.20, 0.30, 0.50, 0.80, 1.00, 1.20, 1.50, 2.00, 3.00 mm | Coil / Cut-to-length | For deep drawing & stamping, specify temper + thickness tolerance in PO. |
| Width (w) | 5 mm to 610 mm | 10–300 mm most common | Coil / Sheet strips | Slit edges: Deburred / Rounded / Mill edge (as requested). |
| Length | Cut lengths up to 3000 mm (typical) | 500 / 1000 / 2000 mm | Cut-to-length | Flatness requirement must be defined if used on automatic presses. |
| Coil ID | 200 / 300 / 400 / 500 mm (typical) | As per slitting line & customer decoiler | Coil | Wrong coil ID = unusable for customer decoiler. Always confirm. |
| Coil OD | Up to ~1200 mm (typical) | Depends on thickness/width & coil weight | Coil | Transport limitation; define max OD / max coil weight in PO. |
| Temper | O / H02 / H04 / H06 / H08 (as applicable) | Soft / Half-hard / Hard | Coil / CTL | Temper drives springback, bend radius, stamping performance. |
| Surface | Mill finish / Bright / Buffed | Oiled / Dry / Paper interleaf | Coil / CTL | For plating: specify low-oxide finish + packaging to avoid staining. |
| Brass Strips – Theoretical Weight Chart | ||||
|---|---|---|---|---|
| Thickness (mm) | kg/m² @ ρ = 8.50 g/cm³ | kg per meter length @ 100 mm width | kg per meter length @ 25 mm width | kg per meter length @ 300 mm width |
| 0.10 | 0.85 | 0.085 | 0.021 | 0.255 |
| 0.20 | 1.70 | 0.170 | 0.043 | 0.510 |
| 0.30 | 2.55 | 0.255 | 0.064 | 0.765 |
| 0.50 | 4.25 | 0.425 | 0.106 | 1.275 |
| 0.80 | 6.80 | 0.680 | 0.170 | 2.040 |
| 1.00 | 8.50 | 0.850 | 0.213 | 2.550 |
| 1.20 | 10.20 | 1.020 | 0.255 | 3.060 |
| 1.50 | 12.75 | 1.275 | 0.319 | 3.825 |
| 2.00 | 17.00 | 1.700 | 0.425 | 5.100 |
| 3.00 | 25.50 | 2.550 | 0.638 | 7.650 |
| 4.00 | 34.00 | 3.400 | 0.850 | 10.200 |
| 5.00 | 42.50 | 4.250 | 1.063 | 12.750 |
Weight Calculation (Theoretical):
Weight (kg/m) = t(mm) × w(mm) × ρ(g/cm³) × 0.001
Using ρ = 8.50 g/cm³ for brass strips.
Important:
Weight (kg/m) = t(mm) × w(mm) × ρ(g/cm³) × 0.001
Using ρ = 8.50 g/cm³ for brass strips.
Important:
- Actual density varies by brass grade (Zn/Pb/Sn/Si content). For EPC bids, treat this as theoretical only.
- If weight tolerance is contract-critical, lock density (ρ) and thickness tolerance in the purchase order.
