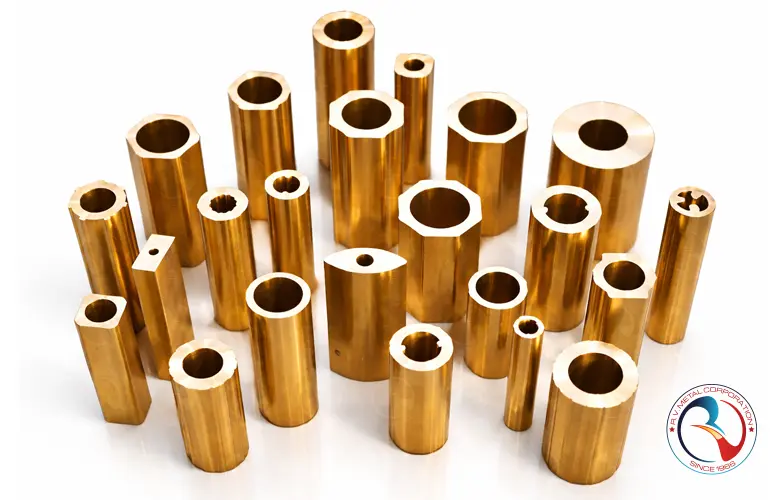

Extruded Brass Rods
Product Overview
Extruded Brass Rods offered by R V Metal Corporation are precision-engineered semi-finished products manufactured through controlled hot extrusion processes to achieve superior dimensional accuracy, uniform grain structure, and excellent surface finish. These rods are produced using carefully selected brass alloys, including free-cutting, high-tensile, and forging grades, ensuring consistent mechanical performance and high machinability. Extruded brass rods provide enhanced strength, improved concentricity, and tight tolerances compared to conventional cast or rolled products, making them ideal for high-volume CNC machining, forging, and critical engineering components. Widely used across electrical, plumbing, automotive, hardware, and industrial manufacturing sectors, R V Metal Corporation’s extruded brass rods deliver reliable performance, reduced material wastage, and predictable machining behavior, meeting the expectations of OEMs, EPC contractors, and precision component manufacturers.
Technical Specifications
| Parameter | Free Cutting Brass (CuZn39Pb3) |
High Tensile Brass (CuZn40Mn2Pb) |
Forging Brass (CuZn40Pb2) |
Naval Brass (CuZn39Sn1) |
Leaded Brass (CuZn38Pb2) |
Lead-Free Brass (CW510L / CW724R) |
|---|---|---|---|---|---|---|
| UNS / EN Grade | C36000 / CW614N | C67300 / CW713R | C37700 / CW617N | C46400 / CW712R | C35300 / CW602N | C27450 / CW510L, CW724R |
| Copper Content (%) | 57 – 61 | 58 – 62 | 58 – 60 | 59 – 62 | 60 – 63 | 75 – 85 |
| Zinc Content (%) | 35 – 40 | 35 – 39 | 38 – 40 | 37 – 40 | 35 – 38 | Balance |
| Alloying Elements | Pb 2.5–3.7% | Mn, Pb | Pb ≤ 2.5% | Sn ~1% | Pb ~2% | Si / Al (Lead-free) |
| Manufacturing Process | Hot Extrusion with Controlled Cooling | |||||
| Available Shapes | Round, Square, Hexagonal, Flat, Custom Profiles | |||||
| Diameter / AF Range | 5 mm to 150 mm (custom sizes on request) | |||||
| Standard Lengths | 3 m, 4 m, 5 m, 6 m or Cut-to-Length | |||||
| Temper Condition | Soft (O), Half-Hard (H02), Hard (H04 / H08) | |||||
| Tensile Strength (MPa) | 330 – 420 | 450 – 650 | 350 – 480 | 380 – 520 | 350 – 450 | 400 – 600 |
| Yield Strength (MPa) | 95 – 180 | 200 – 350 | 140 – 260 | 160 – 280 | 130 – 240 | 250 – 400 |
| Elongation (%) | 20 – 30 | 10 – 18 | 18 – 25 | 18 – 25 | 20 – 28 | 15 – 30 |
| Hardness (HB) | 90 – 140 | 130 – 180 | 100 – 150 | 110 – 160 | 95 – 145 | 120 – 190 |
| Machinability | Excellent (★★★★★) | Good (★★★★☆) | Good (★★★★☆) | Moderate (★★★☆☆) | Very Good (★★★★☆) | Moderate (★★★☆☆) |
| Corrosion Resistance | Moderate | Good | Moderate | Excellent (Marine) | Moderate | Excellent (Potable Water) |
| Typical Applications | Precision Machining Parts | High-Load Components | Hot Forged Fittings | Marine & Heat Exchangers | Plumbing & Valves | Drinking Water & Sanitary |
| Applicable Standards | ASTM B16 / B453, EN 12164, IS 319, DIN, JIS | |||||
Chemical Composition
| Brass Grade / Alloy | Standard / Designation | UNS | Cu % | Zn % | Pb % | Sn % | Fe % | Al % | Mn % | Ni % | Si % | As % | Other / Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Cutting Brass | EN CW614N (CuZn39Pb3) | C36000 | 57.0–61.0 | Balance | 2.5–3.7 | ≤0.3 | ≤0.35 | ≤0.05 | ≤0.30 | ≤0.30 | ≤0.10 | ≤0.02 | Best machinability |
| Forging Brass (Hot Forging) | EN CW617N (CuZn40Pb2) | C37700 | 57.0–59.0 | Balance | 1.6–2.5 | ≤0.30 | ≤0.30 | ≤0.05 | ≤0.20 | ≤0.30 | ≤0.10 | ≤0.02 | Most common for forged fittings |
| Leaded Brass (DZR-friendly base family) | EN CW602N (CuZn36Pb2As) | C35300 | 60.0–63.0 | Balance | 1.6–2.5 | ≤0.30 | ≤0.30 | ≤0.05 | ≤0.20 | ≤0.30 | ≤0.10 | 0.02–0.15 | As helps dezincification resistance |
| DZR Brass | EN CW602N / CW626N (DZR) | C35330 / C35200* | 60.0–63.0 | Balance | 1.6–2.5 | ≤0.30 | ≤0.30 | ≤0.05 | ≤0.20 | ≤0.30 | ≤0.10 | 0.02–0.15 | *UNS varies by exact DZR route; confirm per project spec |
| Cartridge Brass | EN CW505L (CuZn30) | C26000 | 68.5–71.5 | Balance | ≤0.07 | ≤0.10 | ≤0.05 | ≤0.02 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.02 | Deep drawing / forming grade |
| Common Brass 63/37 | EN CW508L (CuZn37) | C27200 | 62.0–65.0 | Balance | ≤0.08 | ≤0.10 | ≤0.05 | ≤0.02 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.02 | General purpose extrusion / forming |
| Naval Brass | EN CW712R (CuZn39Sn1) | C46400 | 60.0–63.0 | Balance | ≤0.10 | 0.6–1.2 | ≤0.10 | ≤0.05 | ≤0.20 | ≤0.50 | ≤0.10 | ≤0.02 | Marine corrosion resistance |
| Admiralty Brass | Admiralty (CuZn28Sn1As) | C44300 | 70.0–73.0 | Balance | ≤0.05 | 0.9–1.2 | ≤0.06 | ≤0.02 | ≤0.05 | ≤0.20 | ≤0.10 | 0.02–0.06 | Condenser / heat exchanger tubes |
| Aluminium Brass | Al-Brass (CuZn20Al2As) | C68700 | 76.0–79.0 | Balance | ≤0.05 | ≤0.10 | ≤0.06 | 1.8–2.5 | ≤0.10 | ≤0.20 | ≤0.10 | 0.02–0.10 | Sea-water service / biofouling resistance |
| Arsenic Brass | CuZnAs (Dezincification resistant family) | Varies | 60.0–63.0 | Balance | 0.5–2.5 | ≤0.30 | ≤0.30 | ≤0.05 | ≤0.20 | ≤0.30 | ≤0.10 | 0.02–0.15 | Specify exact CW/UNS per project (CW602N / CW626N most common) |
| Lead-Free Brass (Low-lead) | EN CW510L (CuZn42) | C27450 | 57.0–59.0 | Balance | ≤0.10 | ≤0.20 | ≤0.20 | ≤0.05 | ≤0.30 | ≤0.30 | ≤0.10 | ≤0.02 | Low-lead general engineering brass |
| Lead-Free Brass (Eco / Si-brass family) | EN CW724R (CuZn21Si3P) | C69300 | 76.0–79.0 | Balance | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.05 | ≤0.10 | ≤0.20 | 2.5–3.5 | ≤0.02 | Typical for potable water; P present in small controlled amount |
| High Tensile Brass | EN CW713R / CW721R (Mn-brass family) | C67300 / C67500* | 58.0–62.0 | Balance | 0.5–2.0 | ≤0.30 | ≤0.30 | ≤0.05 | 1.0–3.0 | ≤0.50 | ≤0.10 | ≤0.02 | *Exact UNS depends on Mn/Al/Ni additions; freeze per customer drawing/spec |
| Red Brass (Copper-rich brass/bronze family) | Red Brass (85-5-5-5 family) | C83600* | 83.0–87.0 | 3.0–7.0 | 3.0–6.0 | 3.0–6.0 | ≤0.30 | ≤0.05 | ≤0.30 | ≤0.50 | ≤0.10 | ≤0.02 | *Commonly supplied as cast; extruded availability depends on mill route |
NOTE: Chemical composition ranges shown above are typical industry limits used for procurement and datasheets.
Exact limits can vary by the selected standard (ASTM / EN / IS), temper, product form, and customer specification.
For EPC/consultant submittals, freeze the exact grade (e.g., CW614N vs CW617N vs CW602N) and we will issue the final composition limits accordingly.
UNS Codes & Grades
| Brass Rod Grade (Common Name) | EN Grade / Material No. | UNS Code | Typical Designation | Key Feature | Typical Rod Use | Availability (Extruded Forms) |
|---|---|---|---|---|---|---|
| Free Cutting Brass Rod | CW614N (CuZn39Pb3) | C36000 | High-machinability leaded brass | Best machinability, fast cycle times | Turned parts, inserts, electrical parts, screws | Round / Hex / Square / Flats |
| Free Cutting Brass Rod (Alternative) | CW617N (CuZn40Pb2) | C37700 | Hot-forging + machining brass | Good machining + good hot workability | Valves, forged fittings, plumbing bodies | Round / Hex / Square / Flats |
| Cartridge Brass Rod | CW505L (CuZn30) | C26000 | Cartridge brass | Excellent cold forming / bending | Deep-drawn parts, formed components | Round / Flats / Sections |
| Common Brass Rod 63/37 | CW508L (CuZn37) | C27200 | General purpose brass | Balanced strength + formability | General extrusions, hardware, profiles | Round / Flats / Sections |
| Lead-Free Brass Rod (Low-lead) | CW510L (CuZn42) | C27450 | Low-lead brass | Lower Pb for compliance applications | Fittings, plumbing components, general parts | Round / Hex / Square / Flats |
| DZR Brass Rod (Dezincification Resistant) | CW602N (CuZn36Pb2As) | C35300 | DZR brass | Resists dezincification in aggressive water | Potable-water fittings, valves, plumbing parts | Round / Hex / Square |
| DZR Brass Rod (Low-lead DZR) | CW626N (DZR family) | Varies* | DZR (low-lead route) | DZR performance with lower Pb options | Water-contact parts, regulated plumbing | Round / Hex / Square |
| Naval Brass Rod | CW712R (CuZn39Sn1) | C46400 | Naval brass | Improved seawater corrosion resistance | Marine hardware, fasteners, shipbuilding | Round / Hex / Flats |
| Admiralty Brass (Tube Alloy; limited as rod) | Admiralty (CuZn28Sn1As) | C44300 | Condenser brass | Good seawater resistance, anti-dezincification | Heat exchanger service (mostly tubes) | Rod supply: on request |
| Aluminium Brass (Tube Alloy; limited as rod) | Al-Brass (CuZn20Al2As) | C68700 | Aluminium brass | Sea-water service / biofouling resistance | Condenser service (mostly tubes) | Rod supply: on request |
| Lead-Free Eco Brass (Silicon Brass) | CW724R (CuZn21Si3P) | C69300 | Lead-free potable-water brass | Lead-free compliance, good corrosion behavior | Potable-water fittings, valves, manifolds | Round / Hex / Profiles |
| High Tensile Brass Rod (Mn-brass family) | CW713R / CW721R (Mn brass) | C67300 / C67500* | High strength brass | Higher tensile + wear resistance | Heavy-duty mechanical parts, marine components | Round / Hex / Flats |
| Red Brass (Copper-rich brass/bronze family) | Red Brass family | C83600* | Cu-rich brass | Good corrosion resistance, good casting family | Plumbing bodies, marine parts (often cast) | Extruded rods: on request |
NOTE: “All available grades” depends on the exact customer specification and compliance need (potable water / DZR / lead-free / machining).
Some alloys listed (e.g., Admiralty / Aluminium Brass / Red Brass) are most common as tubes or cast products and are supplied as extruded rods on request only.
For EPC/consultant submittals, finalize the grade + standard (EN/ASTM/IS) and we will lock the correct UNS/material number for the mill test certificate.
Mechanical, Physical & Fabrication Properties
| Grade / Family (Extruded Rod) | Temper / Condition | Tensile Strength (MPa) | 0.2% Proof / Yield (MPa) | Elongation (%) | Hardness (HB) | Conductivity (%IACS) | Machinability (C360 = 100) | Hot Workability / Forging | Cold Forming | Brazing / Soldering | Corrosion Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CW614N / C36000 Free Cutting Brass (CuZn39Pb3) |
H02 / H04 (drawn) | 350 – 550 | 200 – 380 | 8 – 20 | 90 – 170 | 24 – 28 | 100 | Fair (Pb limits hot ductility) | Poor–Fair | Good (use proper flux; avoid Pb smear) | General service; not for potable water compliance |
| CW617N / C37700 Forging + Machining Brass (CuZn40Pb2) |
H02 / H04 | 330 – 520 | 180 – 340 | 10 – 25 | 80 – 155 | 23 – 28 | 70 – 85 | Excellent (preferred forging brass) | Fair | Good | Good for fittings; specify DZR for aggressive waters |
| CW508L / C27200 Common Brass (CuZn37) |
O / H02 / H04 | 300 – 500 | 120 – 320 | 12 – 35 | 70 – 140 | 27 – 33 | 20 – 40 | Good | Good (better than leaded grades) | Very good | General purpose; watch dezincification risk in hot chloride water |
| CW505L / C26000 Cartridge Brass (CuZn30) |
O / H02 | 280 – 480 | 100 – 300 | 20 – 45 | 60 – 130 | 28 – 35 | 10 – 30 | Good | Excellent (best cold formability) | Excellent | Good corrosion behavior; used where forming dominates |
| CW602N / C35300 DZR Brass (CuZn36Pb2As) |
H02 / H04 | 400 – 650 | 220 – 450 | 8 – 20 | 110 – 190 | 22 – 28 | 60 – 80 | Good | Fair | Good | DZR: resists dezincification (hot potable / brackish water) |
| CW626N DZR (low-lead route; grade-specific) |
H02 / H04 | 420 – 680 | 240 – 480 | 8 – 18 | 115 – 200 | 22 – 28 | 50 – 75 | Good | Fair | Good | DZR performance; confirm exact chemistry per EN order |
| CW724R / C69300 Lead-Free Silicon Brass (Eco Brass) |
As-extruded / H02 | 450 – 750 | 250 – 520 | 8 – 18 | 130 – 220 | 12 – 20 | 60 – 90 | Good | Fair | Good (control heat to avoid brittle phases) | Lead-free potable-water choice; excellent stress-corrosion resistance when specified correctly |
| CW712R / C46400 Naval Brass (CuZn39Sn1) |
H02 / H04 | 380 – 620 | 180 – 420 | 10 – 25 | 95 – 180 | 18 – 25 | 30 – 50 | Good | Fair | Very good | Marine: improved seawater resistance vs common brass |
| High Tensile Brass (Mn-brass family) (e.g., C67300/C67500 family*) |
H02 / H04 | 550 – 850 | 300 – 650 | 6 – 15 | 160 – 260 | 12 – 20 | 20 – 45 | Good | Poor–Fair | Good | High strength; specify for heavy duty mechanical/marine hardware |
| Lead-Free / Low-lead General Brass (CuZn42 family; grade-specific) |
O / H02 / H04 | 320 – 560 | 140 – 360 | 12 – 30 | 75 – 165 | 23 – 33 | 25 – 55 | Good | Good | Excellent | Used where Pb must be reduced; confirm compliance requirement |
| Admiralty / Aluminium Brass (typically tube alloys; rods on request) |
Grade-dependent | — | — | — | — | — | — | — | — | — | Mostly supplied as condenser/heat-exchanger tubes; rod properties depend on exact melt + condition |
NOTE (Read this carefully): The values above are typical industry ranges for extruded brass rods and vary by
standard (EN/ASTM/IS), exact chemistry limits, diameter, extrusion ratio, heat treatment, and temper (O/H02/H04/H08).
If you publish “single-point” numbers without the governing standard/temper, you’ll look unprofessional to EPC/consultant reviewers.
For a bid/submittal-grade sheet, specify the exact grade (EN material no. + UNS) and temper; R V Metal Corporation can then issue MTC-backed limits.
Common Names & International Identifiers
| Common / Trade Name | UNS Designation | EN / DIN Designation | IS / Indian Std | Typical Composition Family | Industry Description / Identifier |
|---|---|---|---|---|---|
| Free Cutting Brass | C36000 | CW614N | IS 319 Type I | CuZn39Pb3 | High machinability brass for CNC, turned components |
| Leaded Brass | C38500 | CW603N | IS 319 Type II | CuZn39Pb2 | General machining brass with balanced strength |
| Forging Brass | C37700 | CW617N | IS 319 Type III | CuZn40Pb2 | Hot forging & machining grade for valves, fittings |
| Common Brass | C27200 | CW508L | IS 319 Type IV | CuZn37 | General-purpose brass for extrusion & forming |
| Cartridge Brass | C26000 | CW505L | IS 319 Type V | CuZn30 | High ductility brass for deep drawing & forming |
| DZR Brass | C35300 | CW602N | IS 319 (DZR) | CuZn36Pb2As | Dezincification-resistant brass for potable water |
| DZR Low-Lead Brass | — | CW626N | IS 319 (DZR LL) | CuZn36As (low Pb) | Eco/DZR brass meeting modern plumbing norms |
| Eco Brass / Silicon Brass | C69300 | CW724R | IS 4413 (Pb-free) | CuZnSi | Lead-free brass for potable water & green projects |
| Naval Brass | C46400 | CW712R | IS 291 | CuZn39Sn1 | Marine-grade brass with enhanced corrosion resistance |
| High Tensile Brass | C67300 / C67500 | CW713R / CW715R | IS 407 | CuZnMn | High-strength brass for mechanical & marine use |
| Low Lead Brass | C27450 / C27400 | CW511L / CW510L | IS 319 (LL) | CuZn (Pb ≤ 0.5%) | Reduced-lead brass for regulatory compliance |
| Extrusion Brass (General) | — | CW606N | IS 319 | CuZn40 | Optimized brass for smooth extrusion profiles |
| Arsenical Brass | C26130 | CW504L + As | IS 319 (As) | CuZn + As | Improved dezincification resistance (legacy use) |
Standards & International Equivalents
| Brass Grade / Type | UNS (USA) | EN / DIN (Europe) | IS (India) | BS (UK) | JIS (Japan) | ISO / Other Equivalents |
|---|---|---|---|---|---|---|
| Free Cutting Brass | C36000 | CW614N (EN 12164) | IS 319 Type I | BS CZ121 | JIS C3604 | ISO CuZn39Pb3 |
| Leaded Brass | C38500 | CW603N (EN 12164) | IS 319 Type II | BS CZ124 | JIS C3602 | ISO CuZn39Pb2 |
| Forging Brass | C37700 | CW617N (EN 12164) | IS 319 Type III | BS CZ122 | JIS C3771 | ISO CuZn40Pb2 |
| Common Brass (63/37) | C27200 | CW508L (EN 12164) | IS 319 Type IV | BS CZ108 | JIS C2720 | ISO CuZn37 |
| Cartridge Brass (70/30) | C26000 | CW505L (EN 12164) | IS 319 Type V | BS CZ106 | JIS C2600 | ISO CuZn30 |
| DZR Brass | C35300 | CW602N (EN 12164) | IS 319 (DZR) | BS CZ132 | JIS C3531 | ISO CuZn36Pb2As |
| DZR Low Lead Brass | — | CW626N (EN 12164) | IS 319 (Low Pb DZR) | BS CZ132 (LL) | — | ISO CuZn36As |
| Eco / Silicon Brass (Lead Free) | C69300 | CW724R (EN 12164) | IS 4413 | — | — | ISO CuZn21Si3P |
| Naval Brass | C46400 | CW712R (EN 12164) | IS 291 | BS CZ112 | JIS C4641 | ISO CuZn39Sn1 |
| High Tensile Brass | C67300 / C67500 | CW713R / CW715R | IS 407 | BS CZ114 | — | ISO CuZnMn |
| Extrusion Brass (General Purpose) | — | CW606N (EN 12164) | IS 319 | — | — | ISO CuZn40 |
| Arsenical Brass | C26130 | CW504L + As | IS 319 (As) | — | — | ISO CuZn + As |
Applications
| Brass Grade / Type | Typical Applications | Why This Grade (Key Value) | Common Industries |
|---|---|---|---|
| Free Cutting Brass (Leaded Machining Brass) | High-speed turned parts, CNC components, nozzles, hose nipples, unions, connectors, electrical terminals, instrument parts | Excellent machinability, clean chip break, tight tolerances, good surface finish | Electrical, Plumbing, Hardware, Instrumentation, Automotive (non-safety) |
| Leaded Brass (General Machining Brass) | Valve stems, glands, threaded inserts, bushings, couplings, cable glands, lock components | Good machinability + balanced strength/ductility for threaded parts | Plumbing, Valves, General Engineering, Electrical Accessories |
| Forging Brass (Hot Forging Grades) | Hot forged valve bodies, tap bodies, plumbing fittings blanks, LPG/CNG fittings, manifolds, heavy-duty connectors | Excellent hot workability, strong after forging, pressure-part reliability | Plumbing, Gas, Firefighting, Industrial Valves & Fittings |
| Common Brass 63/37 (CuZn37) | Architectural fittings, decorative parts, lamp components, light-duty hardware, general fabrication parts | Good formability and adequate strength, economical for general use | Furniture, Lighting, Sheet Metal Fabrication, Hardware |
| Cartridge Brass 70/30 (CuZn30) | Deep-drawn components, spun parts, press-formed parts, radiator/tube accessories, craft & decorative turned parts | Superior ductility and cold formability; good corrosion resistance | Electrical, Decorative, HVAC Accessories, General Fabrication |
| DZR Brass (Dezincification Resistant Brass) | Potable water valves, faucets, meter parts, marine plumbing parts, hot-water service fittings, high chloride environments | High resistance to dezincification; long life in aggressive waters | Water Supply, Plumbing, Marine, Utilities, Fire Protection |
| Lead-Free Brass (Eco Brass / Silicon Brass) | Drinking-water fittings, food-contact components, sanitary fittings, medical gas accessories (non-critical), green building projects | Low/zero lead compliance; good corrosion resistance and strength | Potable Water, Food & Beverage, Healthcare, Green Building |
| Naval Brass (CuZn39Sn1) | Marine hardware, seawater fittings, condenser accessories, propeller shaft hardware, shipboard fasteners & connectors | Improved seawater corrosion resistance due to tin addition | Marine, Shipbuilding, Offshore, Heat Exchanger Support Parts |
| Admiralty Brass (Condenser Brass) | Condenser and heat exchanger parts, tube sheets accessories, cooling-water fittings, desalination support components | Good corrosion resistance in brackish water; stable performance in heat transfer systems | Power Plants, Refineries, Marine Cooling, Sugar & Process |
| Aluminium Brass | High-velocity seawater condenser components, heat exchanger accessories, marine cooling fittings | Excellent seawater erosion-corrosion resistance (Al improves protective film) | Marine, Offshore, Power, Desalination, Process Industry |
| Arsenical Brass (Anti-Dezincification Brass) | Plumbing components exposed to aggressive waters, hot water fittings, pump parts, valve parts (select services) | Arsenic improves dezincification resistance (grade-dependent) | Plumbing, Water Handling, Pumps & Valves |
| Red Brass / Gunmetal-Type Copper Alloy Rods (where specified) | Valve parts, pump components, bushings, marine fittings, wear parts | Higher copper improves corrosion resistance and toughness (note: not “brass” but often requested in same basket) | Marine, Valves, Pumps, Heavy Engineering |
| High Tensile Brass (HTB / Manganese Brass) | High-load components, heavy-duty fasteners, shafts, high-strength connectors, gear blanks, structural hardware | Higher strength and wear resistance than standard brasses | Automotive, Marine Hardware, Heavy Engineering |
| Custom / OEM Brass Extrusions (Profiles, Hex, Square, Flats) | Electrical connectors, switchgear parts, transformer hardware, architectural sections, automation parts, precision spacers | Near-net shapes reduce machining time and scrap; consistent dimensions for assembly lines | Electrical, OEM Manufacturing, Construction, Industrial Automation |
Standard Extruded Brass Rods Dimensional Chart
| Extruded Brass Rods – Standard Dimensional Chart & Theoretical Weight (kg/m) | |||||
|---|---|---|---|---|---|
| Form | Size (Across / Dia) | Size in mm | Area (mm²) | Theoretical Weight (kg/m) | Applicable Brass Grades (Typical) |
| Round Rod | Ø 6 | 6 | 28.27 | 0.25 | Free Cutting / Leaded / Forging Brass / CuZn37 / CuZn30 / DZR / Lead-Free / Naval / Admiralty / Aluminium Brass / HT Brass (as per grade availability) |
| Ø 8 | 8 | 50.27 | 0.44 | ||
| Ø 10 | 10 | 78.54 | 0.69 | ||
| Ø 12 | 12 | 113.10 | 0.99 | ||
| Ø 16 | 16 | 201.06 | 1.77 | ||
| Ø 20 | 20 | 314.16 | 2.77 | ||
| Ø 25 | 25 | 490.87 | 4.32 | ||
| Ø 30 | 30 | 706.86 | 6.22 | ||
| Ø 35 | 35 | 962.11 | 8.47 | ||
| Ø 40 | 40 | 1256.64 | 11.06 | ||
| Ø 50 | 50 | 1963.50 | 17.28 | ||
| Ø 60 | 60 | 2827.43 | 24.89 | ||
| Hex Bar | AF 10 | 10 | 64.95 | 0.57 | Free Cutting / Leaded / Lead-Free / DZR / CuZn37 / CuZn30 / HT Brass (as per order) |
| AF 12 | 12 | 93.53 | 0.82 | ||
| AF 14 | 14 | 127.30 | 1.12 | ||
| AF 17 | 17 | 187.68 | 1.65 | ||
| AF 19 | 19 | 234.34 | 2.06 | ||
| AF 22 | 22 | 313.97 | 2.76 | ||
| AF 24 | 24 | 373.62 | 3.29 | ||
| AF 27 | 27 | 472.97 | 4.16 | ||
| AF 30 | 30 | 584.57 | 5.15 | ||
| AF 36 | 36 | 841.78 | 7.41 | ||
| Square Bar | 10 × 10 | 10 × 10 | 100 | 0.88 | Free Cutting / Leaded / CuZn37 / CuZn30 / Lead-Free / DZR (as required) |
| 12 × 12 | 12 × 12 | 144 | 1.27 | ||
| 16 × 16 | 16 × 16 | 256 | 2.25 | ||
| 20 × 20 | 20 × 20 | 400 | 3.52 | ||
| 25 × 25 | 25 × 25 | 625 | 5.50 | ||
| 30 × 30 | 30 × 30 | 900 | 7.92 | ||
| 35 × 35 | 35 × 35 | 1225 | 10.78 | ||
| 40 × 40 | 40 × 40 | 1600 | 14.08 | ||
| 50 × 50 | 50 × 50 | 2500 | 22.00 | ||
| 60 × 60 | 60 × 60 | 3600 | 31.68 | ||
| Flat Bar | 20 × 3 | 20 × 3 | 60 | 0.53 | CuZn37 / CuZn30 / Free Cutting / Lead-Free / DZR (as per application) |
| 25 × 3 | 25 × 3 | 75 | 0.66 | ||
| 25 × 5 | 25 × 5 | 125 | 1.10 | ||
| 30 × 5 | 30 × 5 | 150 | 1.32 | ||
| 40 × 5 | 40 × 5 | 200 | 1.76 | ||
| 40 × 10 | 40 × 10 | 400 | 3.52 | ||
| 50 × 6 | 50 × 6 | 300 | 2.64 | ||
| 50 × 10 | 50 × 10 | 500 | 4.40 | ||
| 60 × 10 | 60 × 10 | 600 | 5.28 | ||
| 80 × 10 | 80 × 10 | 800 | 7.04 | ||
| Note (Theoretical Weight Calculation) |
|---|
| Theoretical weight values are calculated using: Weight (kg/m) = Area (mm²) × Density × 10-6. For brass extrusions, a practical design density range is 8.40 – 8.60 g/cm³. The values above are calculated at 8.50 g/cm³ (8,500 kg/m³) and are for reference only. Actual weight may vary with alloy composition, dimensional tolerances, surface finish, and production method. |
